Floor Scales · QC-SS

QC-SS Floor Scale

The Stainless Steel Quick Clean Floor Scale revolutionizes sanitation protocols in food processing, pharmaceutical, and chemical environments. Designed to eliminate the hidden traps where bacteria and debris accumulate, this scale…

Request a Quote View Specifications

Available capacities: 500KG ~ 3T
Manufacturing options: OEM / ODM

QC-SS Floor Scale · View 1

01 / 09

Select a view. Click the main image to enlarge.

A closer look at the product.

Review the construction and operating features for your application.

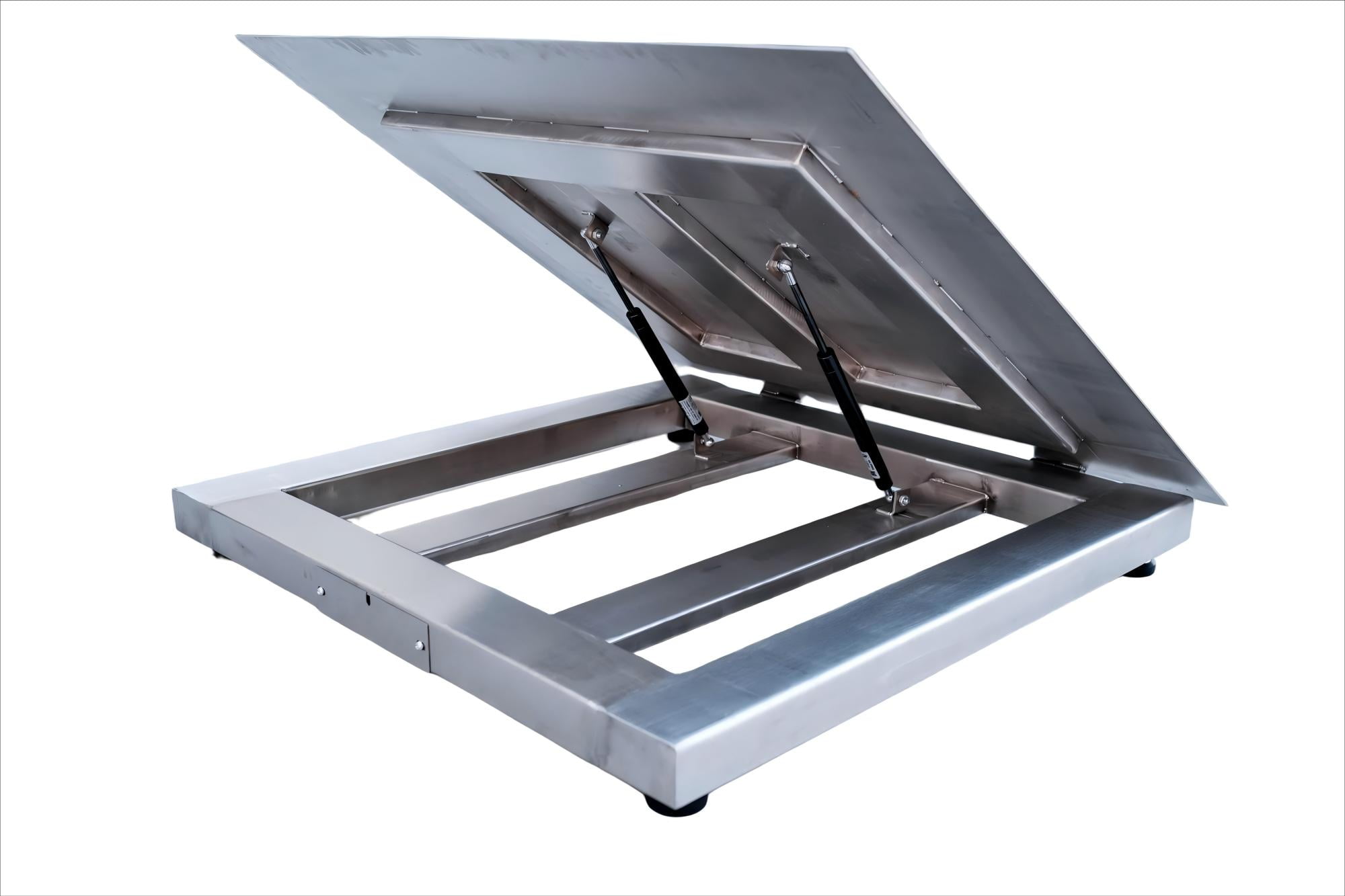

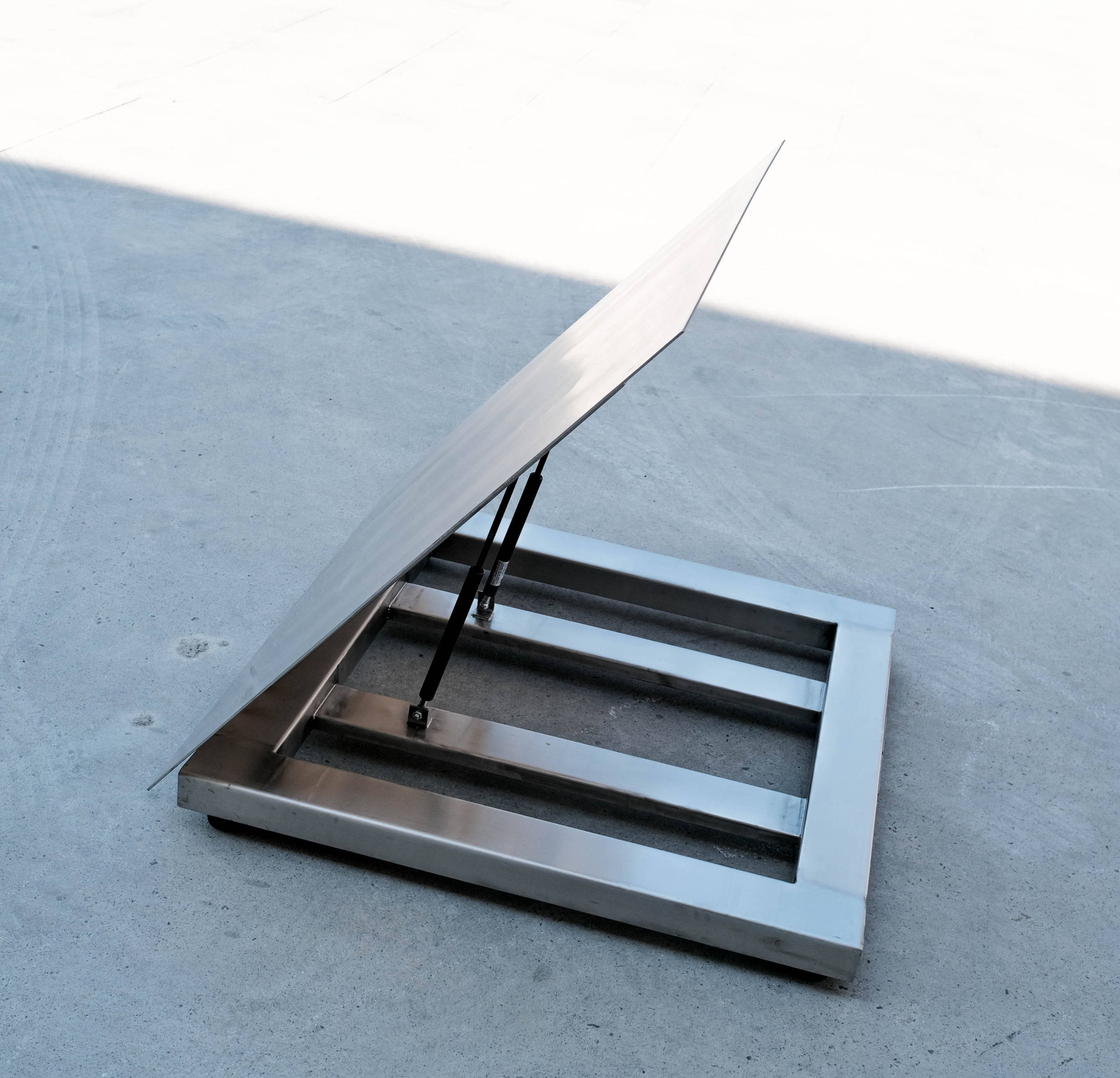

Easy-Lift Gas Shock Deck

Equipped with heavy-duty gas struts or hydraulic cylinders, the top deck lifts smoothly and safely with minimal effort, exposing the entire sub-frame and floor for rapid, thorough washdowns.

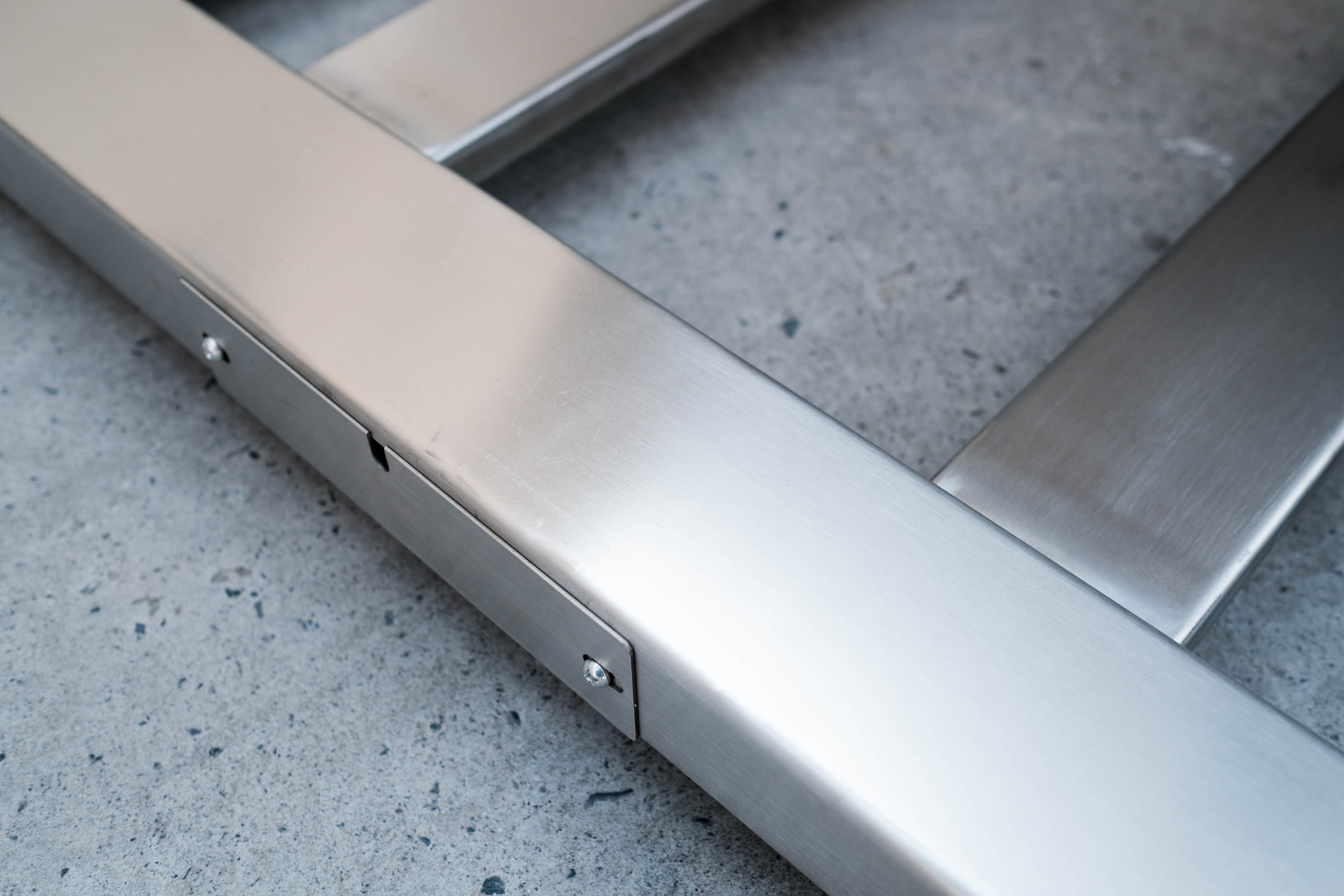

Sanitary Open-Frame Architecture

Unlike traditional closed-channel scales, the understructure is designed without hollow tubes or hidden corners, preventing water pooling and bacterial growth while allowing for complete visual inspection.

IP69K/IP68 Rated Protection

Built to withstand high-temperature, high-pressure washdowns, both the stainless steel load cells and junction box are hermetically sealed, guaranteeing reliability in the harshest sanitary environments.

For your daily workflowTraffic LogisticsFood ProcessingChemical Explosion Proof

Configure your equipment

Choose your configuration.

Select the requirements you would like to discuss. Add dimensions, quantity and working conditions to your inquiry.

Required capacity

Platform size

Final capacity, dimensions and component selection are confirmed together for your application.

Select your requirements above.

Add to My Inquiry HENER product catalogueExplore the complete product range · PDF

Technical specifications
Platform Size	1000 × 1000 mm / 1200 × 1200 mm / 1500 × 1500 mm / Customized
Capacity	500 KG / 1T / 2T / 3T
Accuracy Class	OIML III
Platform Material	Stainless Steel (6mm thickness)
Surface Finish	Polished
Structure	Indicator & Scale Platform Separated
Display	LED
Power Supply	AC Power (110-220V), Built-in Rechargeable Battery
Operating Temperature	-10°C ~ +40°C
Basic Functions	Tare, Zero, Accumulate, Unit Conversion, Counting
Optional Features	Printer, RS232/RS485 Interface, Bluetooth/Wi-Fi, Remote Display
Calibration	Factory Calibrated
