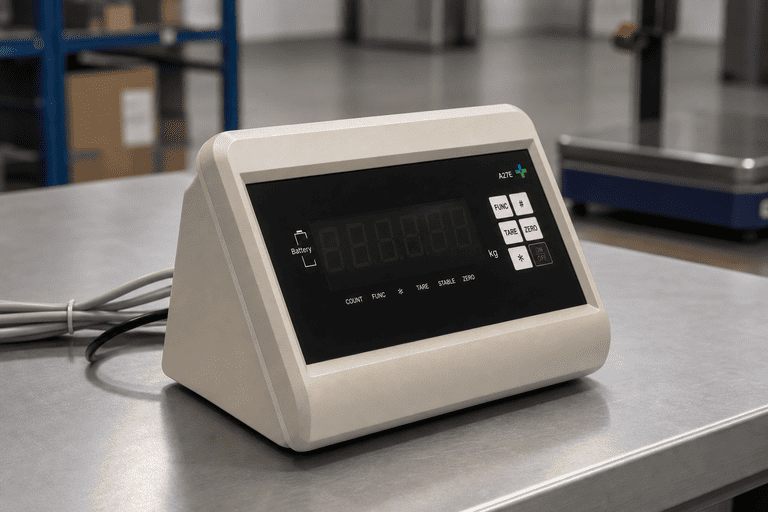

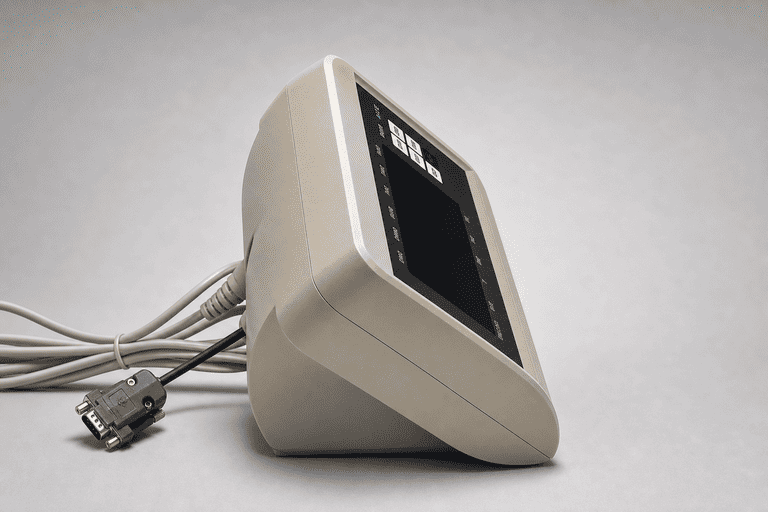

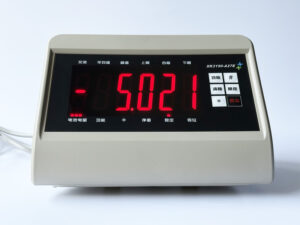

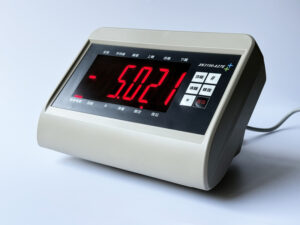

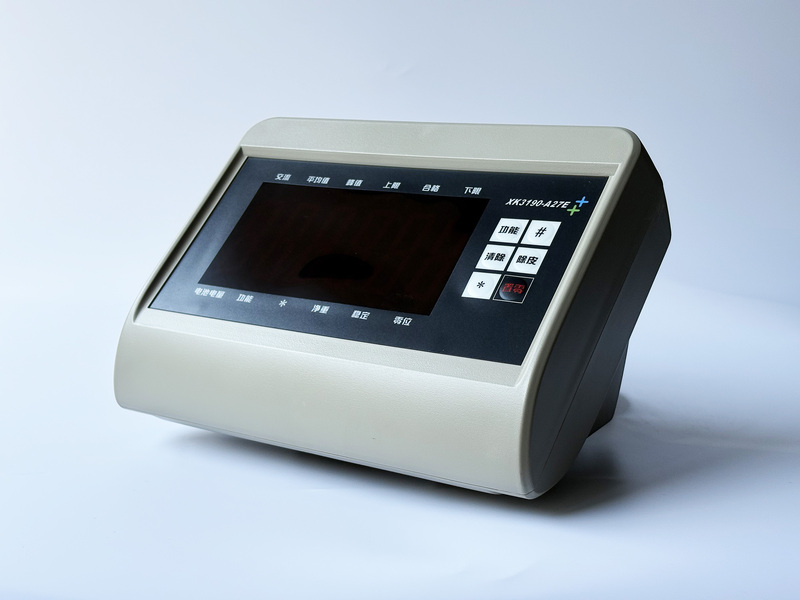

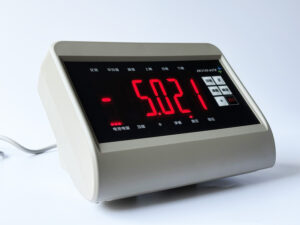

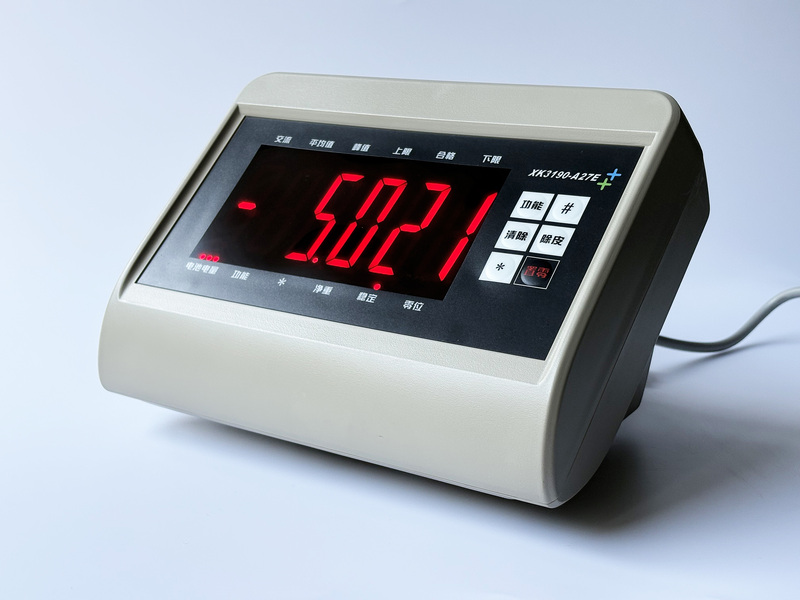

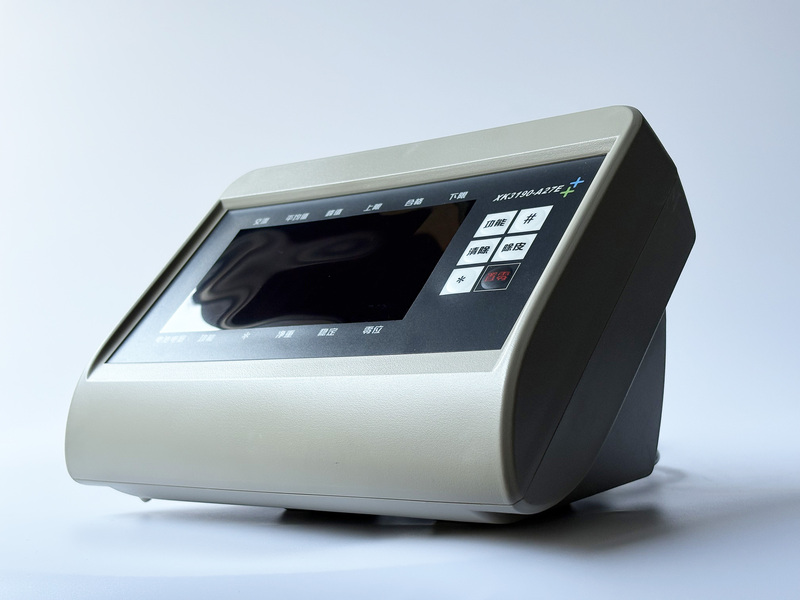

A27E Weighing Indicator

Explore Yaohua Indicator specifications and connection requirements for your weighing application.

A27E · View 1

01 / 06

Select a view. Click the main image to enlarge.

From weight to useful information.

Review the display, operating functions and connections that bring weighing data into your workflow.

Single-window 2 inch high-brightness LED display

RS232; 20 mA loop. Confirm the required interface in your configuration.

Peak hold / Average display / Manual/automatic accumulation / High/OK/low checkweighing alarm / Preset tare

For your daily workflowBench ScaleFloor Scale

Configure your equipment

Select your communication and application requirements. We can discuss the functions and configuration your system needs.

Required communication

Application

Final specifications, connections and configuration are confirmed together for your application.

Select your requirements above.

Technical specifications
Model & display
Model	A27E
Brand	Yaohua

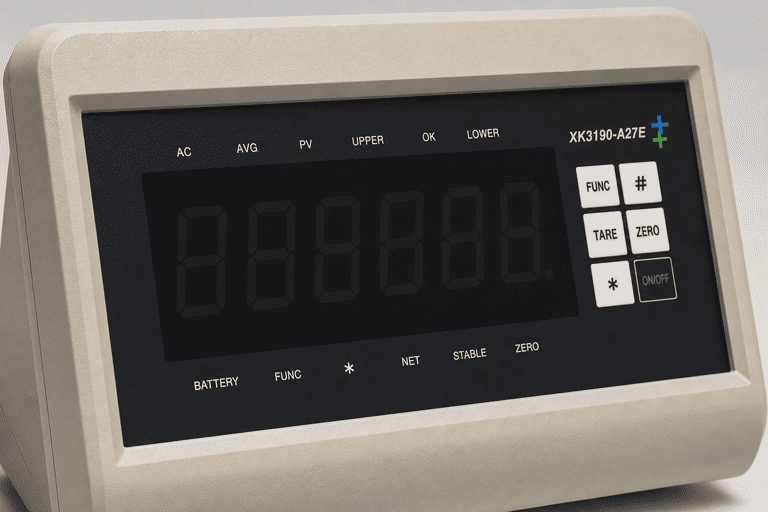

Display	Single-window 2 inch high-brightness LED display
Housing	Industrial Housing
Input & communication
Signal input	-19 mV to 19 mV
Load cell support	1 to 4 x 350 ohm load cells
Excitation voltage	DC 5 V
Measurement rate	10 measurements/s

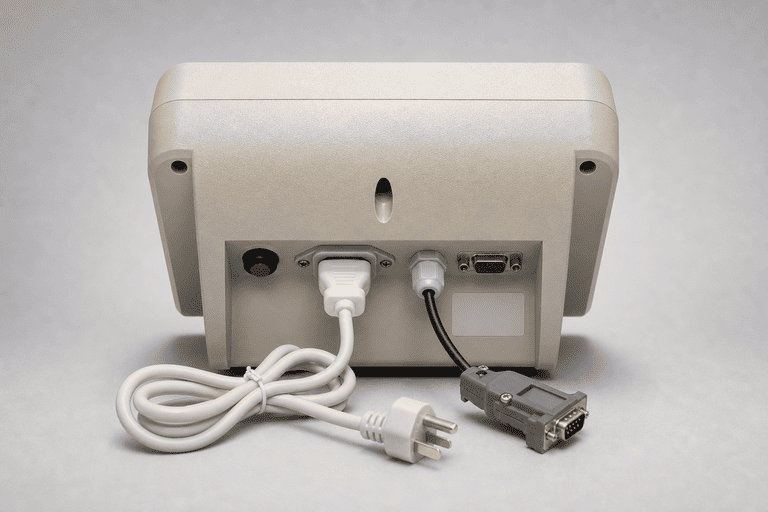

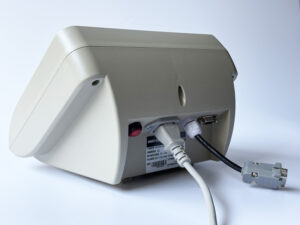

Communication	RS232; 20 mA loop
Power & operation
Power supply	AC 220 V
Battery	Built-in DC 6 V / 4 Ah rechargeable battery
Printer / version	External printer support
Key functions	Peak hold / Average display / Manual/automatic accumulation / High/OK/low checkweighing alarm / Preset tare
Optional expansion	Remote display interface / RS232 serial devices
