Floor Scales · HR-CS-G

HR-CS Floor Scale Grey

The HR-CS Floor Scale (Grey) combines industrial strength with a sleek, professional aesthetic, making it the ideal weighing solution for warehouses, distribution centers, and production floors. Featuring a neutral grey…

Request a Quote View Specifications

Available capacities: 500KG ~ 5T
Manufacturing options: OEM / ODM

HR-CS Floor Scale Grey · View 1

01 / 06

Select a view. Click the main image to enlarge.

A closer look at the product.

Review the construction and operating features for your application.

Industrial Grey Powder Coat

The high-quality grey finish provides a clean, neutral look that hides dust and footprints better than darker scales, while offering strong protection against rust and wear.

High-Capacity Precision

Powered by four premium alloy steel shear beam load cells, this platform delivers dependable accuracy even when loads are placed off-center, ensuring every shipment is weighed correctly.

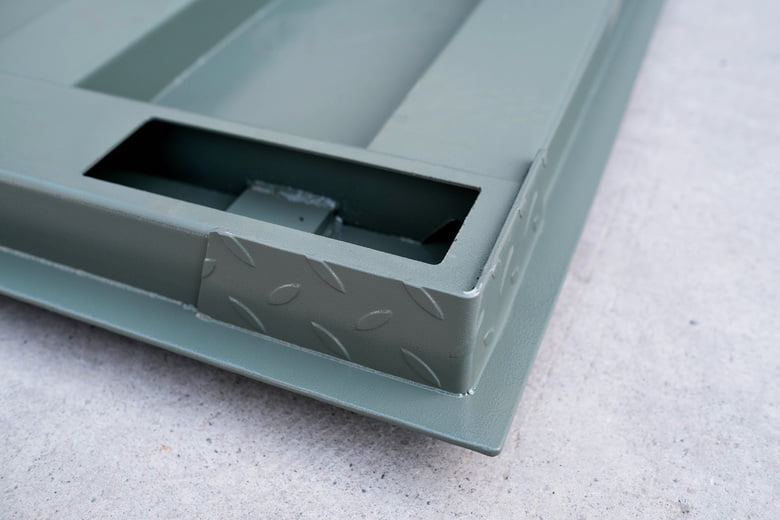

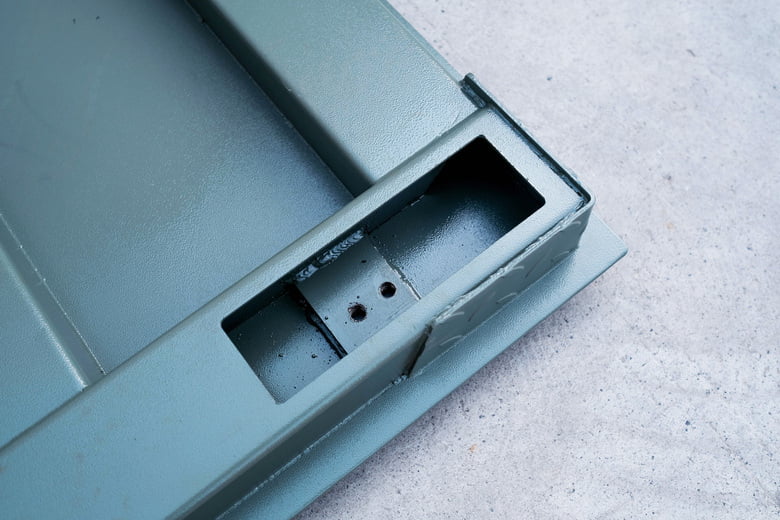

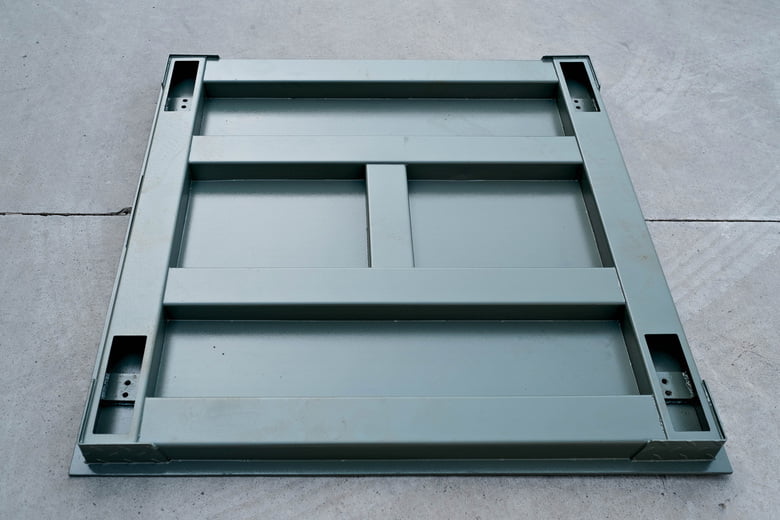

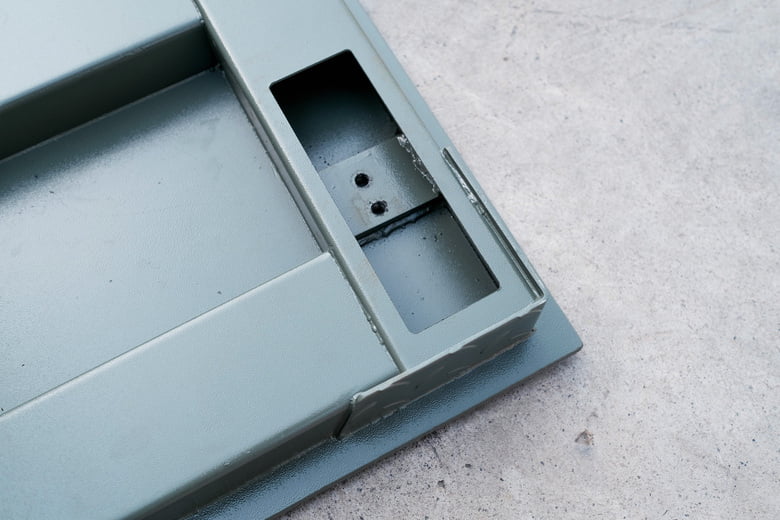

Heavy-Duty Channel Frame

Underlying the diamond-plate deck is a reinforced steel channel frame that prevents deck deflection under heavy loads, ensuring structural integrity and long-term durability.

For your daily workflowTraffic LogisticsFood ProcessingChemical Explosion Proof

Configure your equipment

Choose your configuration.

Select the requirements you would like to discuss. Add dimensions, quantity and working conditions to your inquiry.

Required capacity

Platform size

Final capacity, dimensions and component selection are confirmed together for your application.

Select your requirements above.

Add to My Inquiry HENER product catalogueExplore the complete product range · PDF

Technical specifications
Platform Size	1000 × 1000 mm/1200 × 1200 mm/1500 × 1500 mm/Customized
Capacity	500 kg / 1T / 2T / 3T / 5T / Customized
Accuracy Class	OIML III
Platform Material	Carbon Steel (6mm thickness)
Surface Finish	Painted
Structure	Indicator & Scale Platform Separated
Display	LCD
Power Supply	AC Power (110-220V), Built-in Rechargeable Battery
Operating Temperature	-10°C ~ +40°C
Basic Functions	Tare, Zero, Accumulate, Unit Conversion, Counting
Optional Features	Ramp, Printer, RS232/RS485 Interface, Bluetooth/Wi-Fi, Remote Display
Calibration	Factory Calibrated
