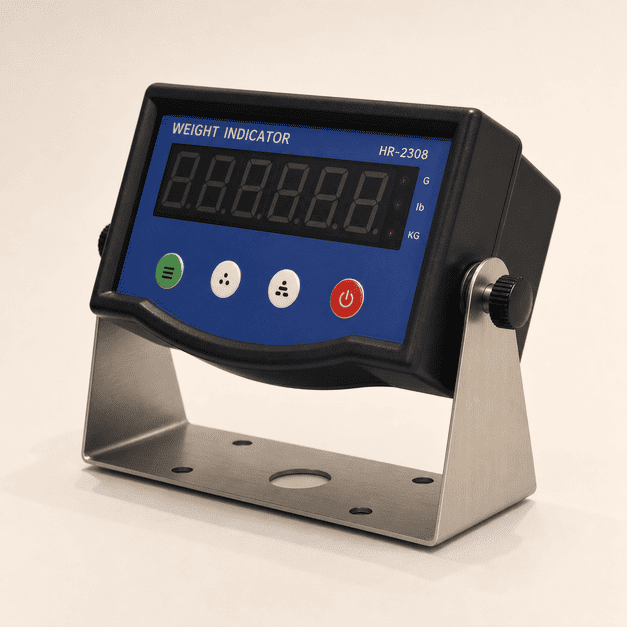

HR2308 Weighing Indicator

Explore HENER Indicator specifications and connection requirements for your weighing application.

HR2308 · View 1

01 / 05

Select a view. Click the main image to enlarge.

From weight to useful information.

Review the display, operating functions and connections that bring weighing data into your workflow.

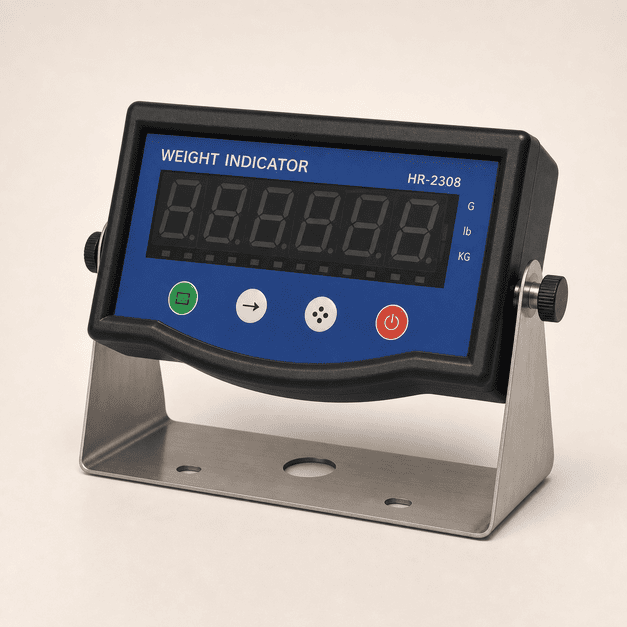

1 inch dual-color LED display

Wireless; IR remote. Confirm the required interface in your configuration.

Weight accumulation / Storage of last 10 records / Kg/lb switching / Counting / Infrared remote operation

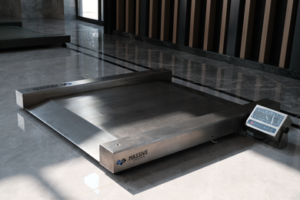

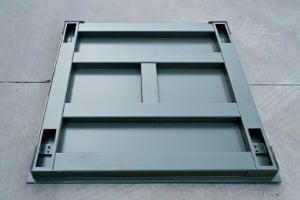

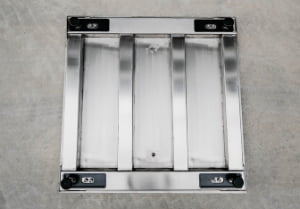

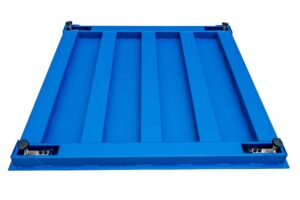

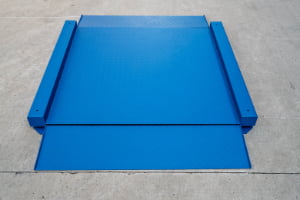

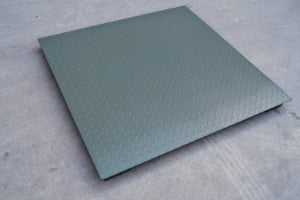

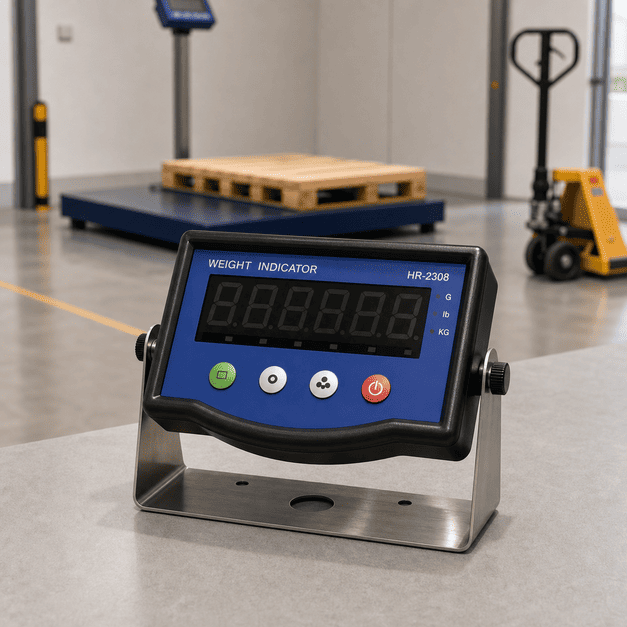

For your daily workflowBench ScaleFloor ScalePallet Jack scale

Configure your equipment

Select your communication and application requirements. We can discuss the functions and configuration your system needs.

Required communication

Application

Final specifications, connections and configuration are confirmed together for your application.

Select your requirements above.

Technical specifications
Model & display
Model	HR2308
Brand	HENER
Display	1 inch dual-color LED display
Housing	Indicator housing for platform/forklift scale applications

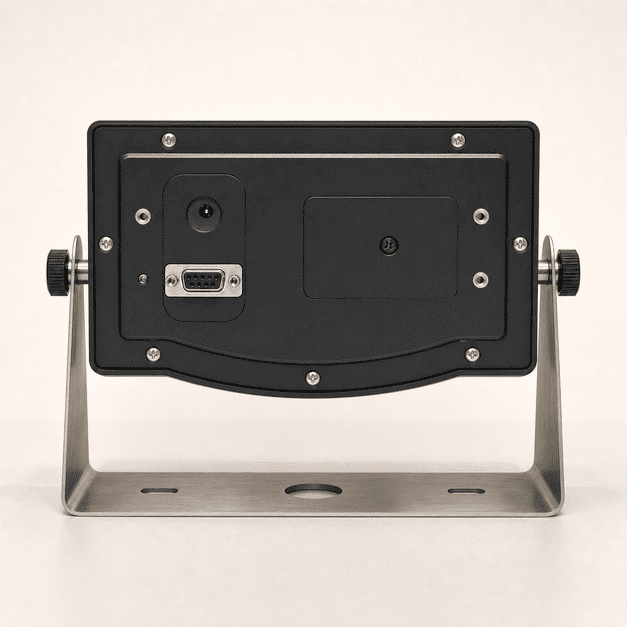

Input & communication
Signal input	24-bit Sigma-Delta A/D load cell signal
Load cell support	Analog load cell input; suggested 1 to 4 load cells depending on scale structure
Excitation voltage	DC 5 V
Measurement rate	Stable reading in less than 8 s
Communication	Wireless; IR remote
Power & operation
Power supply	Rechargeable lithium battery system
Battery	Built-in lithium battery charging control circuit
Printer / version	External printer support
Key functions	Weight accumulation / Storage of last 10 records / Kg/lb switching / Counting / Infrared remote operation
Optional expansion	Wireless display module / Infrared remote controller / Wireless receiving indicator configuration
