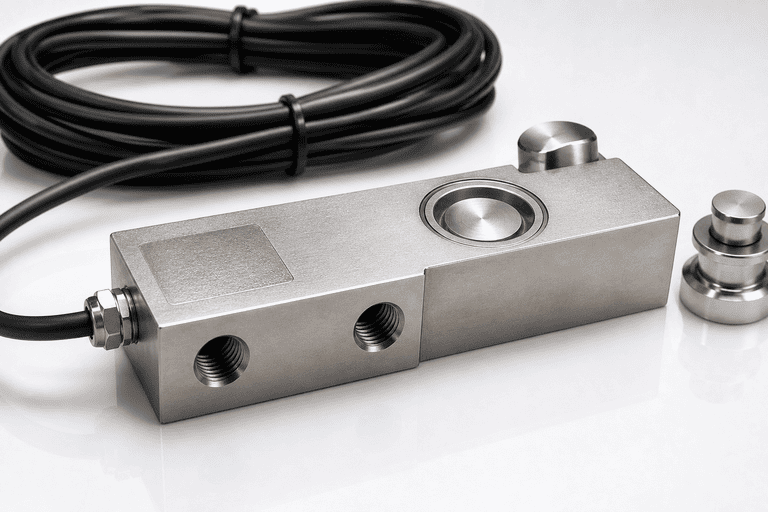

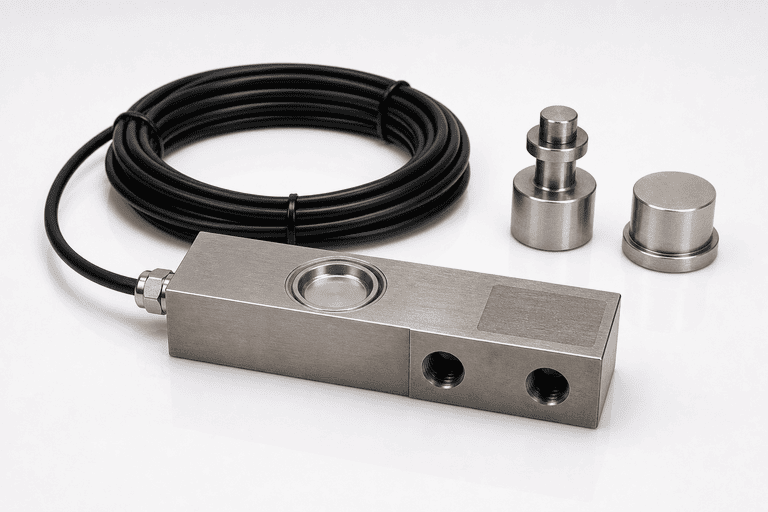

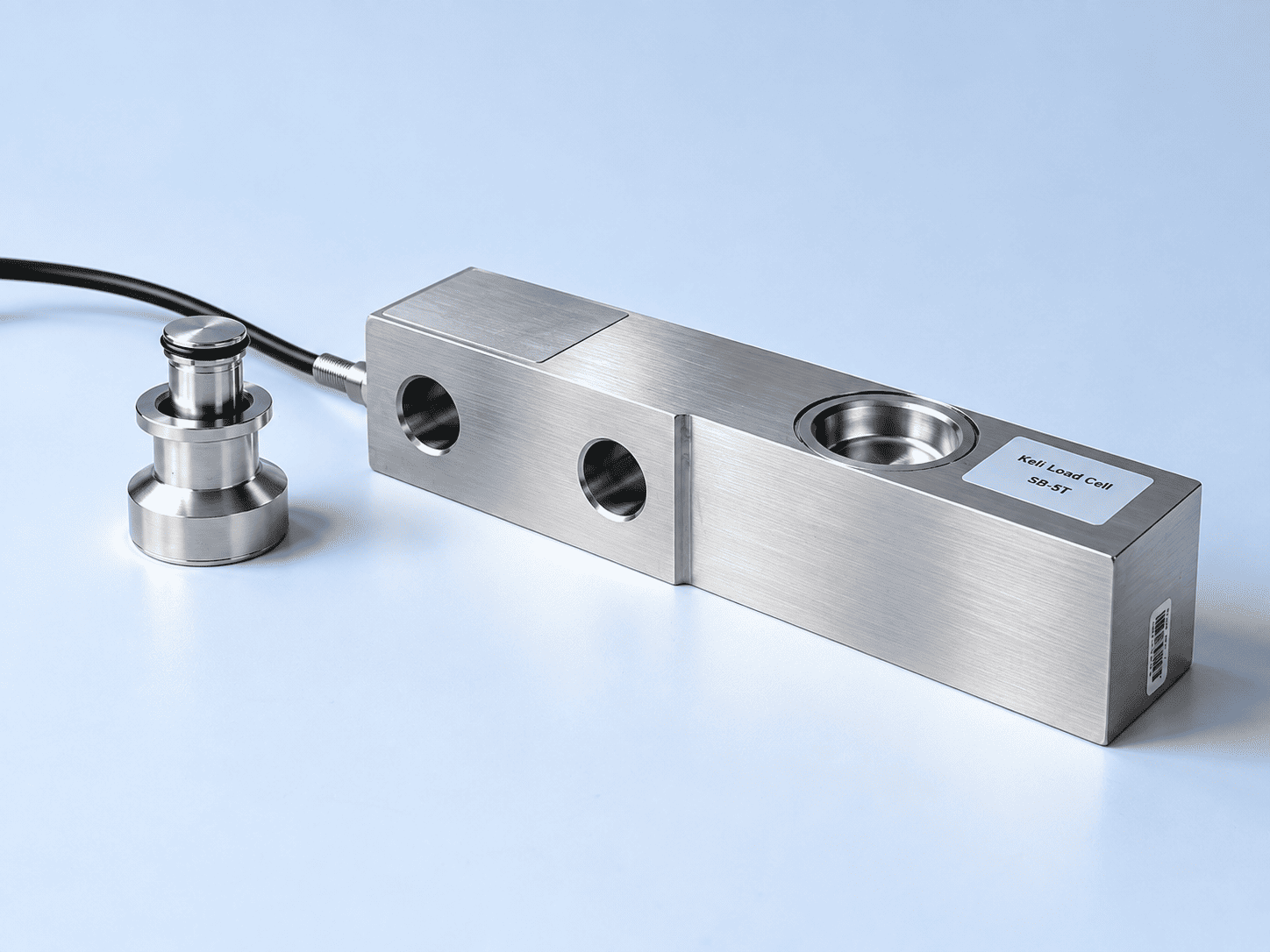

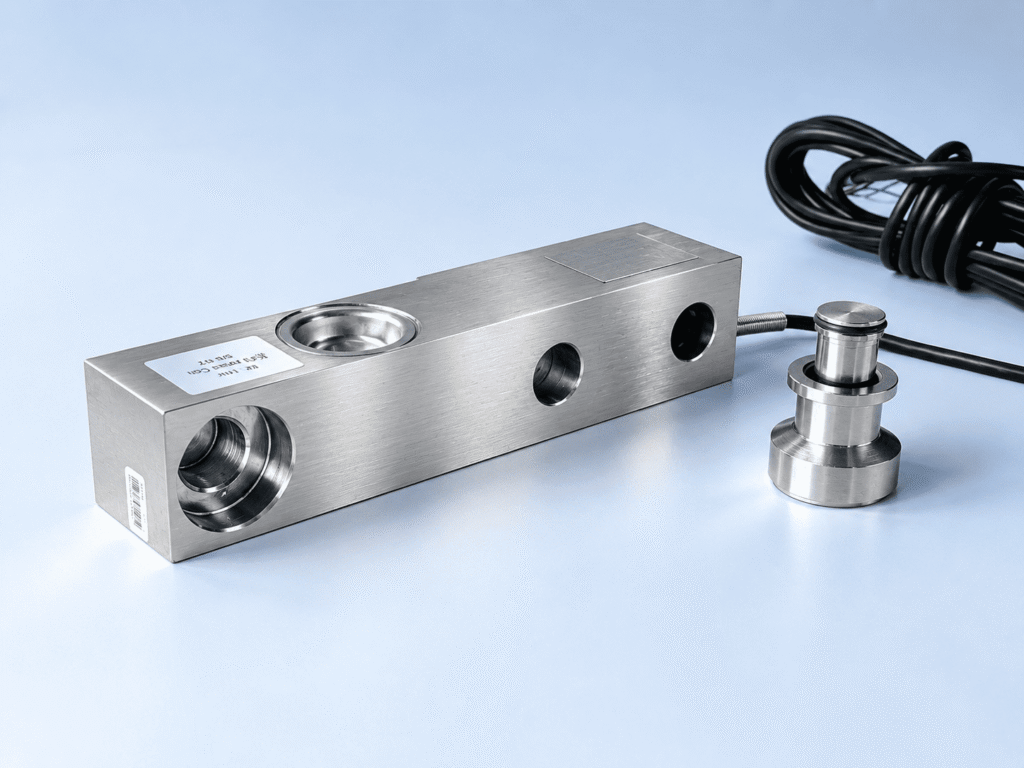

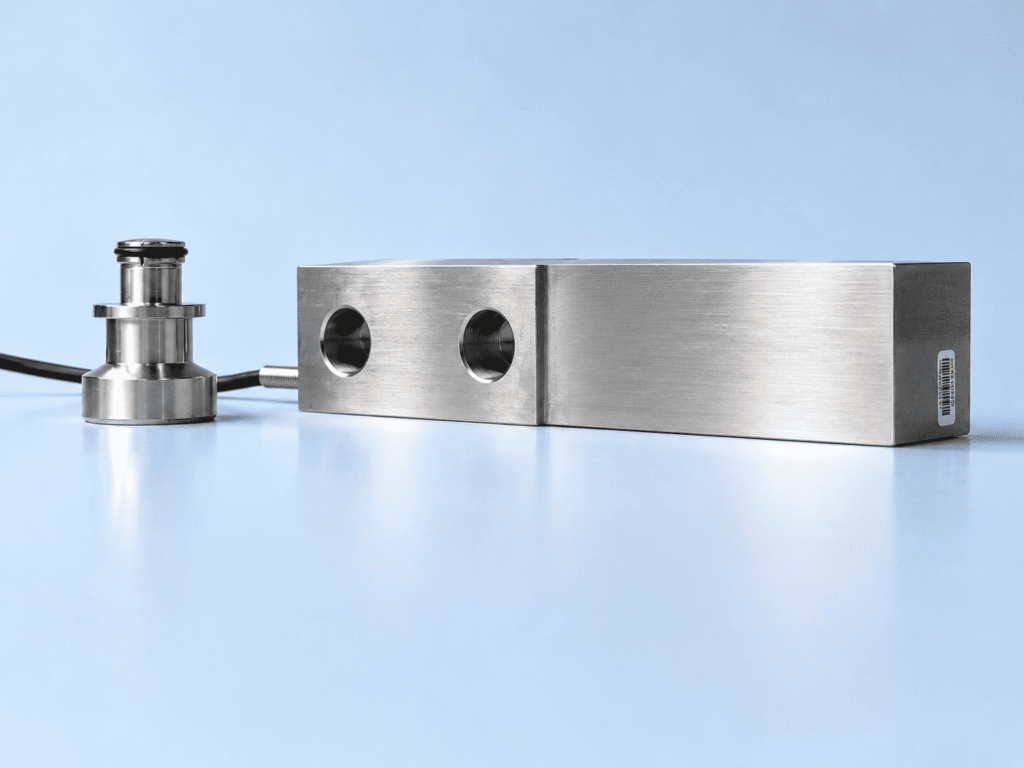

SB KELI Shear Beam Load Cell
Model: SB
Shear Beam Load Cell
0.3 / 0.5 / 1 / 2 / 3 / 5 / 7.5 / 10 / 15 / 20 / 25 t
Rated Capacity
C3
Accuracy Class
150% F.S
Safe Overload
SB is a KELI shear beam load cell for floor scales, truck scales, and batching systems. It supports a broad capacity range and provides C3 accuracy with IP66/IP67 protection depending on capacity.
Key Features
- Wide capacity range; C3 accuracy; IP66/IP67 protection; alloy or stainless steel option; suitable for floor and truck scales.
Applications
Floor ScaleTruck Scale
Technical Specifications
Rated Capacity
0.3 / 0.5 / 1 / 2 / 3 / 5 / 7.5 / 10 / 15 / 20 / 25 t
Accuracy Class
C3
Rated Output
2.0 +/-0.002 mV/V
Creep
+/-0.03% F.S / 30 min
Temperature Effect
Zero/span +/-0.02% F.S / 10℃
Temperature Range
Compensated -10 to +40℃; operating -30 to +70℃
Safe Overload
150% F.S
Ultimate Overload
200% F.S
Excitation Voltage
10-12 VDC
Protection Class
IP67
Material
Alloy Steel / Stainless Steel
Cable
2.6 m (0.3-2 t); 3.5 m (3 t); 5.2 m (5-8 t); 7 m (10 t); 12 m (15-25 t)
Wiring / Interface
4-wire for 0.3-8 t; 6-wire for 10-25 t
Dimensions
130 mm * 31.8 mm * 38 mm<br /> 225 mm * 38 mm * 52 mm<br /> 318 mm * 50.8 mm * 95 mm
Compatible Scale Systems
This load cell is designed to integrate seamlessly with the following weighing systems.
