HEAVYE · HF132

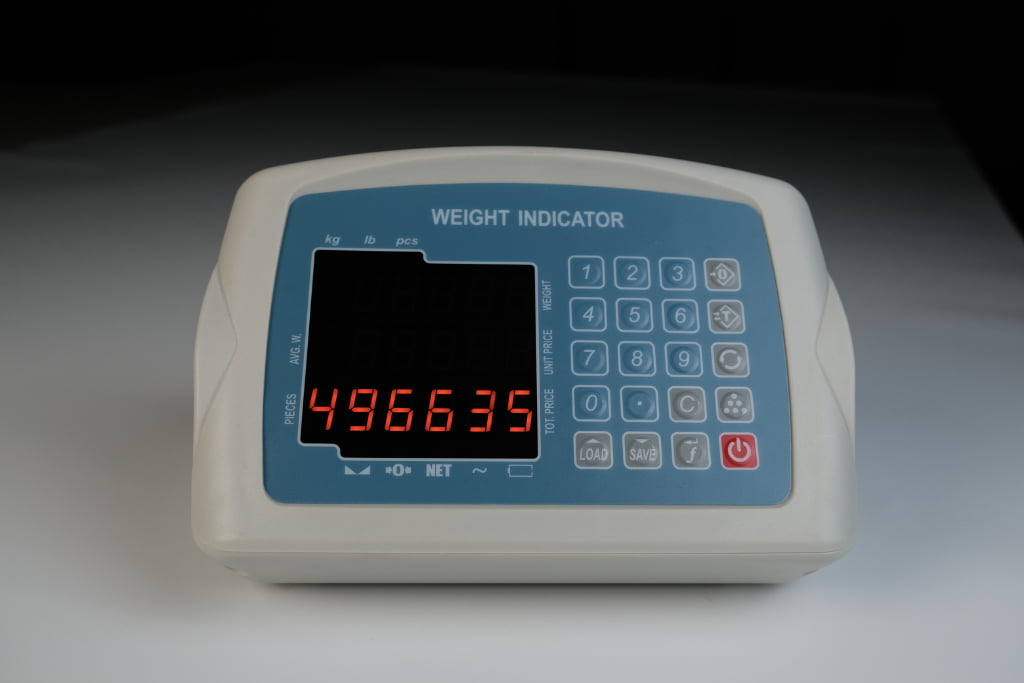

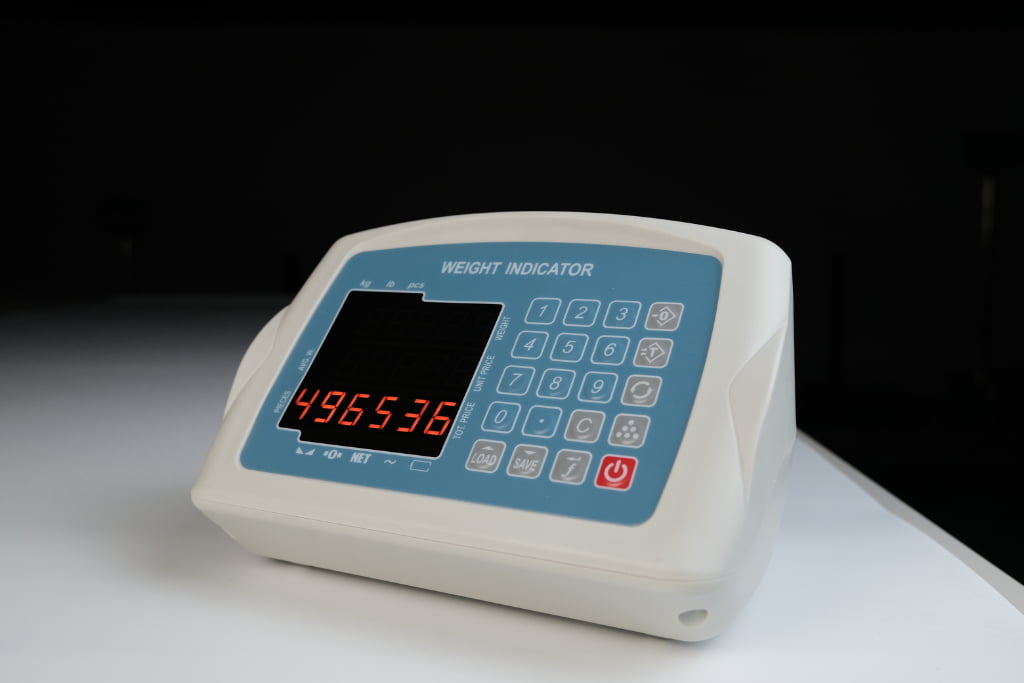

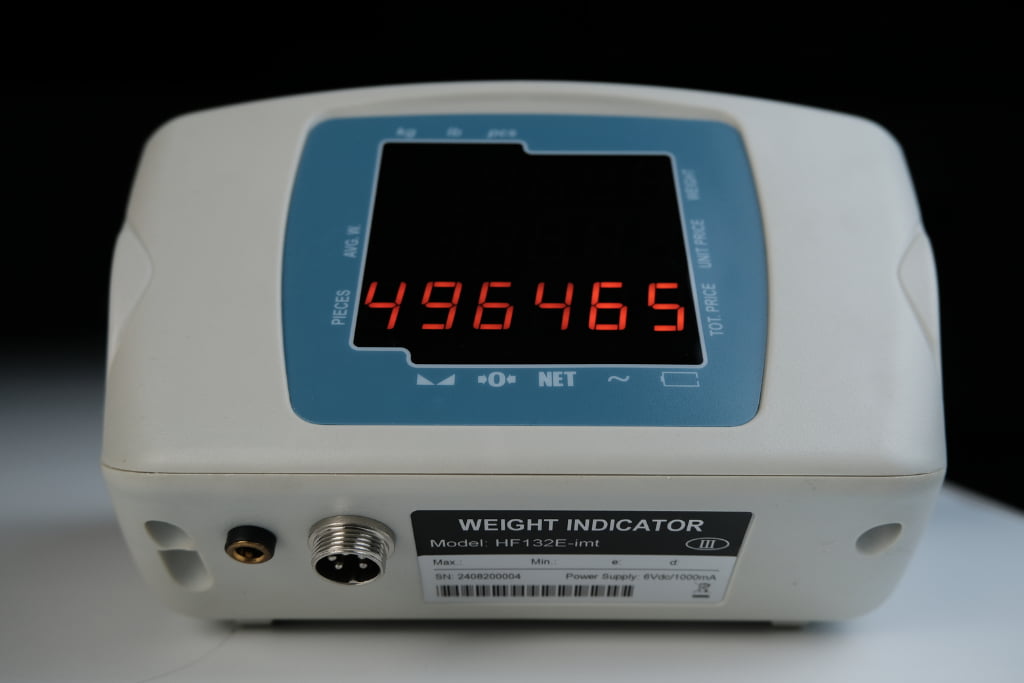

HF132 Weighing Indicator

Explore HEAVYE Indicator specifications and connection requirements for your weighing application.

HF132 · View 1

01 / 05

Select a view. Click the main image to enlarge.

From weight to useful information.

Review the display, operating functions and connections that bring weighing data into your workflow.

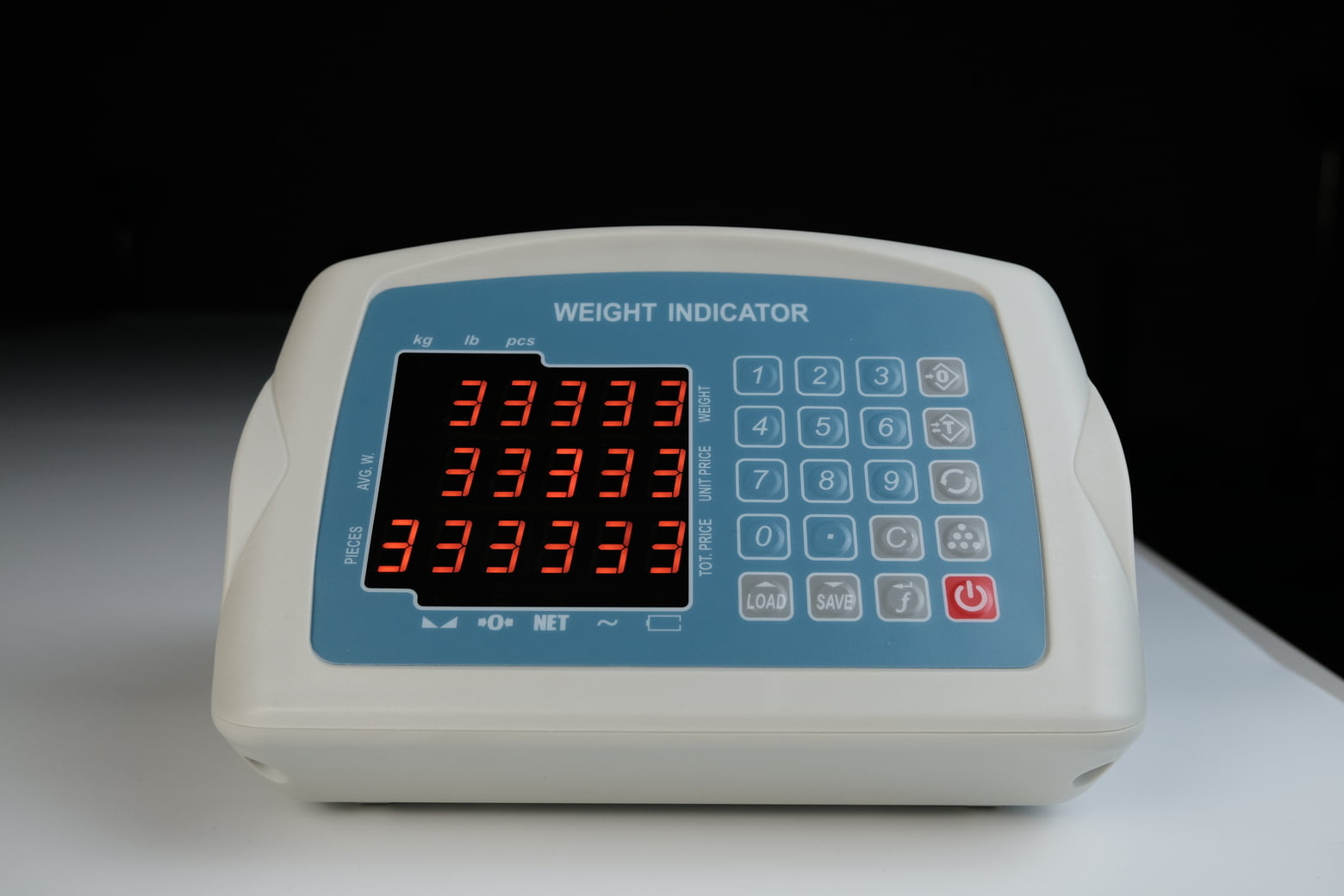

Dual 3-line 0.56 inch/14 mm orange LED or dual 3-line 0.7 inch/17.8 mm LCD with orange backlight

RS232; USB; BLE. Confirm the required interface in your configuration.

Price computing / Counting mode / Structured menu / User-defined function key / Multi-line display

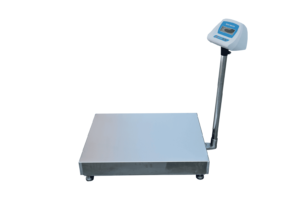

For your daily workflowBench ScaleCounting ScaleRetail Weighing

Configure your equipment

Select your communication and application requirements. We can discuss the functions and configuration your system needs.

Required communication

Application

Final specifications, connections and configuration are confirmed together for your application.

Select your requirements above.

Technical specifications
Model & display
Model	HF132
Brand	HEAVYE
Display	Dual 3-line 0.56 inch/14 mm orange LED or dual 3-line 0.7 inch/17.8 mm LCD with orange backlight
Housing	Enhanced ABS plastic housing; optional ABS T-type bracket
Input & communication
Signal input	analog load cell signal
Load cell support	Up to 4 x 350 ohm load cells
Excitation voltage	DC 5 V
Measurement rate	10 measurements/s
Communication	RS232; USB; BLE
Power & operation
Power supply	6 V / 1 A universal 100-240 Vac power adaptor
Battery	Built-in 4 V / 4 Ah rechargeable lead-acid battery
Printer / version	Optional format-editable printing
Key functions	Price computing / Counting mode / Structured menu / User-defined function key / Multi-line display
Optional expansion	ABS T-type bracket / RS232 / Bluetooth BLE / USB serial communication / Editable printing
Dimensions	186 x 146 x 114 mm
