A23P Weighing Indicator

A price computing indicator for weighing, accumulation and record queries, with printing functionality for your workflow.

A23P · View 1

01 / 05

Select a view. Click the main image to enlarge.

From weight to useful information.

Review the display, operating functions and connections that bring weighing data into your workflow.

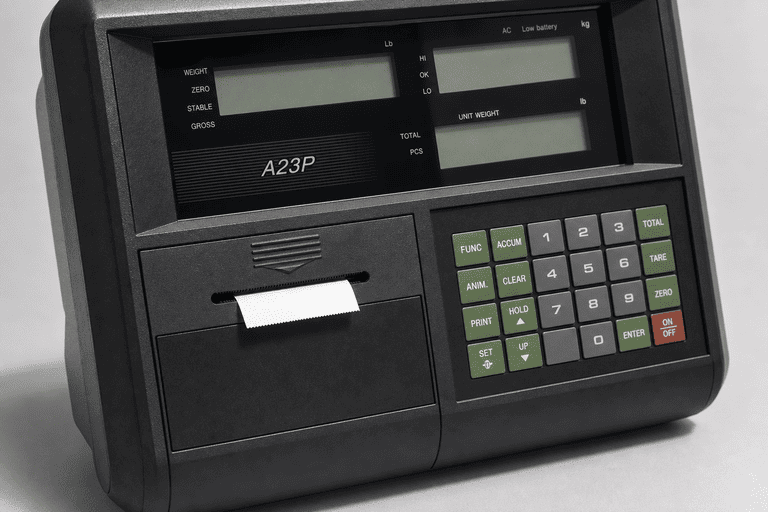

Three-window LCD display

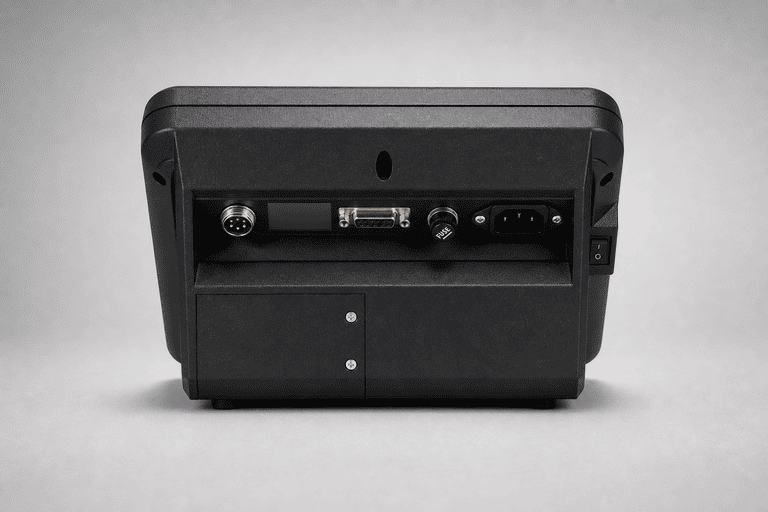

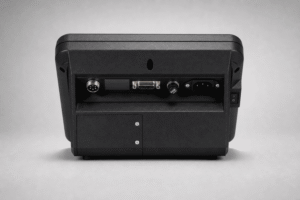

RS232; 20 mA loop. Confirm the required interface in your configuration.

Price computing / 100 unit price memories / Accumulation / Record query / Simple counting

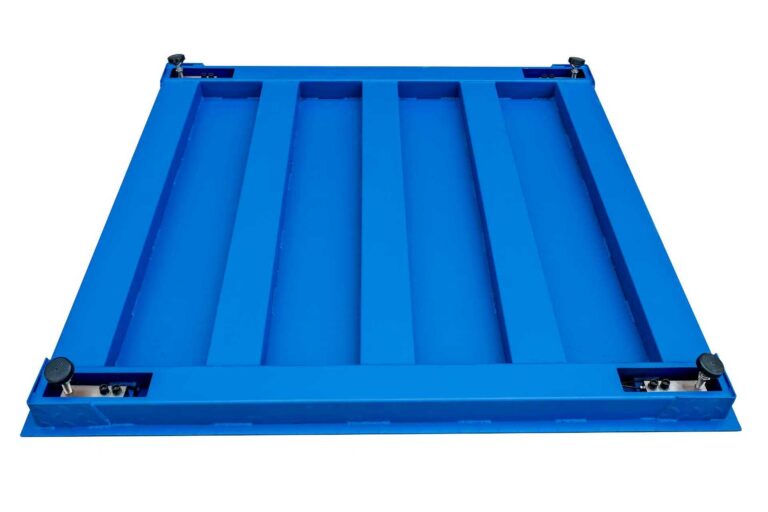

For your daily workflowBench ScaleFloor ScalePallet Jack scale

Configure your equipment

Select your communication and application requirements. We can discuss the functions and configuration your system needs.

Required communication

Application

Final specifications, connections and configuration are confirmed together for your application.

Select your requirements above.

Technical specifications
Model & display
Model	A23P
Brand	Yaohua
Display	Three-window LCD display
Housing	Standard price computing indicator housing
Input & communication
Signal input	-16 mV to 18 mV
Load cell support	1 to 4 x 350 ohm load cells
Excitation voltage	DC 5 V
Measurement rate	10 measurements/s
Communication	RS232; 20 mA loop
Power & operation
Power supply	AC 220 V
Battery	Built-in DC 6 V / 5 Ah rechargeable battery
Printer / version	Built-in mini printer
Key functions	Price computing / 100 unit price memories / Accumulation / Record query / Simple counting
Optional expansion	External serial printer / Selectable print items / RS232 communication formats
