HEAVYE · HF22

HF22 Weighing Indicator

Explore HEAVYE Indicator specifications and connection requirements for your weighing application.

HF22 · View 1

01 / 08

Select a view. Click the main image to enlarge.

From weight to useful information.

Review the display, operating functions and connections that bring weighing data into your workflow.

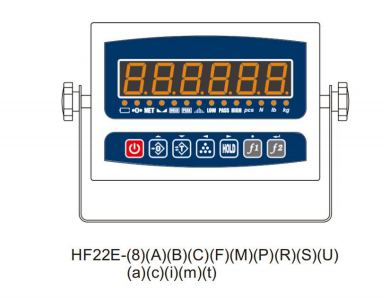

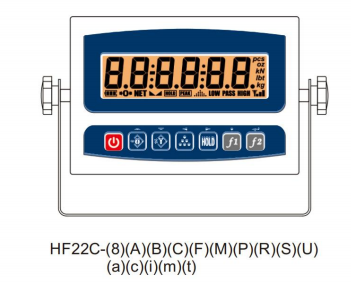

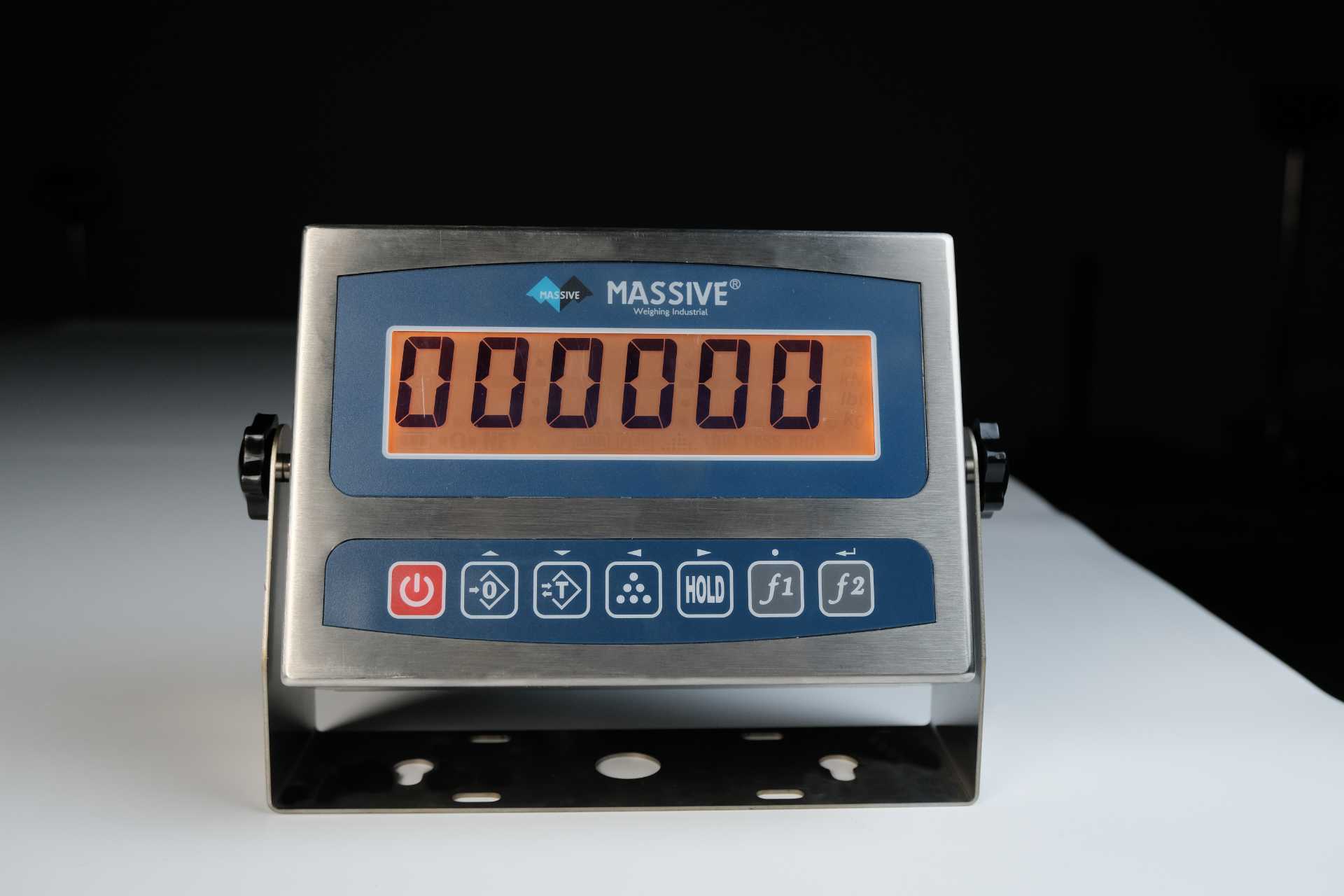

1.0 inch/25 mm orange LED or 1.0 inch/25 mm LCD with orange backlight

RS232; RS485; BLE; RF. Confirm the required interface in your configuration.

Basic weighing / Zero calibration / 5-point linearity calibration / Structured menu / User-defined function keys

For your daily workflowBench ScaleFloor ScaleIndustrial Weighing

Configure your equipment

Select your communication and application requirements. We can discuss the functions and configuration your system needs.

Required communication

Application

Final specifications, connections and configuration are confirmed together for your application.

Select your requirements above.

Technical specifications
Model & display
Model	HF22
Brand	HEAVYE
Display	1.0 inch/25 mm orange LED or 1.0 inch/25 mm LCD with orange backlight
Input & communication
Signal input	analog load cell signal
Load cell support	Up to 16 x 350 ohm load cells
Excitation voltage	DC 5 V
Measurement rate	10 measurements/s
Communication	RS232; RS485; BLE; RF
Power & operation
Power supply	Universal 100-240 Vac
Battery	Built-in 6 V / 4 Ah rechargeable lead-acid battery
Printer / version	Optional format-editable printing
Key functions	Basic weighing / Zero calibration / 5-point linearity calibration / Structured menu / User-defined function keys
Optional expansion	SS304 T-type pole bracket / RS485; 0-20 mA / 0-10 V analog output / Bluetooth BLE / Real-time clock

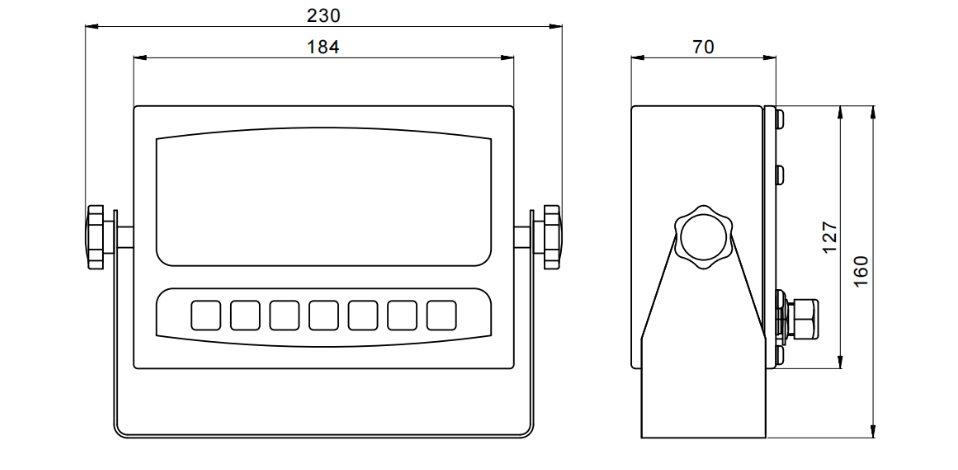

Dimensions	230 x 160 x 70 mm
