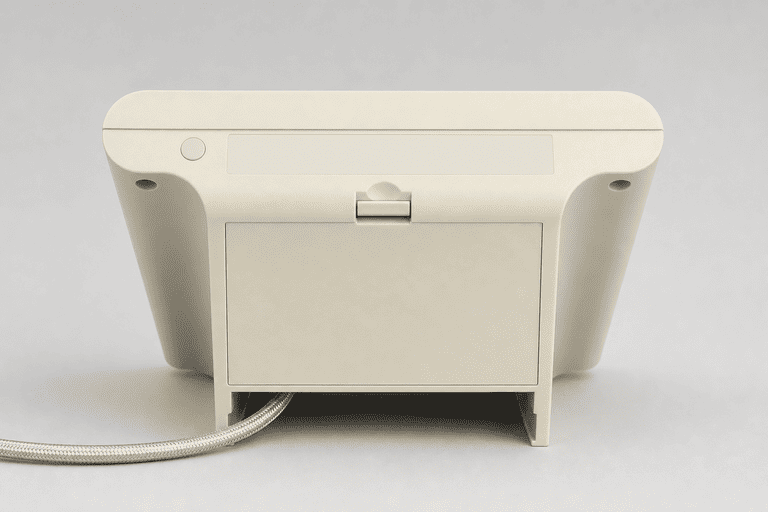

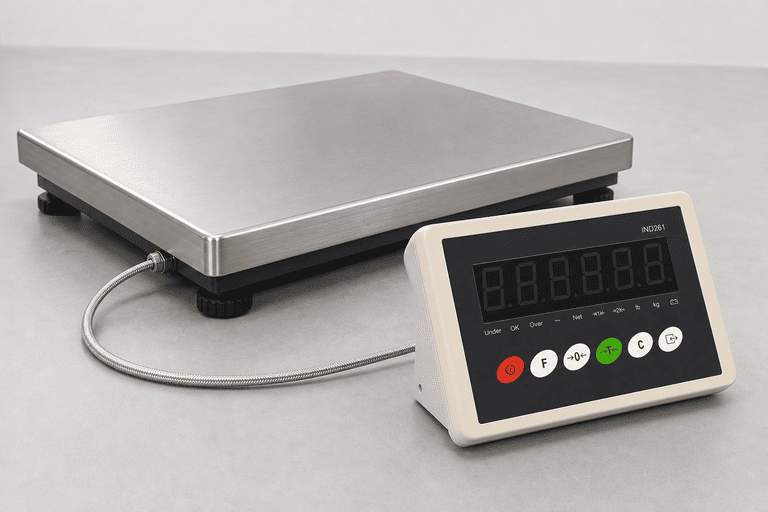

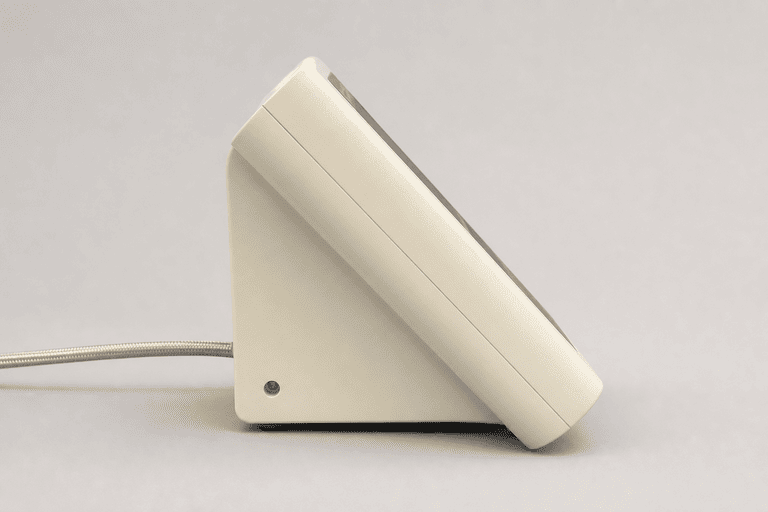

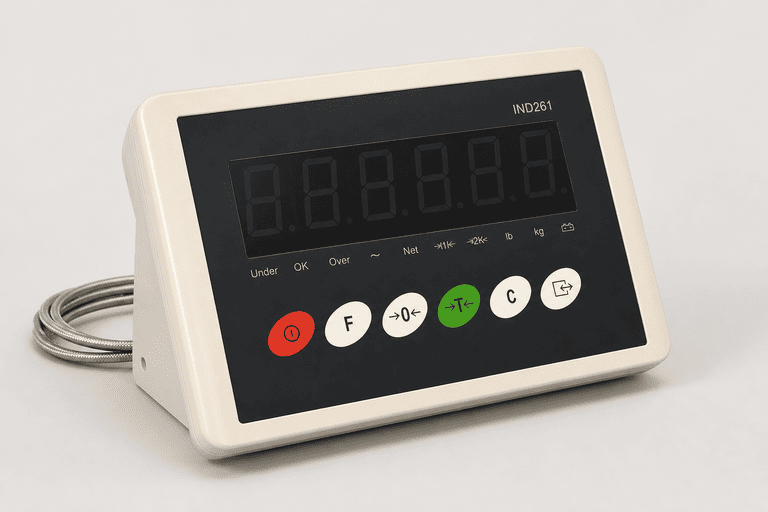

IND261 Weighing Indicator

Explore HENER Indicator specifications and connection requirements for your weighing application.

IND261 · View 1

01 / 05

Select a view. Click the main image to enlarge.

From weight to useful information.

Review the display, operating functions and connections that bring weighing data into your workflow.

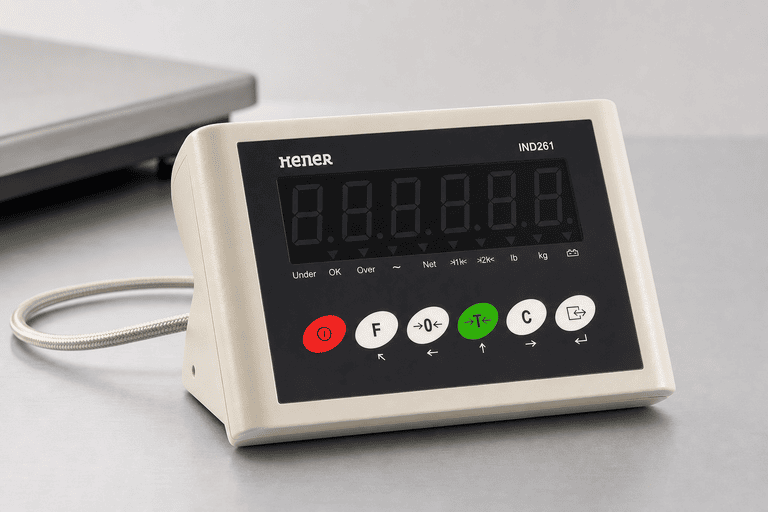

6-digit LED display, 33.4 mm digit height, red or green

RS232 standard; supports Modbus RTU networking. Confirm the required interface in your configuration.

High-precision floor scale weighing/ Analog load cell input / RS232 serial communication / Modbus RTU communication / Networking support

For your daily workflowFloor Scale

Configure your equipment

Select your communication and application requirements. We can discuss the functions and configuration your system needs.

Required communication

Application

Final specifications, connections and configuration are confirmed together for your application.

Select your requirements above.

Technical specifications
Model & display
Model	IND261
Brand	HENER
Display	6-digit LED display, 33.4 mm digit height, red or green
Housing	ABS desktop housing/ Membrane keypad
Input & communication
Load cell support	One analog scale platform; up to 8 x 350 ohm load cells
Excitation voltage	+5 VDC
Communication	RS232 standard; supports Modbus RTU networking
Power & operation
Power supply	12 VDC power supply standard; max power consumption
Battery	Optional 8.4 VDC 5200 mAh lithium battery; optional 6 VDC 4000 mAh lead-acid battery
Key functions	High-precision floor scale weighing/ Analog load cell input / RS232 serial communication / Modbus RTU communication / Networking support
Optional expansion	RS485 / Bluetooth / WiFi optional
Dimensions	220 mm * 113 mm * 150 mm
