A12E Weighing Indicator

Explore Yaohua Indicator specifications and connection requirements for your weighing application.

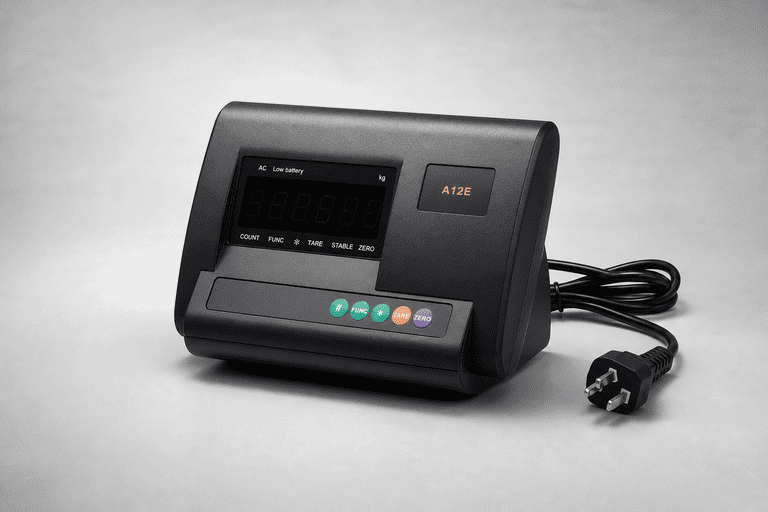

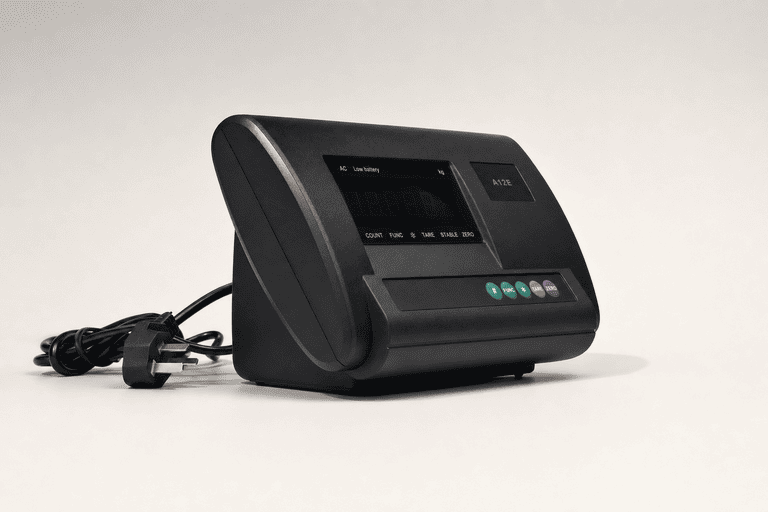

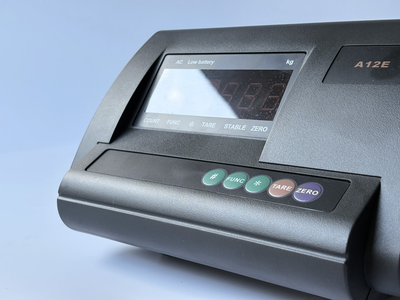

A12E · View 1

01 / 07

Select a view. Click the main image to enlarge.

From weight to useful information.

Review the display, operating functions and connections that bring weighing data into your workflow.

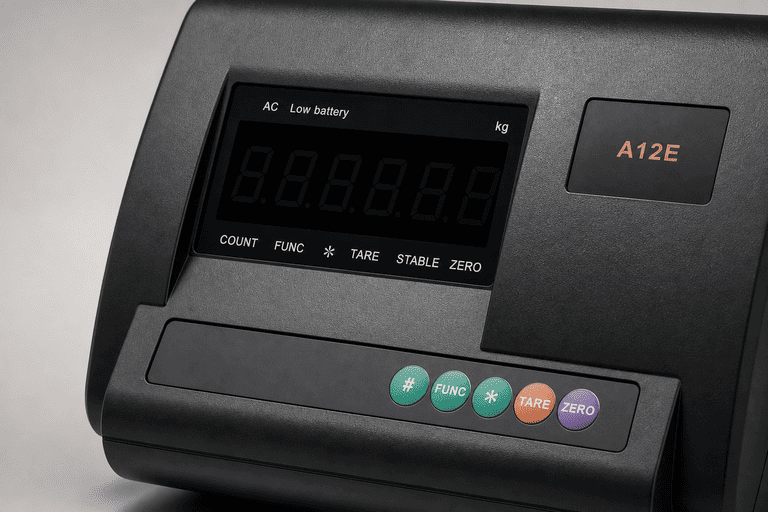

LCD/LED weighing display with selectable backlight modes

RS232; 20 mA loop. Confirm the required interface in your configuration.

Counting / Digital filtering / Zero tracking / Tare / Selectable division value

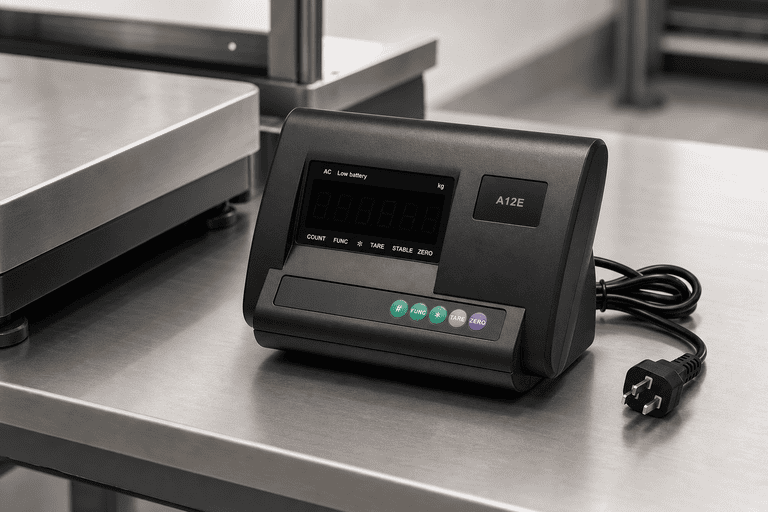

For your daily workflowBench ScaleFloor ScalePallet Jack scale

Configure your equipment

Select your communication and application requirements. We can discuss the functions and configuration your system needs.

Required communication

Application

Final specifications, connections and configuration are confirmed together for your application.

Select your requirements above.

Technical specifications
Model & display
Model	A12E
Brand	Yaohua
Display	LCD/LED weighing display with selectable backlight modes
Housing	Standard ABS/industrial indicator housing

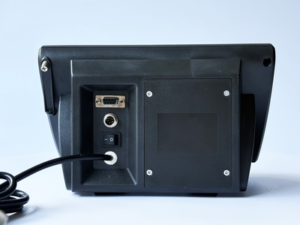

Input & communication
Signal input	-10 mV to 15 mV
Load cell support	Up to 4 x 350 ohm load cells
Excitation voltage	DC 5 V, up to 150 mA
Measurement rate	10 measurements/s
Communication	RS232; 20 mA loop
Power & operation
Power supply	AC 220 V
Battery	Built-in DC 6 V / 4 Ah rechargeable battery
Printer / version	External printer support
Key functions	Counting / Digital filtering / Zero tracking / Tare / Selectable division value
Optional expansion	RS232 / 20 mA current-loop display output / Custom firmware variants
