HENER · HR2208

HR2208 Weighing Indicator

Explore HENER Indicator specifications and connection requirements for your weighing application.

HR2208 · View 1

01 / 03

Select a view. Click the main image to enlarge.

From weight to useful information.

Review the display, operating functions and connections that bring weighing data into your workflow.

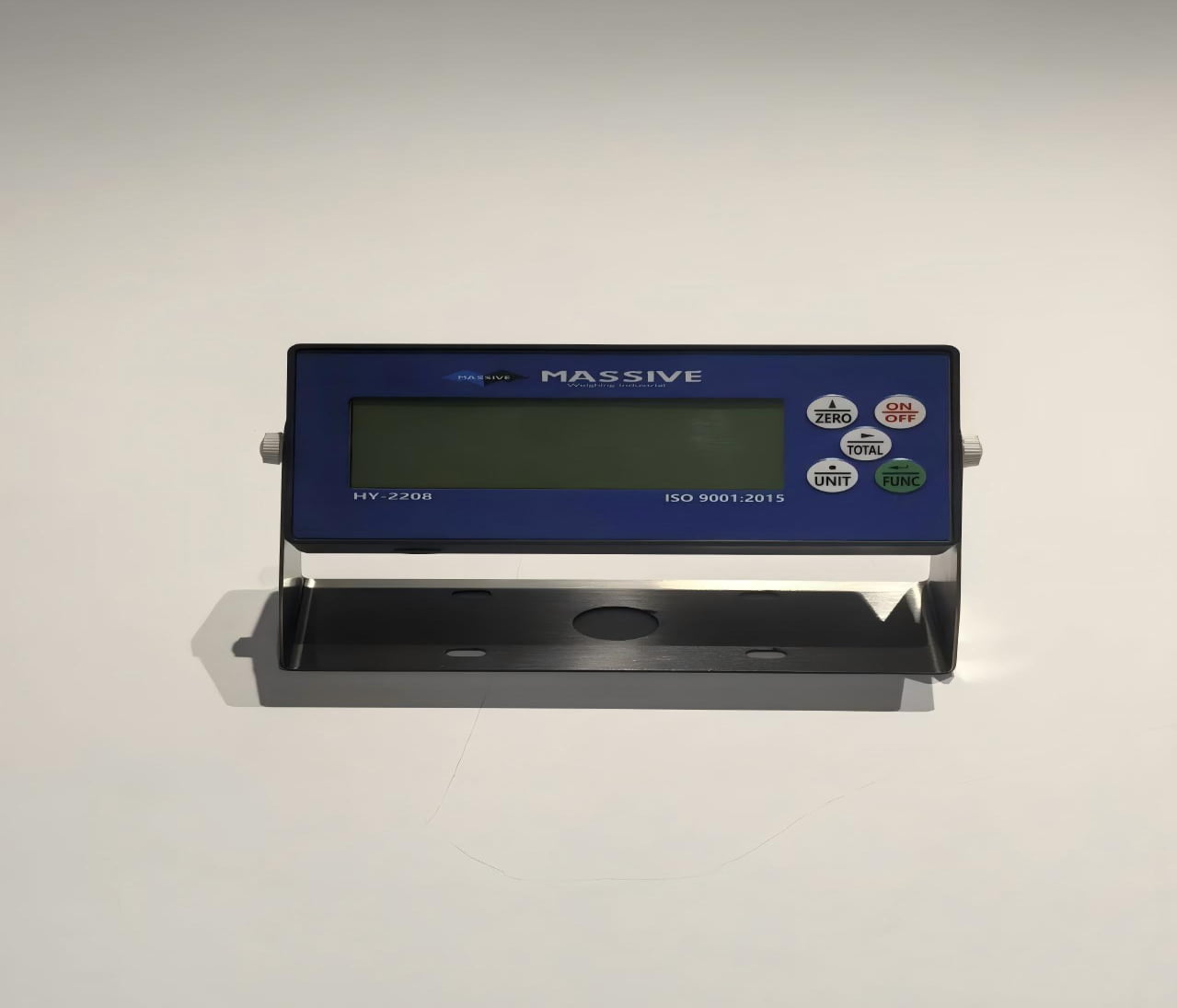

6-digit large LCD display with backlight

RS232. Confirm the required interface in your configuration.

Zero / Tare / Accumulation / Unit switching / Parameter setup

For your daily workflowBench ScaleFloor ScalePallet Jack scale

Configure your equipment

Select your communication and application requirements. We can discuss the functions and configuration your system needs.

Required communication

Application

Final specifications, connections and configuration are confirmed together for your application.

Select your requirements above.

Technical specifications
Model & display
Model	HR2208
Brand	HENER
Display	6-digit large LCD display with backlight
Housing	Stainless steel bracket structure
Input & communication
Signal input	1.0-3.0 mV/V analog load cell signal
Load cell support	1 to 4 x 350 ohm load cells
Excitation voltage	DC 5 V
Measurement rate	10 measurements/s

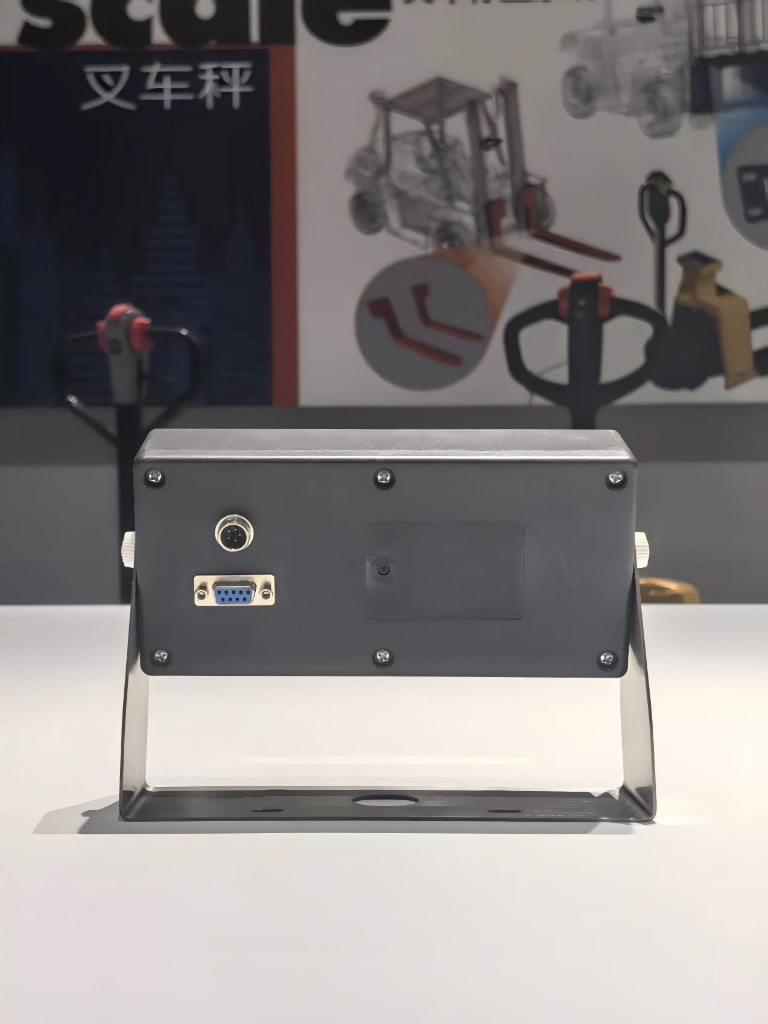

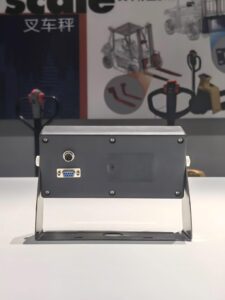

Communication	RS232
Power & operation
Power supply	AC 220 V plus built-in rechargeable battery
Battery	Built-in rechargeable battery
Printer / version	External printer support
Key functions	Zero / Tare / Accumulation / Unit switching / Parameter setup
Optional expansion	RS232 printer / PC connection
