KELI

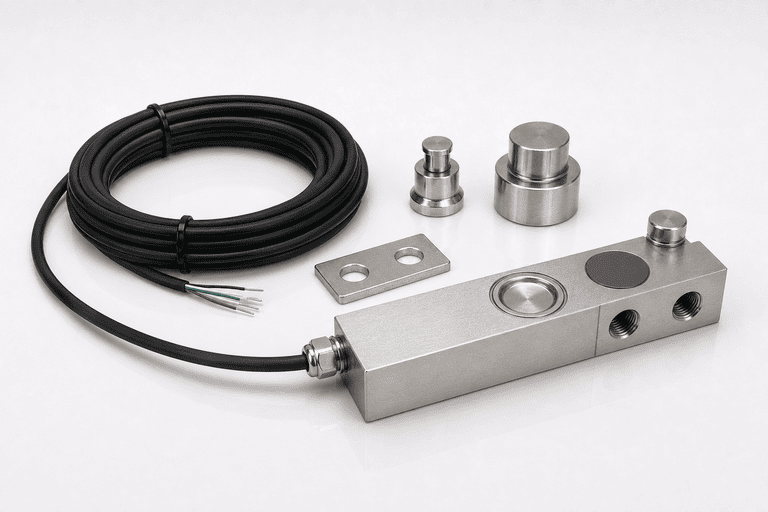

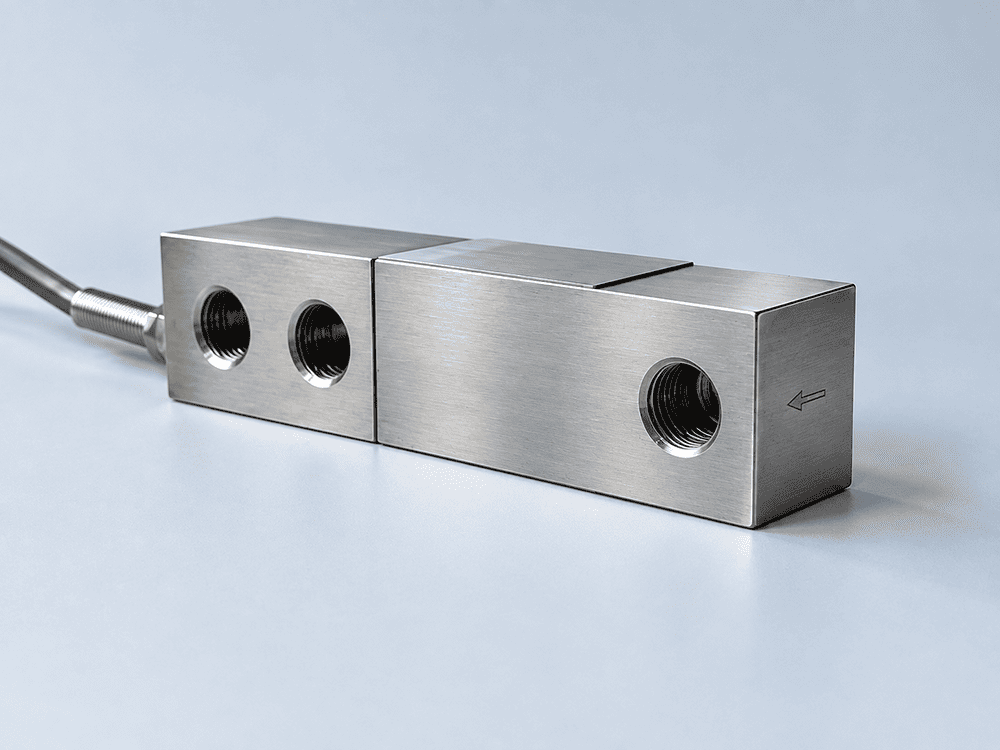

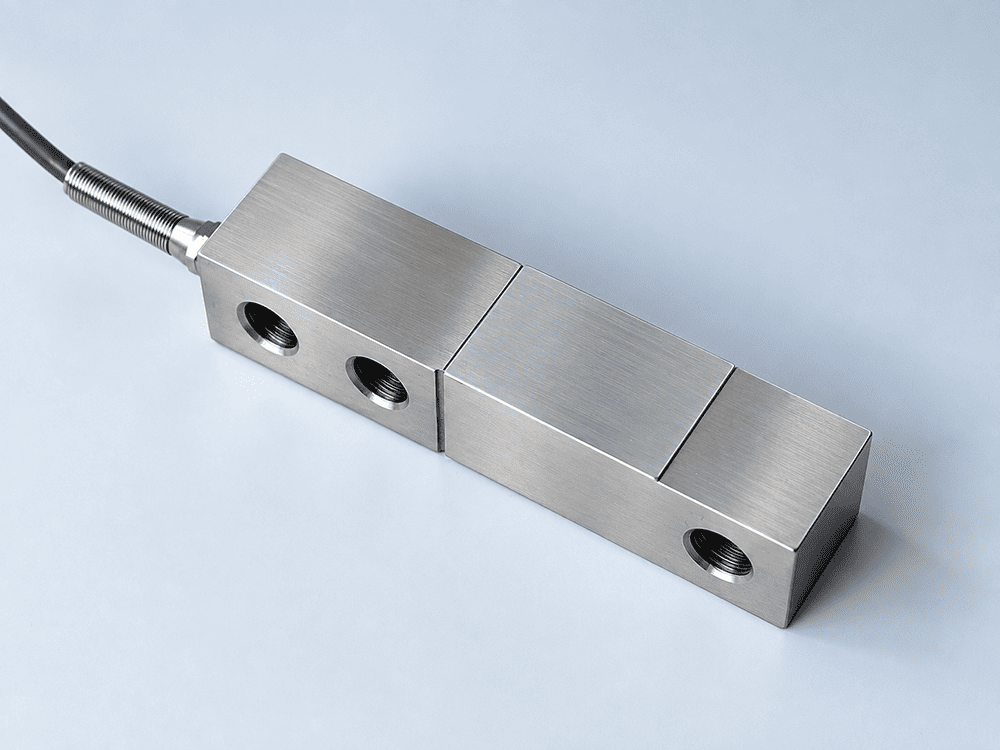

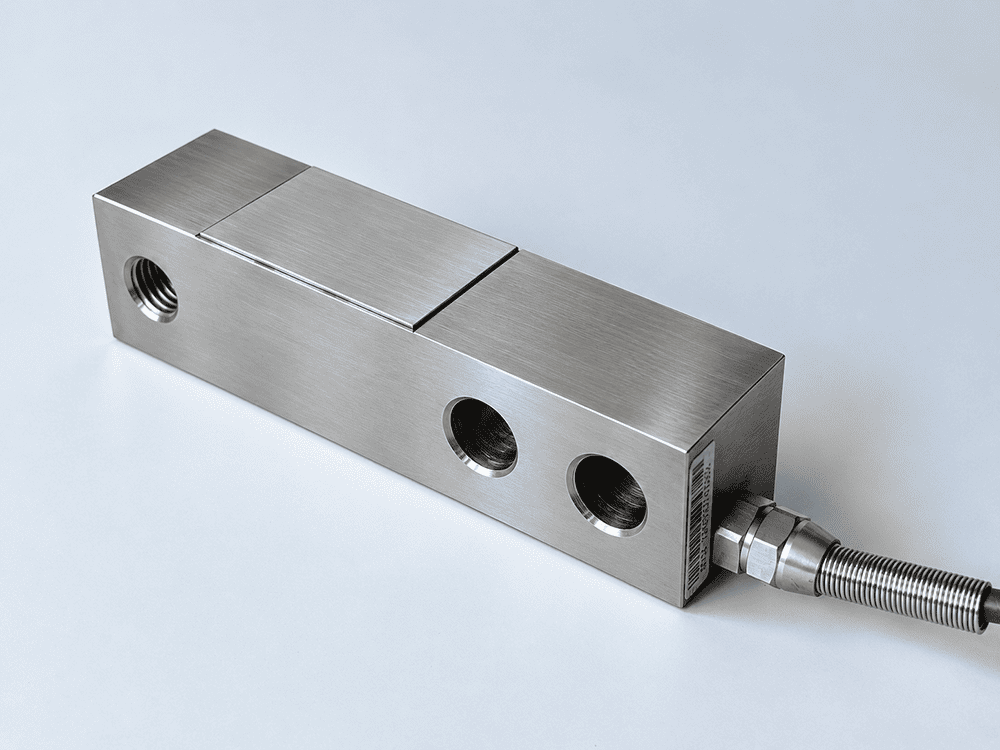

SQB KELI Shear Beam Load Cell
Model: SQB
Shear Beam Load Cell
500 kg /1 / 2 / 3 / 5 / 7.5 / 10 t
Rated Capacity
C3
Accuracy Class
150% F.S
Safe Overload
SQB is a KELI shear beam load cell for floor scales and pallet truck scale systems. It provides C3 accuracy, IP68 protection, and a robust beam design for common platform weighing applications.
Key Features
- C3 accuracy; IP68 protection; shear beam design; OIML-marked parameter sheet; suitable for floor scale and pallet truck systems.
Applications
Floor ScalePallet Truck ScaleLivestock ScaleWheelchair Scale
Technical Specifications
Rated Capacity
500 kg /1 / 2 / 3 / 5 / 7.5 / 10 t
Accuracy Class
C3
Rated Output
3.0 +/-0.003 mV/V
Creep
+/-0.03% F.S / 30 min
Temperature Effect
Zero/span +/-0.02% F.S / 10℃
Temperature Range
Compensated -10 to +40℃; operating -30 to +70℃
Safe Overload
150% F.S
Ultimate Overload
200% F.S
Excitation Voltage
10-12 VDC
Protection Class
IP68
Material
Alloy Steel / Stainless Steel
Cable
4.2m for 3-5t ; 5m for 7.5-10t
Wiring / Interface
4-wire: Exc+ red, Exc- black, Sig+ green, Sig- white
Dimensions
171.5 mm * 38.1 mm * 38.1 mm<br /> 225.5 mm * 50.8 mm * 50.8 mm
Compatible Scale Systems
This load cell is designed to integrate seamlessly with the following weighing systems.
