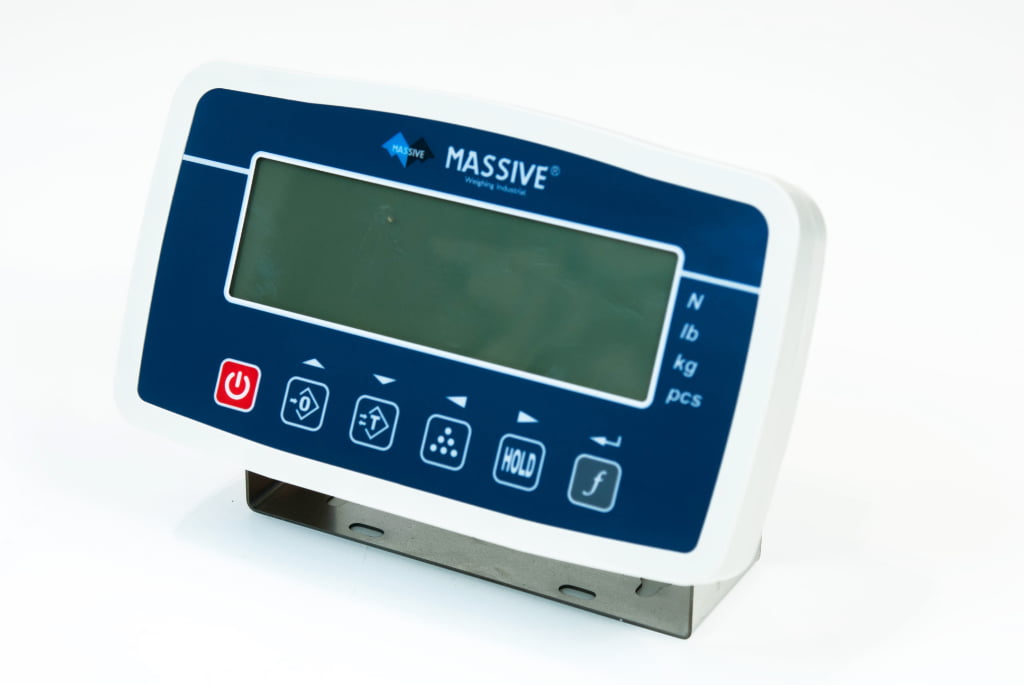

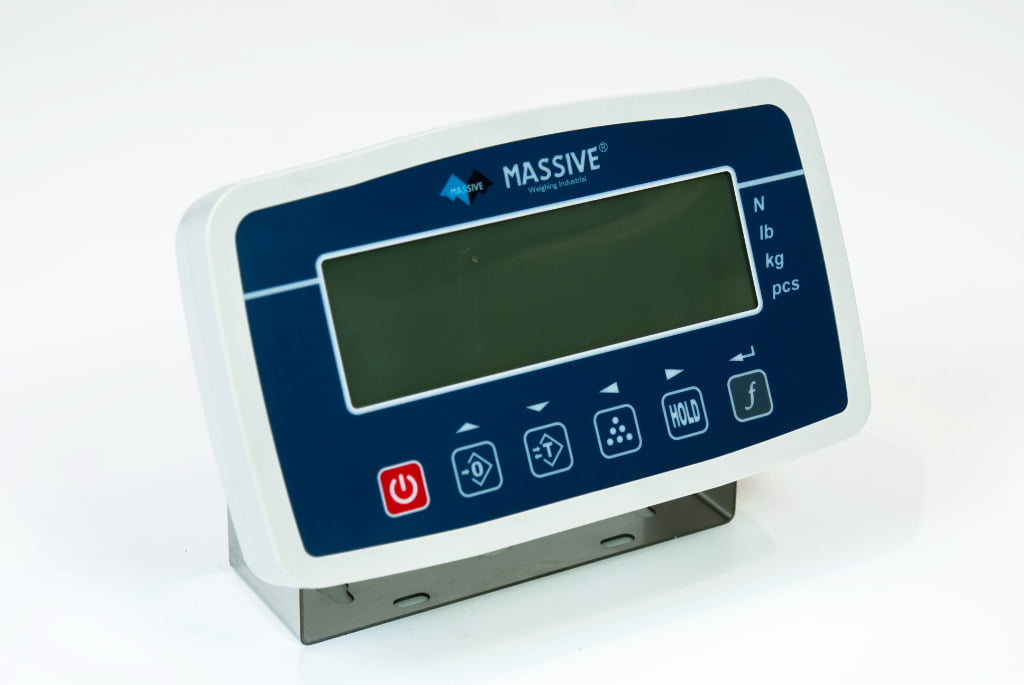

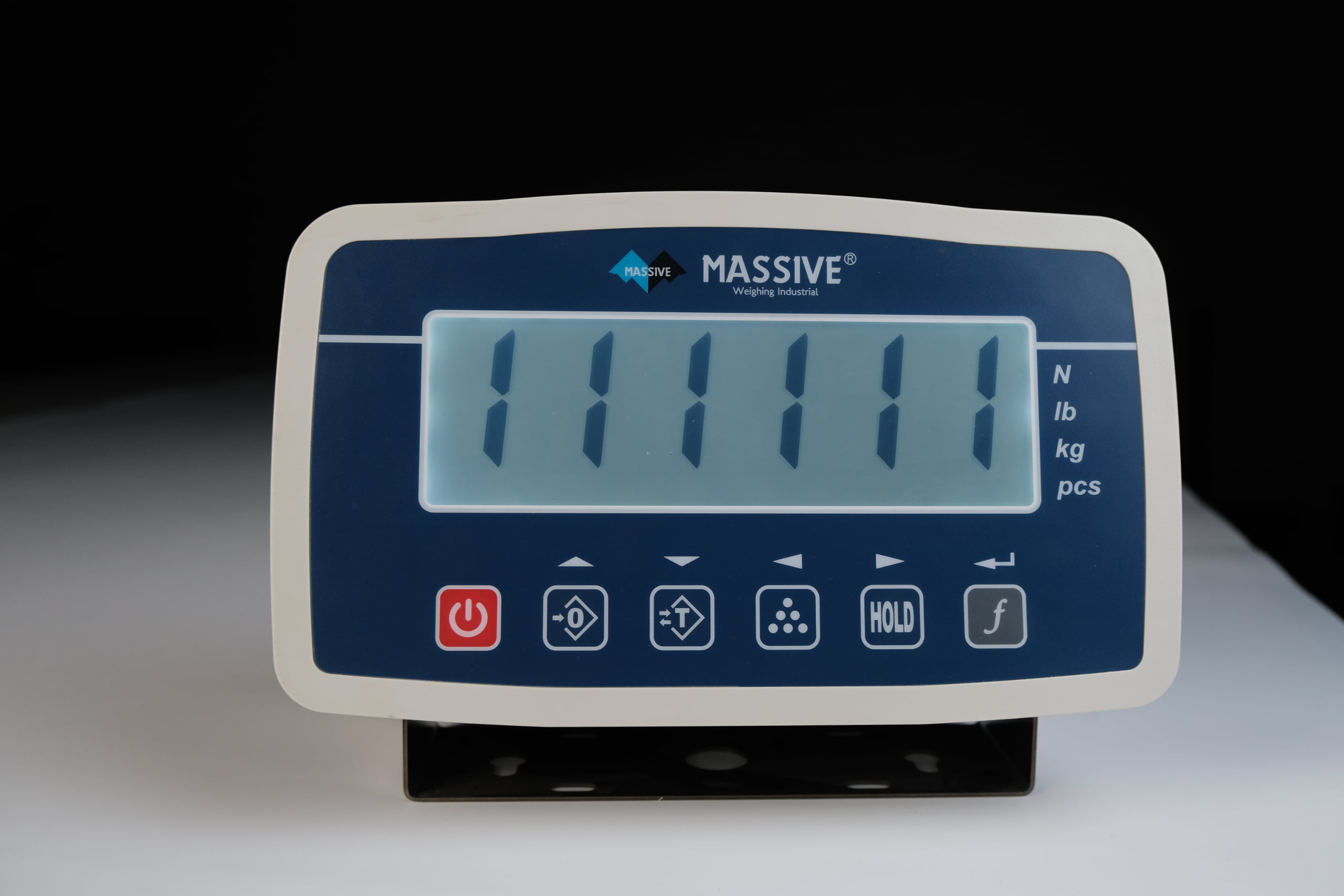

HF12C Weighing Indicator

A weighing indicator for bench, floor and pallet jack scales, with configurable functions and communication options.

HF12C · View 1

01 / 07

Select a view. Click the main image to enlarge.

From weight to useful information.

Review the display, operating functions and connections that bring weighing data into your workflow.

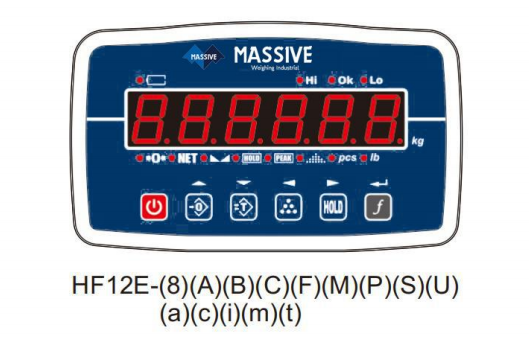

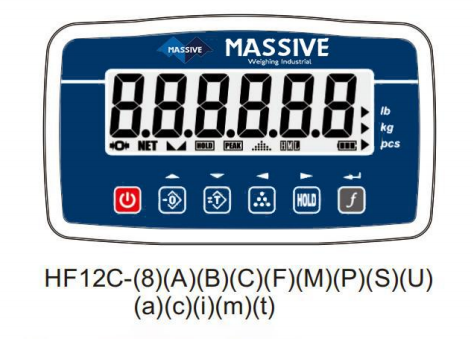

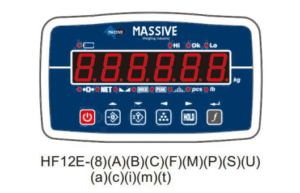

6-digit 1.5 inch/38 mm high-intensity LED or 6-digit 1.6 inch/40 mm LCD with backlight

RS232; RS485; USB; BLE; RF. Confirm the required interface in your configuration.

Zero calibration / 5-point linearity calibration / Structured menu / User-defined function key / Two configurable software set-points

For your daily workflowBench ScaleFloor ScalePallet Jack scale

Configure your equipment

Select your communication and application requirements. We can discuss the functions and configuration your system needs.

Required communication

Application

Final specifications, connections and configuration are confirmed together for your application.

Select your requirements above.

Technical specifications
Model & display
Model	HF12C
Brand	HEAVYE
Display	6-digit 1.5 inch/38 mm high-intensity LED or 6-digit 1.6 inch/40 mm LCD with backlight

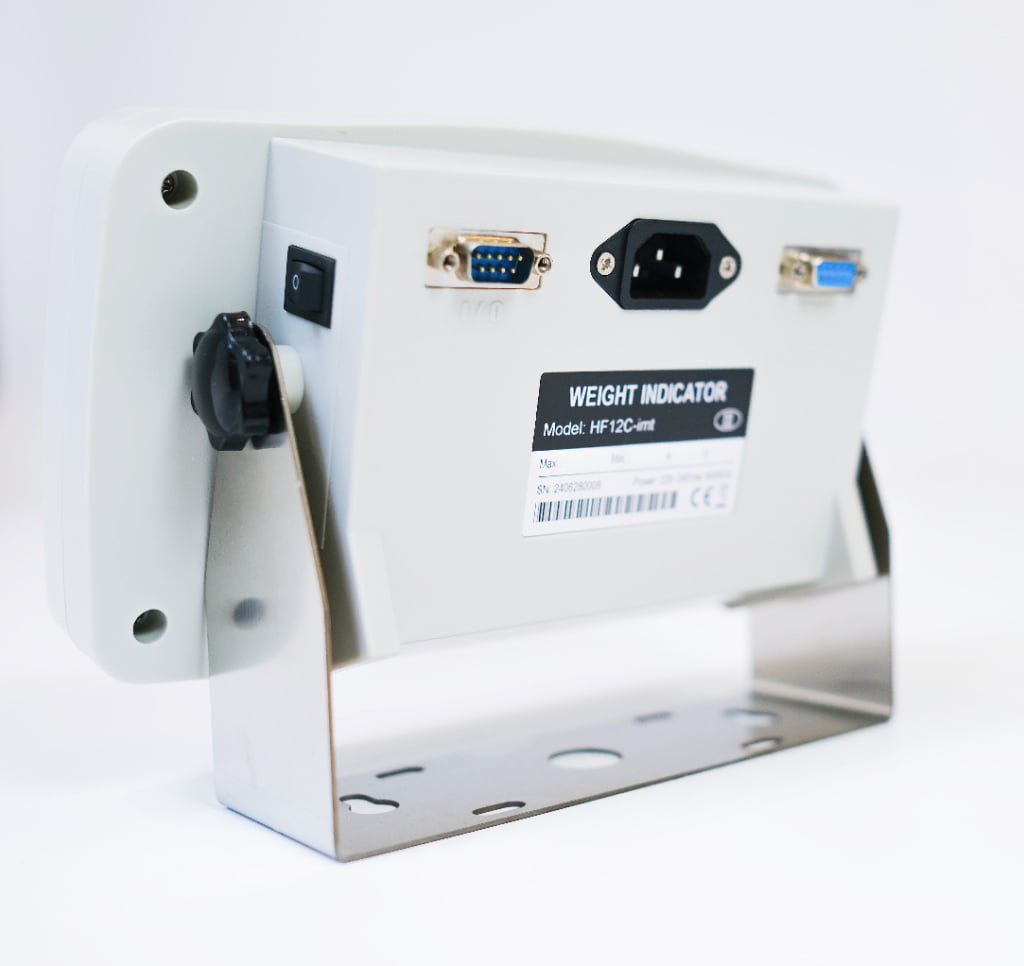

Housing	ABS plastic housing; stainless steel U-type bracket for pole or wall mounting
Input & communication
Signal input	analog load cell signal; -16 mV to 18 mV class range
Load cell support	Up to 8 x 350 ohm load cells
Excitation voltage	DC 5 V
Measurement rate	10 measurements/s
Communication	RS232; RS485; USB; BLE; RF
Power & operation
Power supply	Universal 100-240 Vac
Battery	Built-in 6 V / 4 Ah rechargeable lead-acid battery
Printer / version	Optional format-editable printing
Key functions	Zero calibration / 5-point linearity calibration / Structured menu / User-defined function key / Two configurable software set-points
Optional expansion	RS485 / 4-20 mA / 0-10 V analog output / Bluetooth BLE / Real-time clock / RF kit

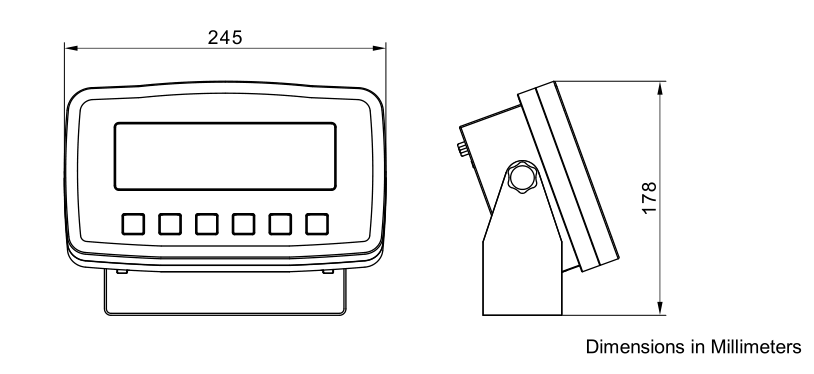

Dimensions	245 x 178 mm
