HF105 Weighing Indicator

Explore HEAVYE Indicator specifications and connection requirements for your weighing application.

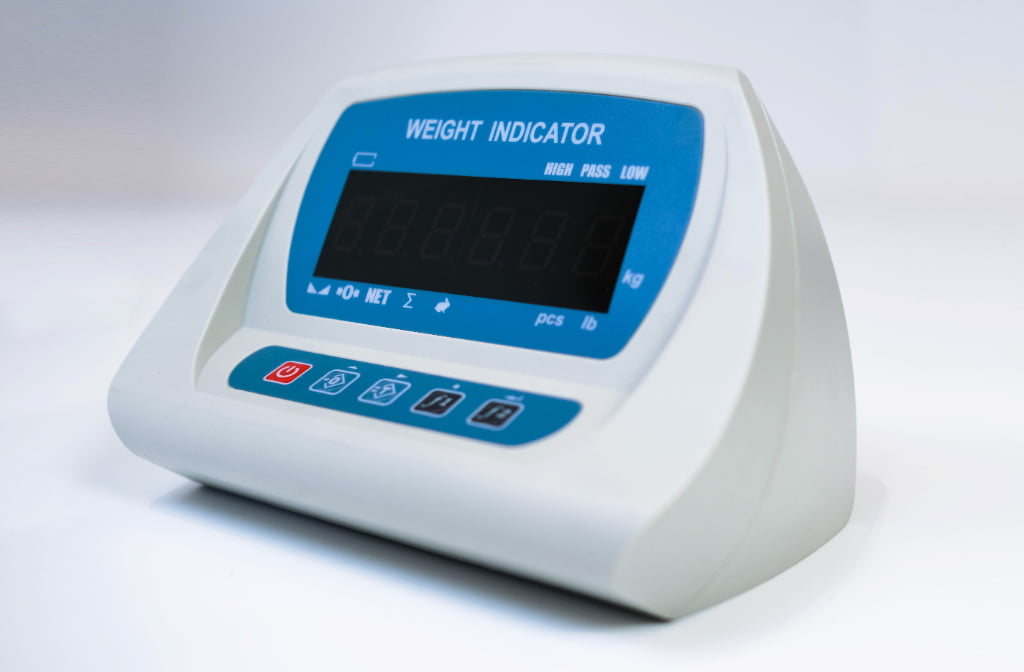

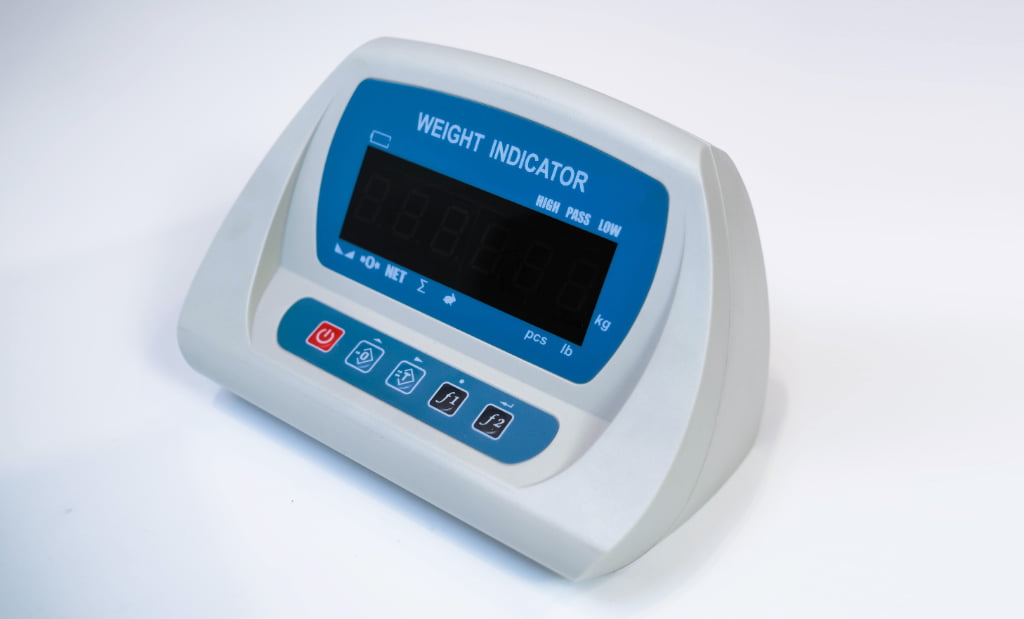

HF105 · View 1

01 / 04

Select a view. Click the main image to enlarge.

From weight to useful information.

Review the display, operating functions and connections that bring weighing data into your workflow.

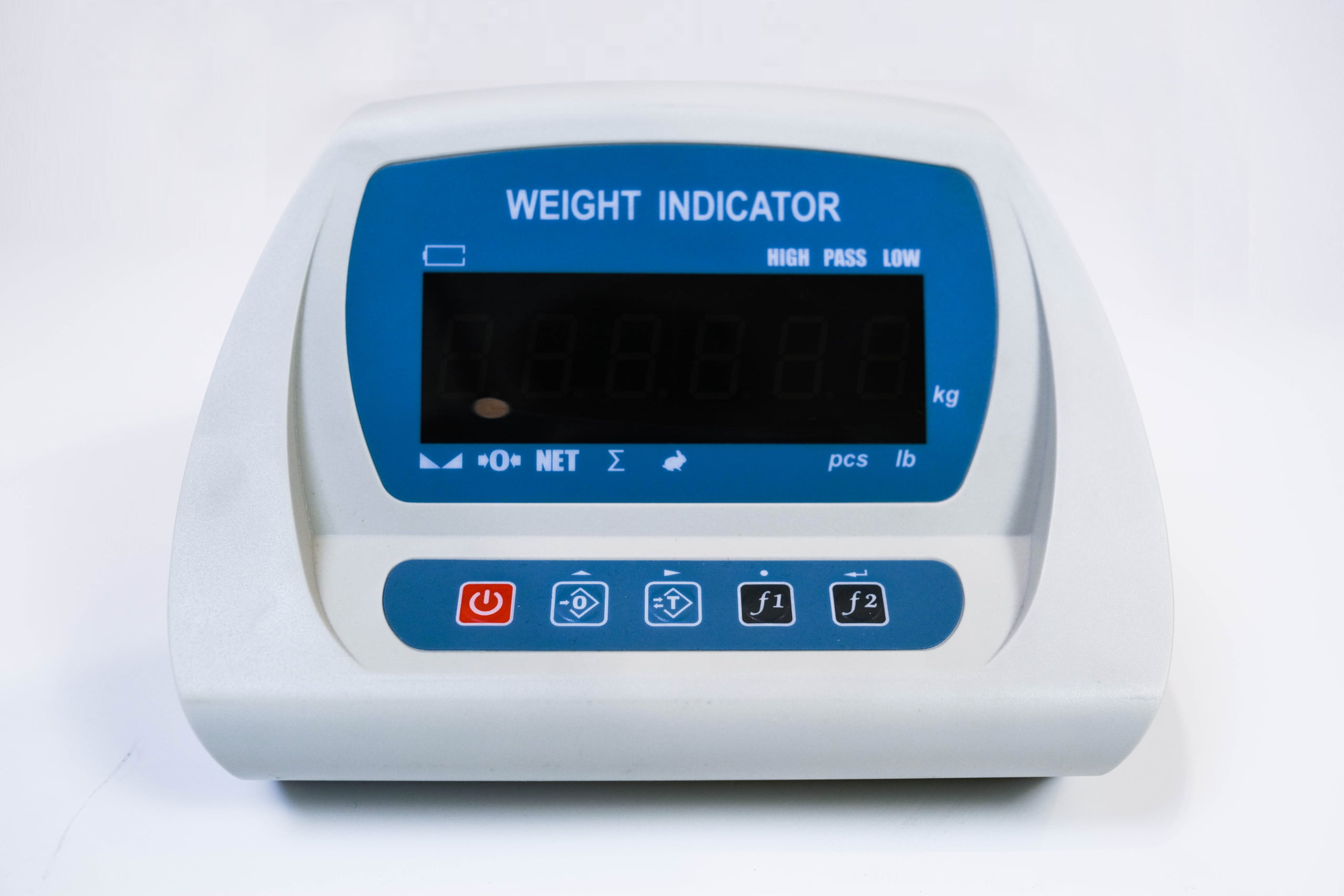

6-digit 0.8 inch/20 mm high-intensity LED or 6-digit 0.9 inch/23 mm LCD with backlight

RS232. Confirm the required interface in your configuration.

Basic weighing / Structured menu / User-friendly messages / Two configurable function keys / Automatic battery management

For your daily workflowBench ScaleFloor ScaleGeneral Weighing

Configure your equipment

Select your communication and application requirements. We can discuss the functions and configuration your system needs.

Required communication

Application

Final specifications, connections and configuration are confirmed together for your application.

Select your requirements above.

Technical specifications
Model & display
Model	HF105
Brand	HEAVYE
Display	6-digit 0.8 inch/20 mm high-intensity LED or 6-digit 0.9 inch/23 mm LCD with backlight
Housing	Enhanced ABS plastic housing; optional ABS T-type pole bracket

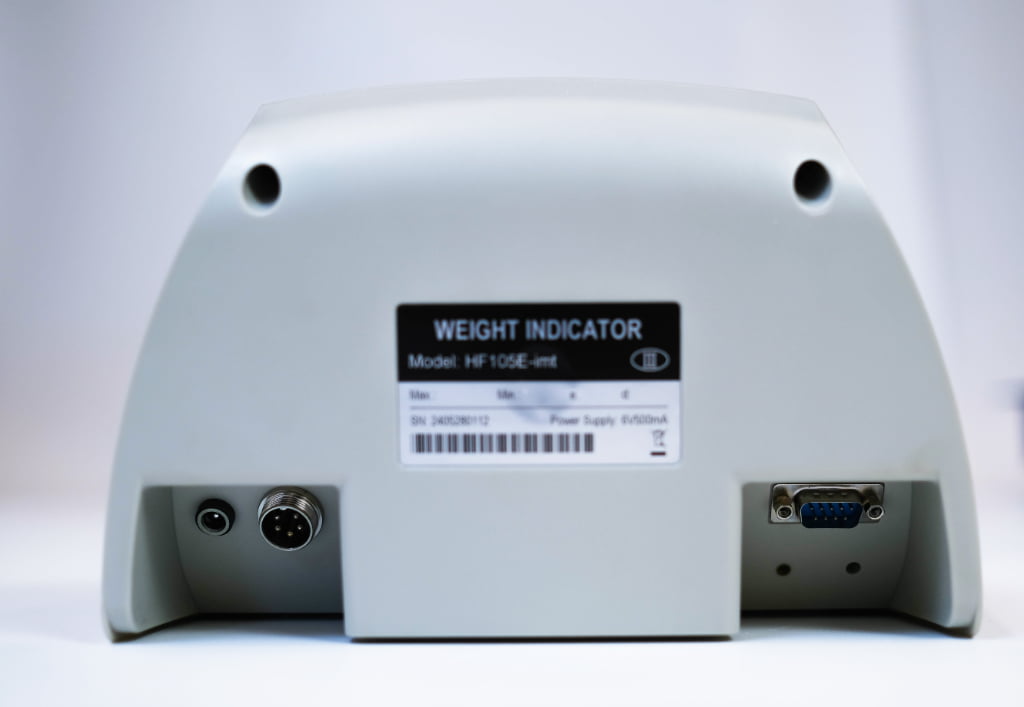

Input & communication
Signal input	Analog load cell signal
Load cell support	Up to 4 x 350 ohm load cells
Excitation voltage	3.0 Vdc typical
Measurement rate	10 measurements/s
Communication	RS232
Power & operation
Power supply	Rechargeable battery powered; external charging/power supply
Battery	Built-in 4 V / 4 Ah rechargeable lead-acid battery
Printer / version	External printer support
Key functions	Basic weighing / Structured menu / User-friendly messages / Two configurable function keys / Automatic battery management
Optional expansion	T-type pole bracket / Auto total / Calibration counter / Dual interval / Unit toggle
Dimensions	232 x 150 x 146 mm
