Pallet Jack Scales · HC-PSB

HC-PS Pallet Jack Scale Blue

The HC-PS Pallet Jack Scale transforms your material handling workflow by combining the mobility of a premium hand truck with the precision of a high-quality industrial scale. Finished in a…

Request a Quote View Specifications

Available capacities: 3000KG
Manufacturing options: OEM / ODM

HC-PS Pallet Jack Scale Blue · View 1

01 / 07

Select a view. Click the main image to enlarge.

A closer look at the product.

Review the construction and operating features for your application.

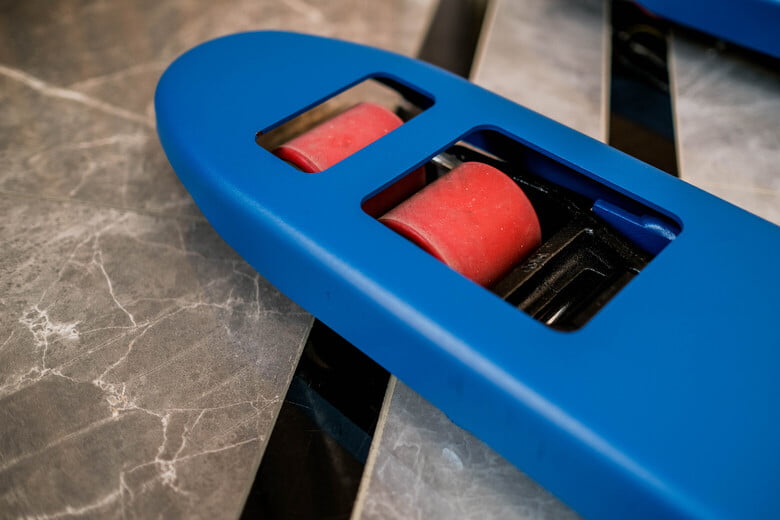

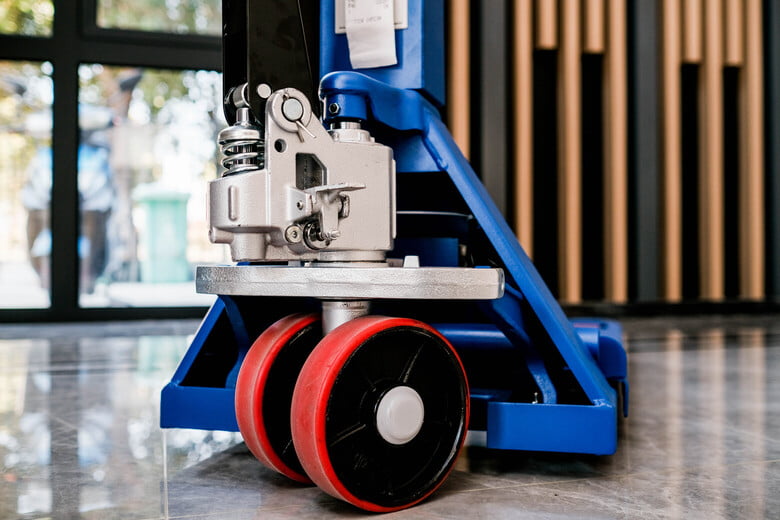

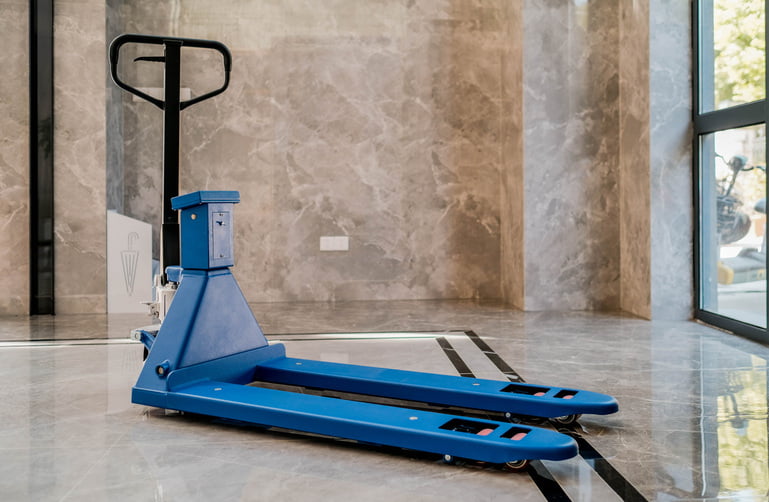

HC-PS Pallet Jack Scale Blue product view

Weigh-on-the-Go Efficiency

Integrates a high-accuracy weighing system directly into the chassis, allowing you to lift, weigh, and move loads simultaneously—saving minutes on every pallet and significantly boosting warehouse throughput.

Heavy-Duty Industrial Build

Constructed with reinforced steel and finished with a chip-resistant blue powder coating, this jack is engineered to handle capacities up to 5,000 lbs while resisting wear and tear in busy docking areas.

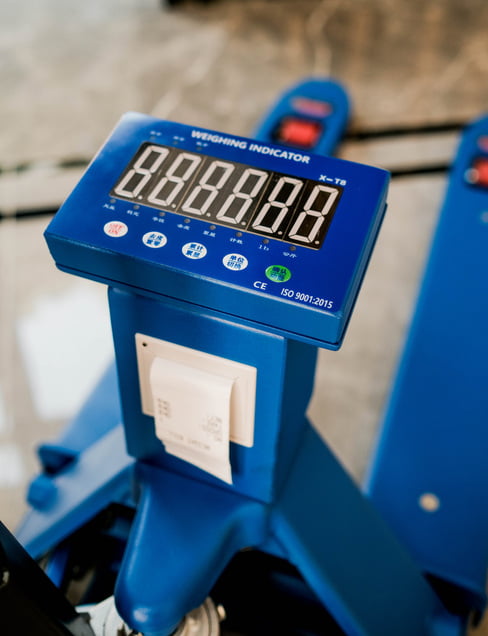

User-Friendly Digital Indicator

Equipped with a built-in, high-contrast display with straightforward function keys (Zero, Tare, Print), enabling operators to quickly obtain net weights and perform basic functions without extensive training.

For your daily workflowTraffic LogisticsWarehouse WeighingForklift Weighing

Configure your equipment

Choose your configuration.

Select the requirements you would like to discuss. Add dimensions, quantity and working conditions to your inquiry.

Required capacity

Fork width

Final capacity, dimensions and component selection are confirmed together for your application.

Select your requirements above.

Add to My Inquiry HENER product catalogueExplore the complete product range · PDF

Technical specifications
Model	HCPS-0690 (Wide Fork - 690mm) / HCPS-0560 (Narrow Fork - 560mm)
Weighing Capacity	2000 KG / 2500 KG / 3000 KG
Division Value	0.5 KG
Drive Type	Manual
Plate Material	Q235 Carbon Steel
Plate Thickness	4mm / 5mm / 6mm
Load Cells	Keli SQB / Zemic H8C
Power Supply	Rechargeable Battery, AC 187-242V, DC 6V/4AH
Operating Temperature	-10°C to +40°C
Packing Method	2pcs / 4pcs / 6pcs in one Wooden Case
