HENER · C23

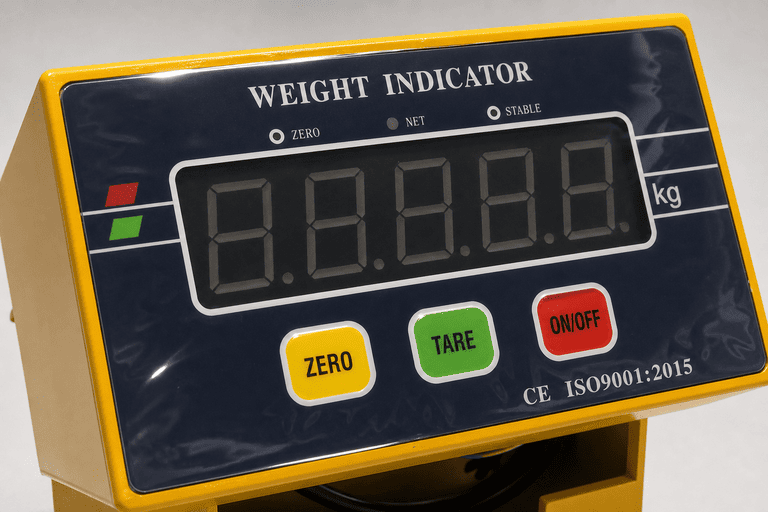

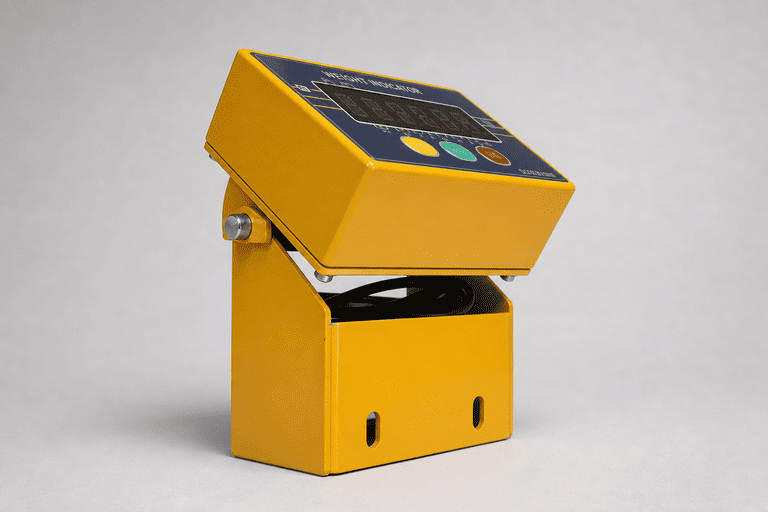

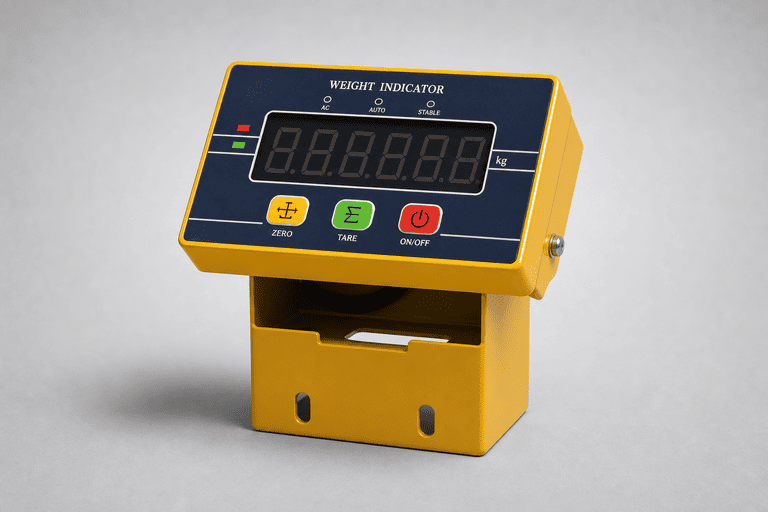

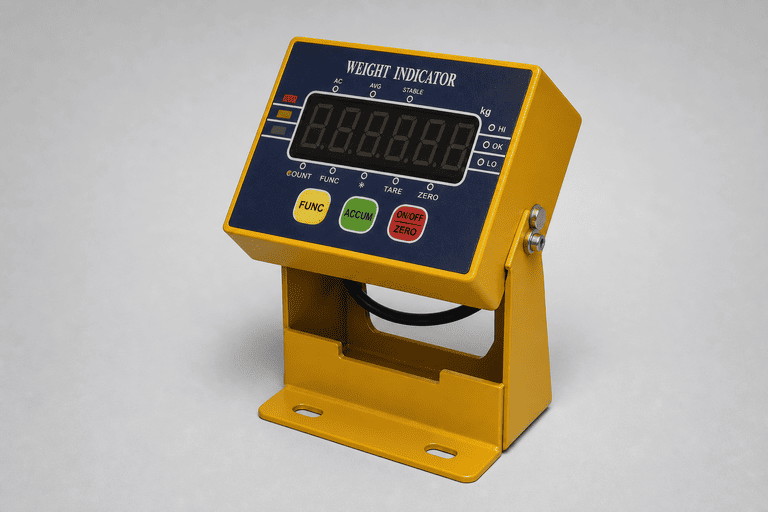

C23 Weighing Indicator

Explore HENER Indicator specifications and connection requirements for your weighing application.

C23 · View 1

01 / 05

Select a view. Click the main image to enlarge.

From weight to useful information.

Review the display, operating functions and connections that bring weighing data into your workflow.

5-digit 1 inch ultra-bright LED display

Wireless. Confirm the required interface in your configuration.

Infrared remote control / Division adjustment / No-load full-scale setup / Anti-vibration filtering / Tare

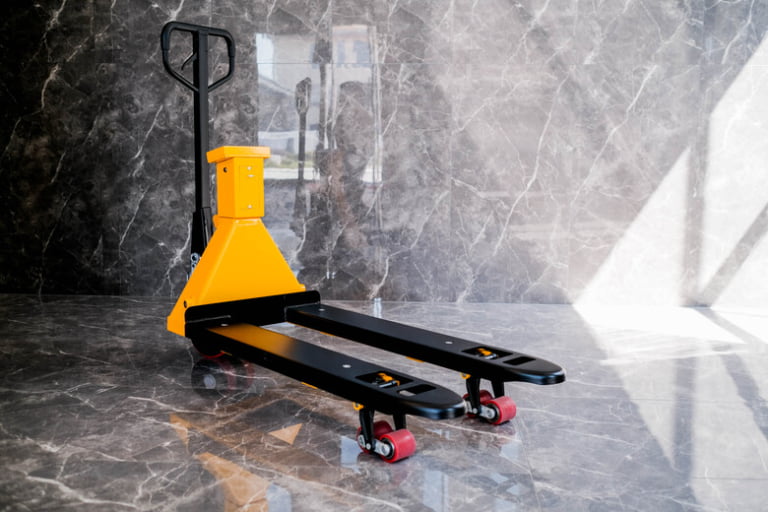

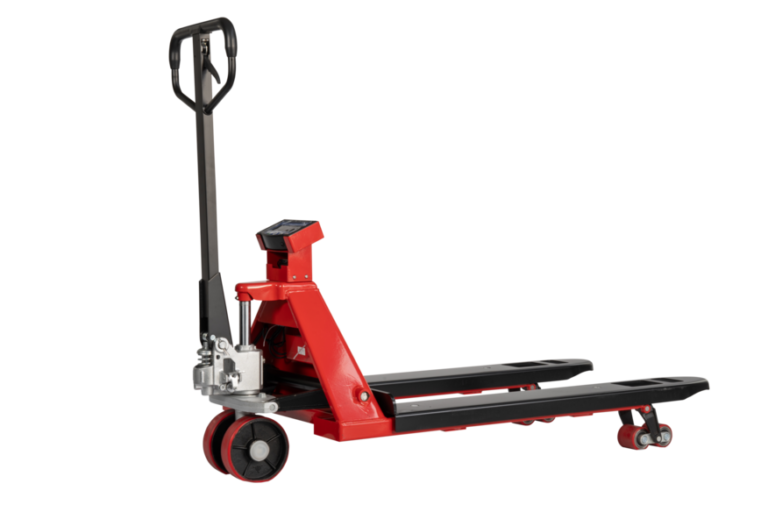

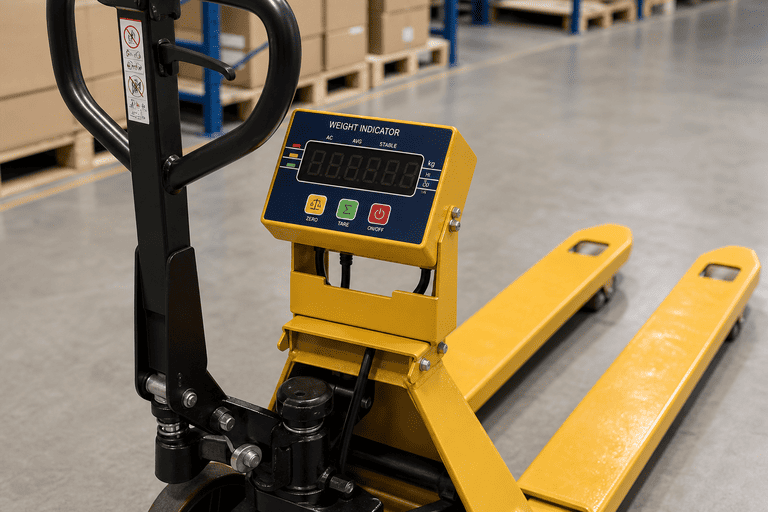

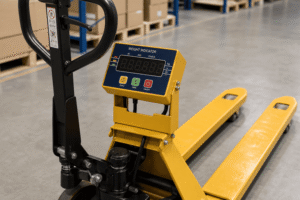

For your daily workflowPallet Jack scale

Configure your equipment

Select your communication and application requirements. We can discuss the functions and configuration your system needs.

Required communication

Application

Final specifications, connections and configuration are confirmed together for your application.

Select your requirements above.

Technical specifications
Model & display
Model	C23
Brand	HENER
Display	5-digit 1 inch ultra-bright LED display
Housing	Pallet Jack Scale indicator housing for mobile weighing
Input & communication
Signal input	24-bit Sigma-Delta A/D load cell signal
Load cell support	Analog load cell input; suggested 1 to 4 load cells depending on scale structure
Excitation voltage	DC 5 V
Measurement rate	Stable reading in less than 8 s
Communication	Wireless
Power & operation
Power supply	Rechargeable battery powered
Battery	Low-power design; more than 100 hours continuous operation under full charge
Printer / version	External printer support
Key functions	Infrared remote control / Division adjustment / No-load full-scale setup / Anti-vibration filtering / Tare
Optional expansion	Wireless display / Wireless PC connection / Wireless printer
