HENER · T10

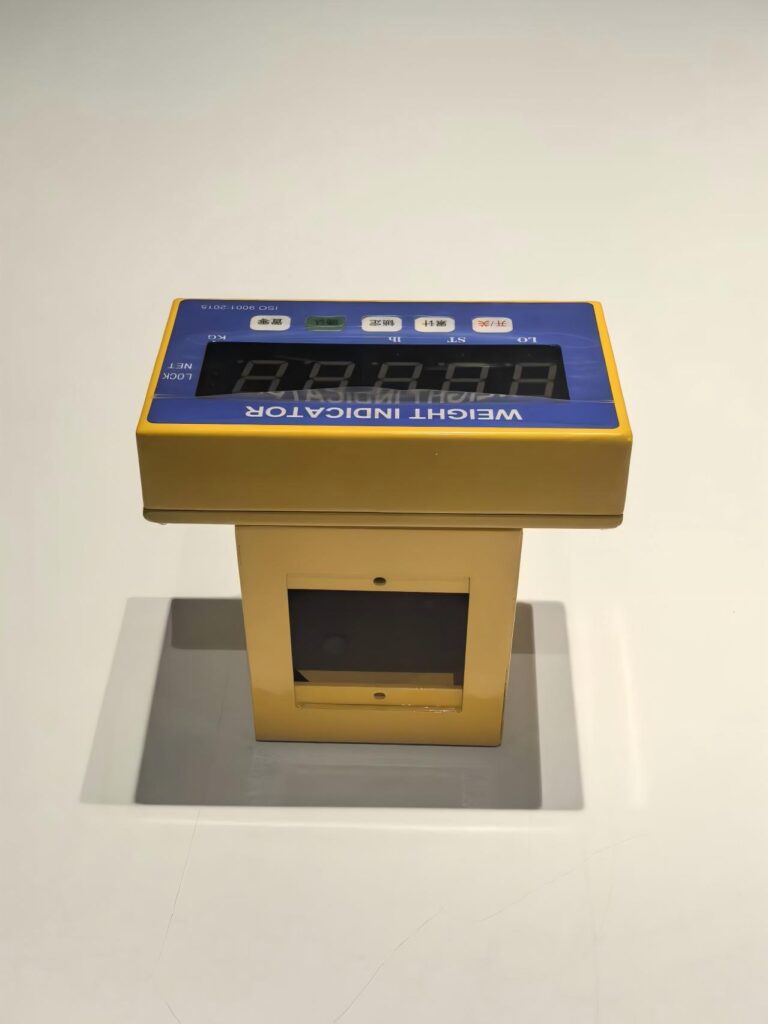

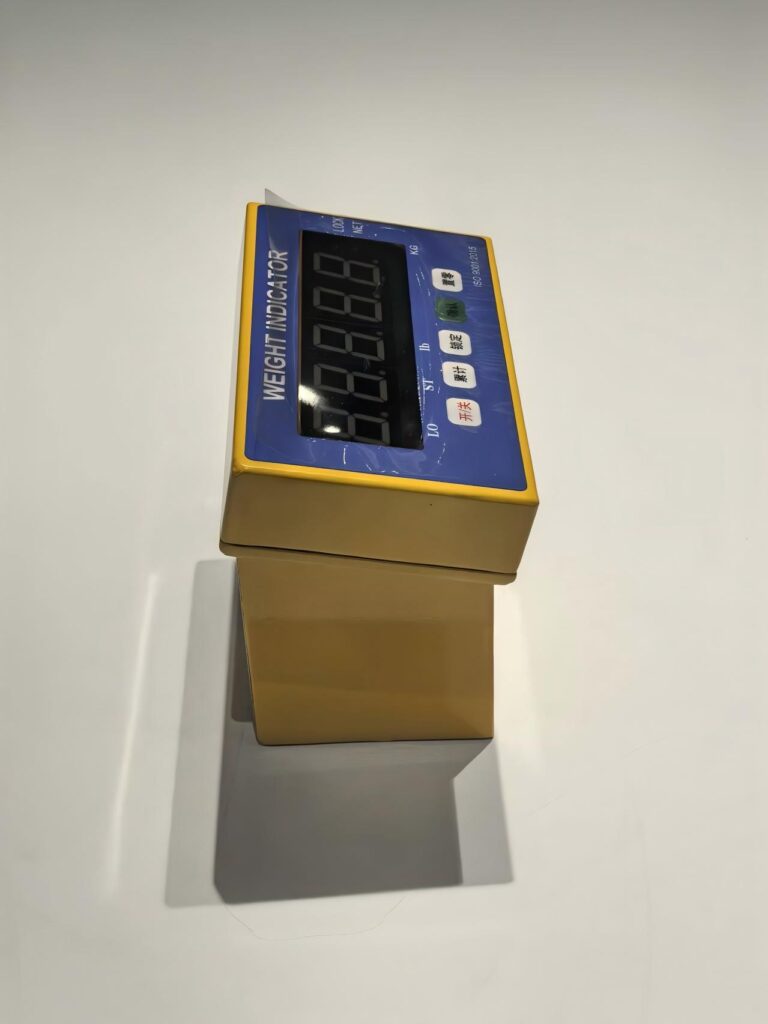

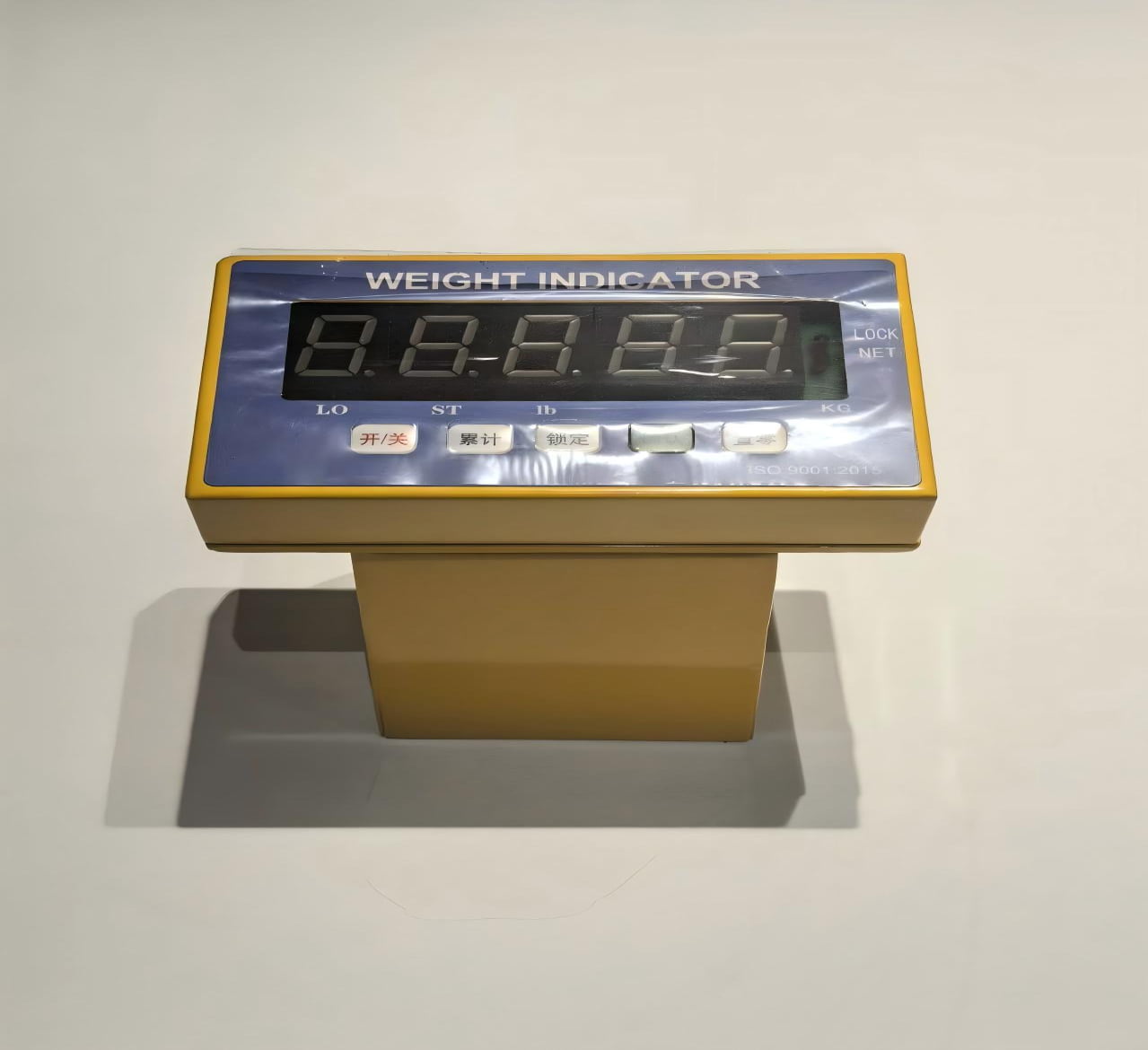

T10 Weighing Indicator

Explore HENER Indicator specifications and connection requirements for your weighing application.

T10 · View 1

01 / 03

Select a view. Click the main image to enlarge.

From weight to useful information.

Review the display, operating functions and connections that bring weighing data into your workflow.

6-digit high-brightness LED display

RS232. Confirm the required interface in your configuration.

Accumulation / Tare / Zero / Kg/lb switching / Weight hold

For your daily workflowPallet Jack scale

Configure your equipment

Select your communication and application requirements. We can discuss the functions and configuration your system needs.

Required communication

Application

Final specifications, connections and configuration are confirmed together for your application.

Select your requirements above.

Technical specifications
Model & display
Model	T10
Brand	HENER
Display	6-digit high-brightness LED display
Housing	Compact pallet jack scale indicator housing
Input & communication
Signal input	2-3 mV/V analog load cell signal
Load cell support	Analog load cell input, suggested 1 to 4 load cells
Excitation voltage	DC 5 V
Measurement rate	10 measurements/s
Communication	RS232
Power & operation
Power supply	AC 220 V +/-10%; DC/battery option optional
Battery	Optional rechargeable battery
Printer / version	External printer support
Key functions	Accumulation / Tare / Zero / Kg/lb switching / Weight hold
Optional expansion	RS232 output / External printer / Battery configuration
