HENER · X-T8

X-T8 Weighing Indicator

Explore HENER Indicator specifications and connection requirements for your weighing application.

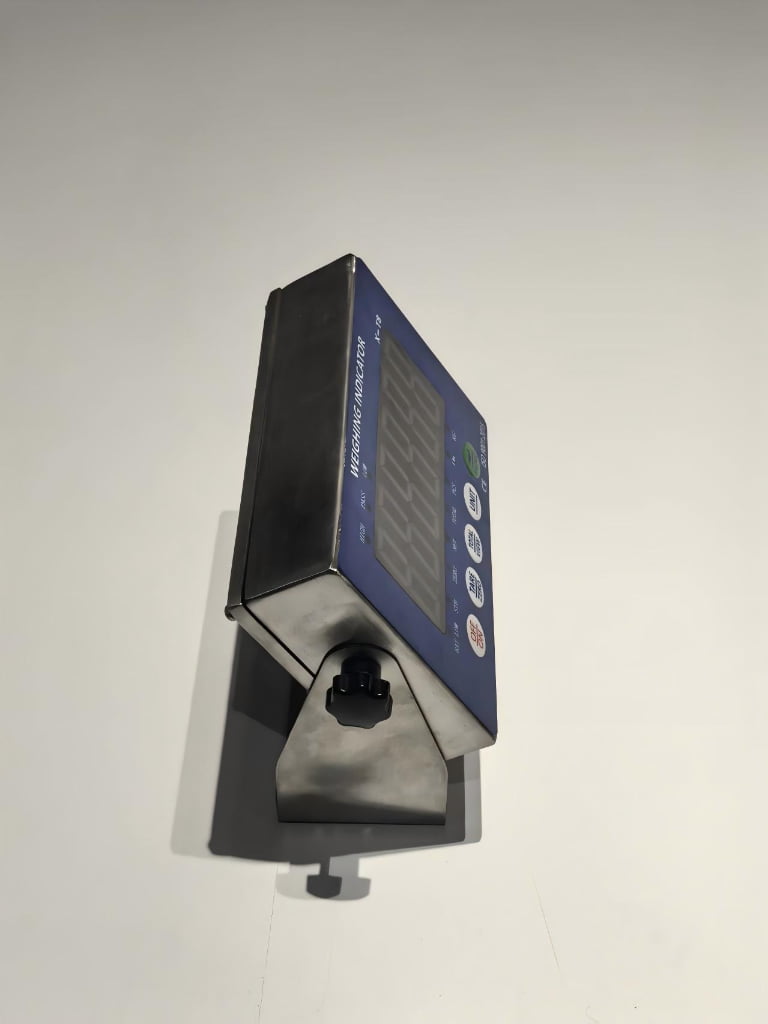

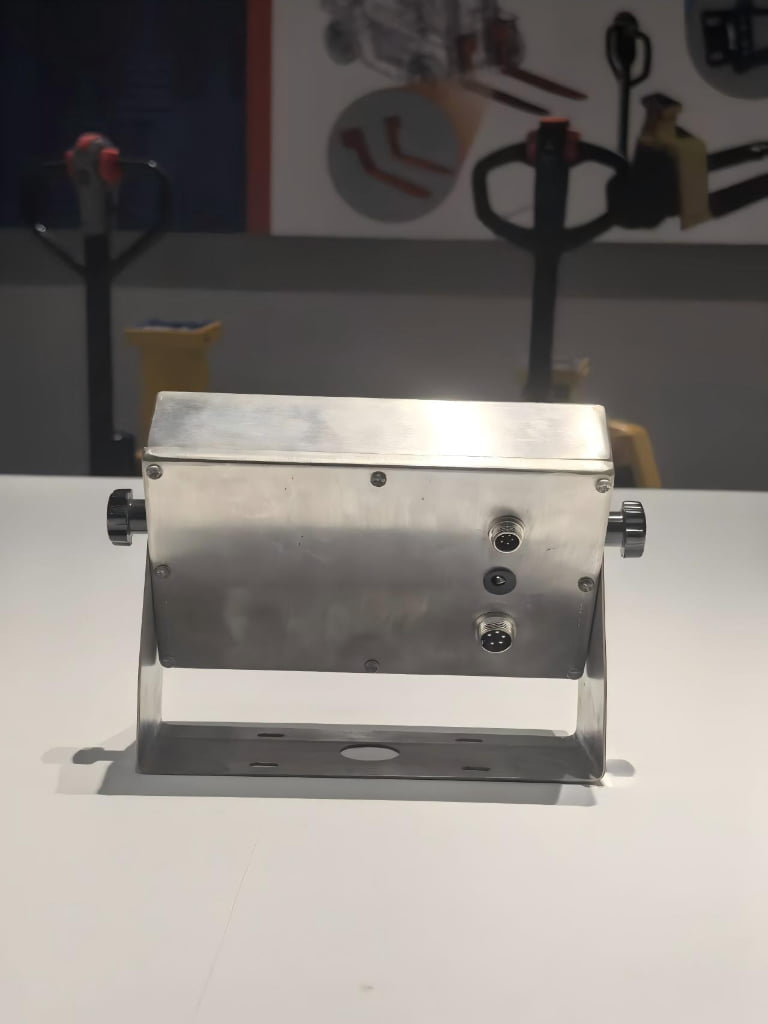

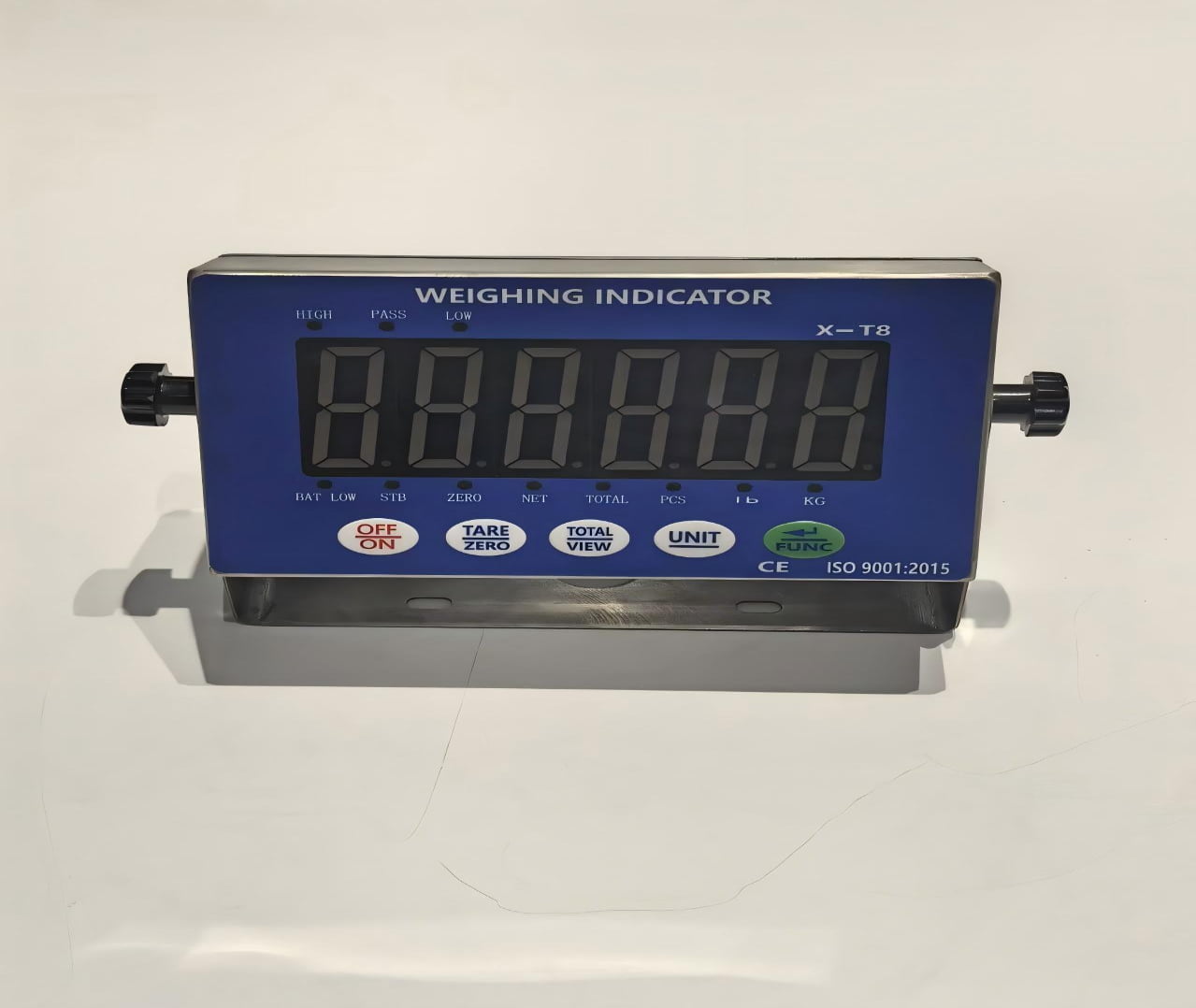

X-T8 · View 1

01 / 03

Select a view. Click the main image to enlarge.

From weight to useful information.

Review the display, operating functions and connections that bring weighing data into your workflow.

Large multifunction LED display window

RS232; RS485. Confirm the required interface in your configuration.

Weighing / Accumulation / Tare / Zero / Counting

For your daily workflowPallet Jack scale

Configure your equipment

Select your communication and application requirements. We can discuss the functions and configuration your system needs.

Required communication

Application

Final specifications, connections and configuration are confirmed together for your application.

Select your requirements above.

Technical specifications
Model & display
Model	X-T8
Brand	HENER
Display	Large multifunction LED display window
Housing	Stainless steel housing, mounting bracket
Input & communication
Signal input	1.0-3.0 mV/V analog load cell signal
Load cell support	1 to 4 load cells
Excitation voltage	DC 5 V
Measurement rate	10 measurements/s
Communication	RS232; RS485
Power & operation
Power supply	AC 220 V plus built-in rechargeable battery
Battery	Built-in rechargeable battery; low voltage auto power-off below 5.5 V
Printer / version	External printer support
Key functions	Weighing / Accumulation / Tare / Zero / Counting
Optional expansion	RS485 expansion / External serial printer / Power/load cell/communication connectors
