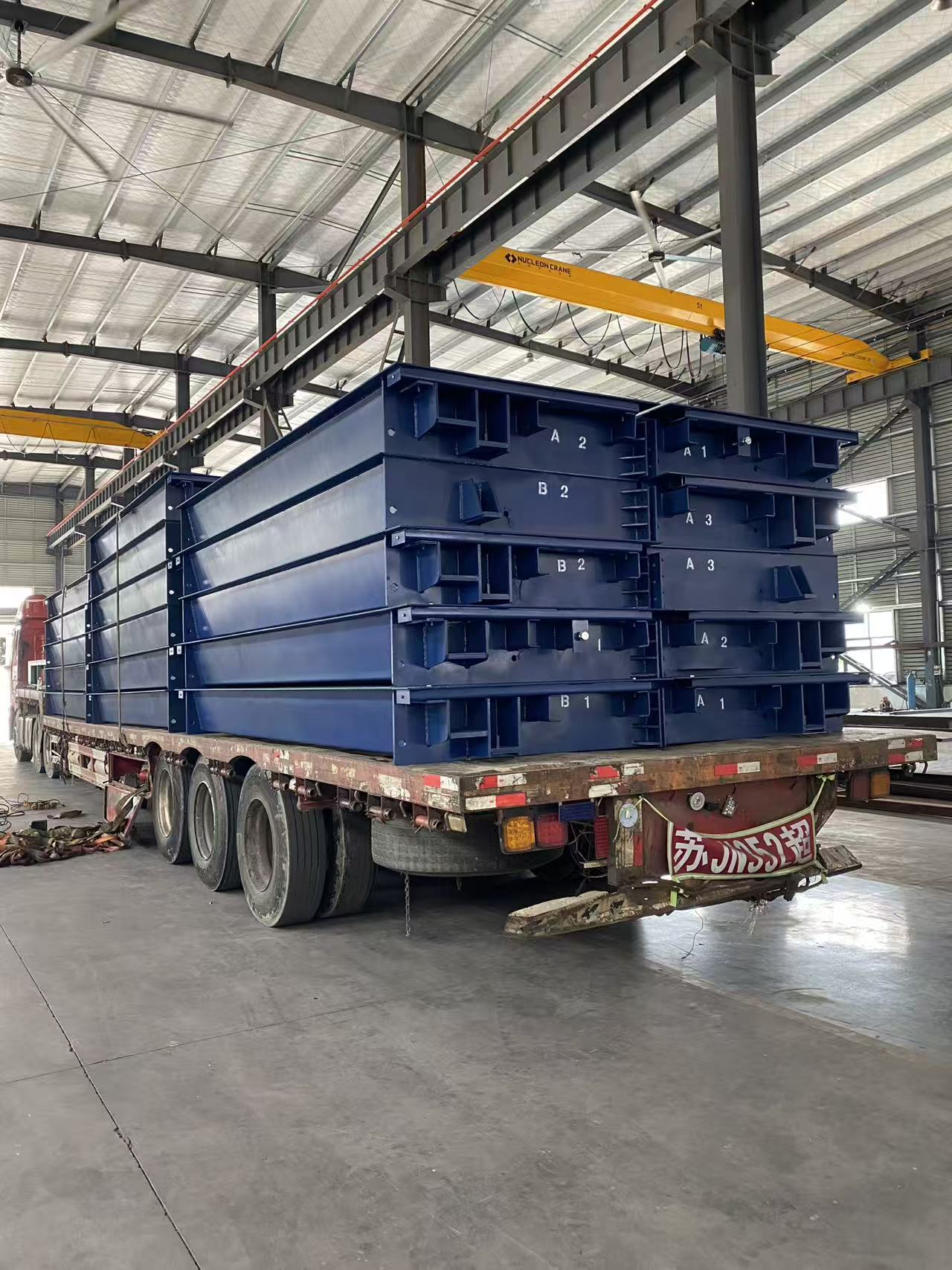

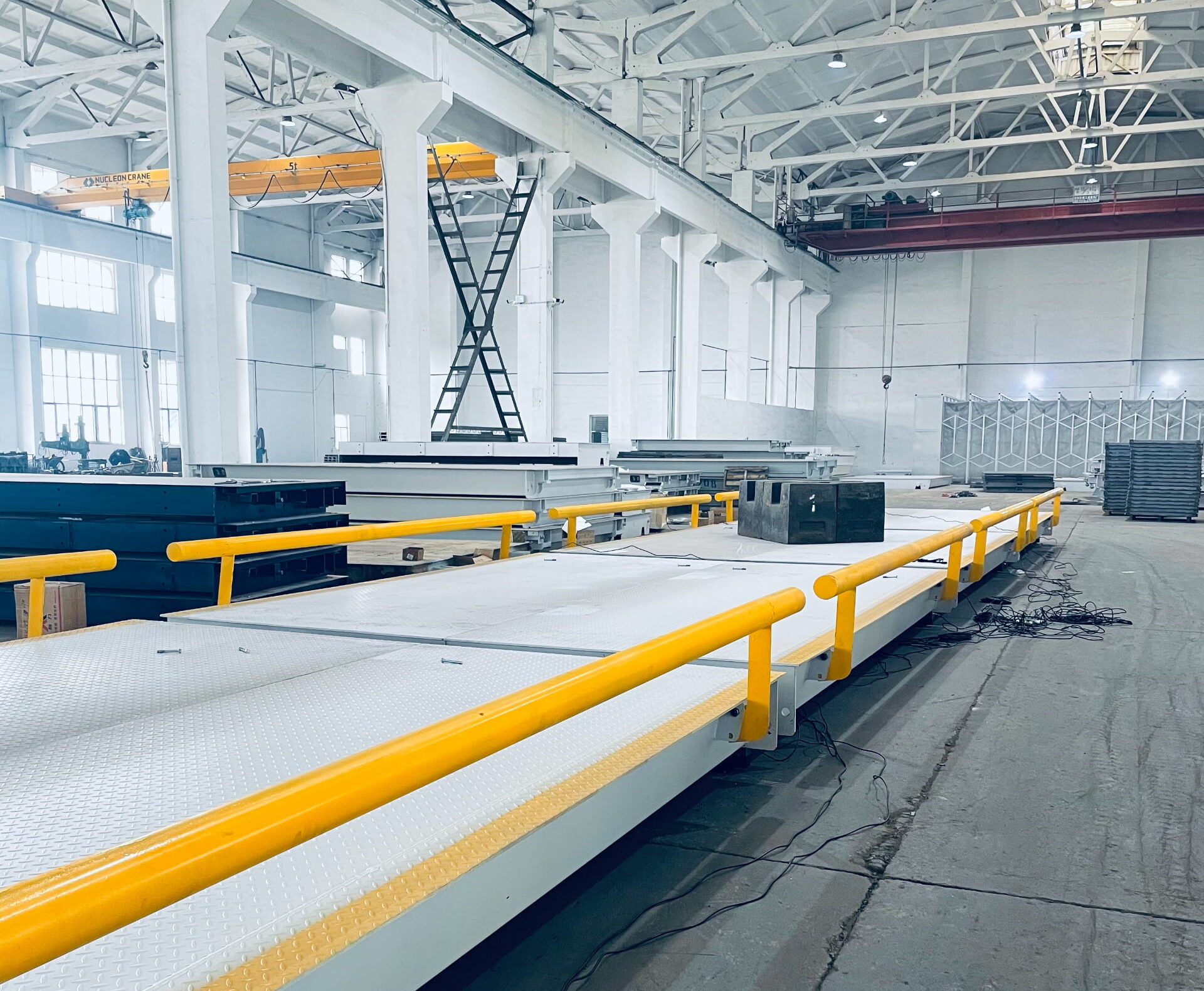

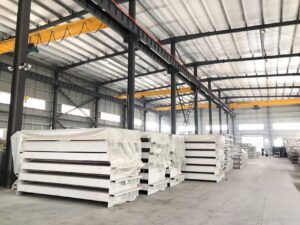

Modular steel deck.
A reinforced steel structure forms the vehicle weighing platform.

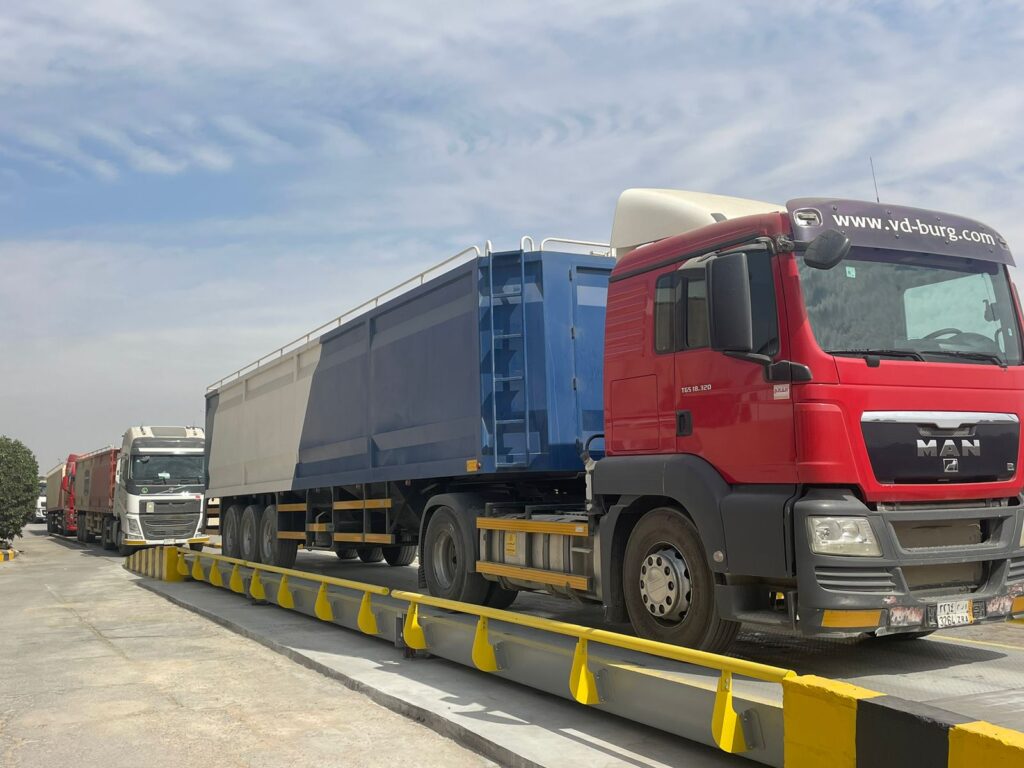

Truck Scales · SCS-AG
Above-Ground Weighbridge
An above-ground steel weighbridge for vehicle weighing, with open access around the deck for inspection and maintenance.
- Available capacities
- Max: 200T
- Manufacturing options
- Discuss requirements
Select a view. Click the main image to enlarge.

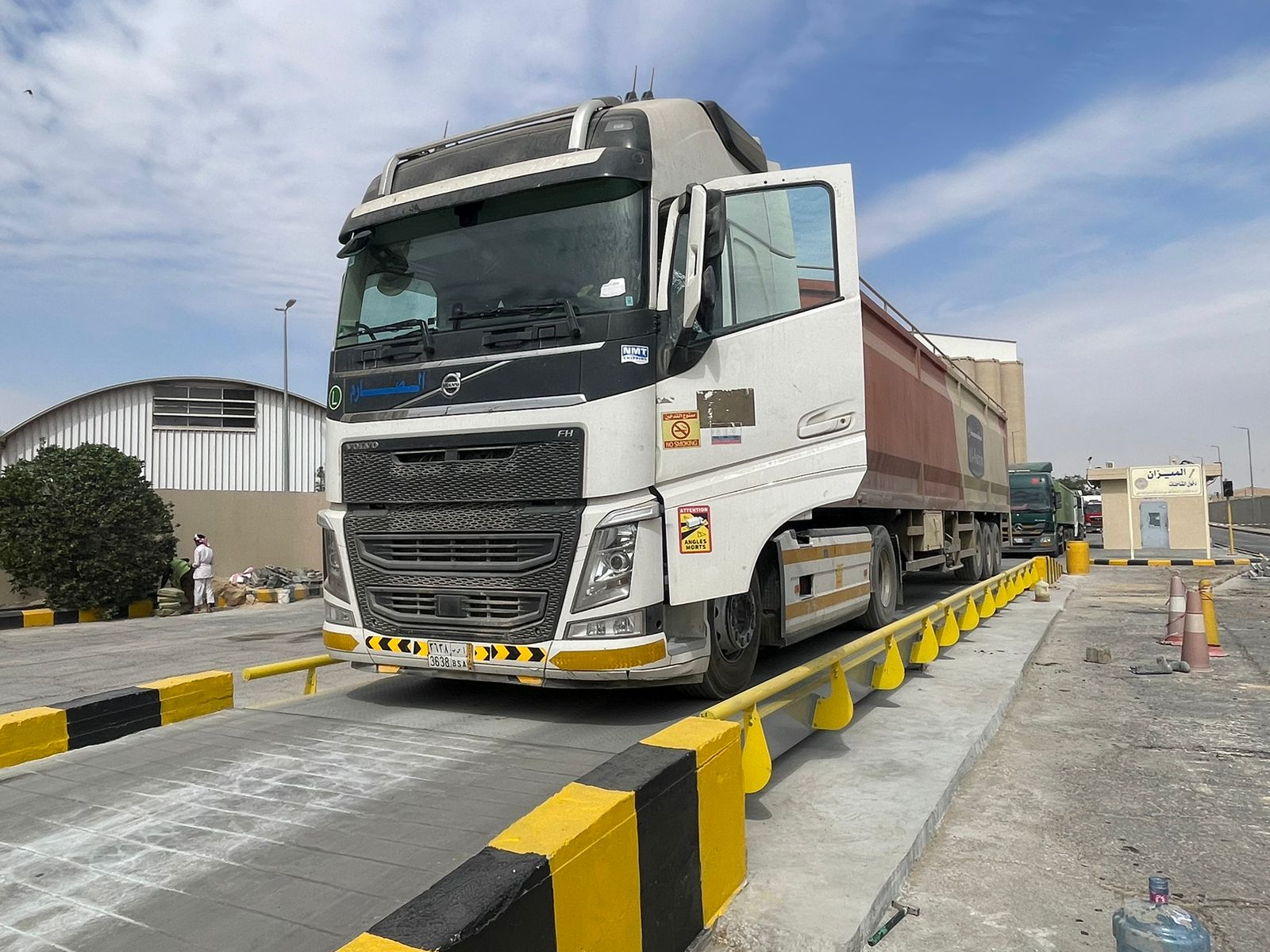

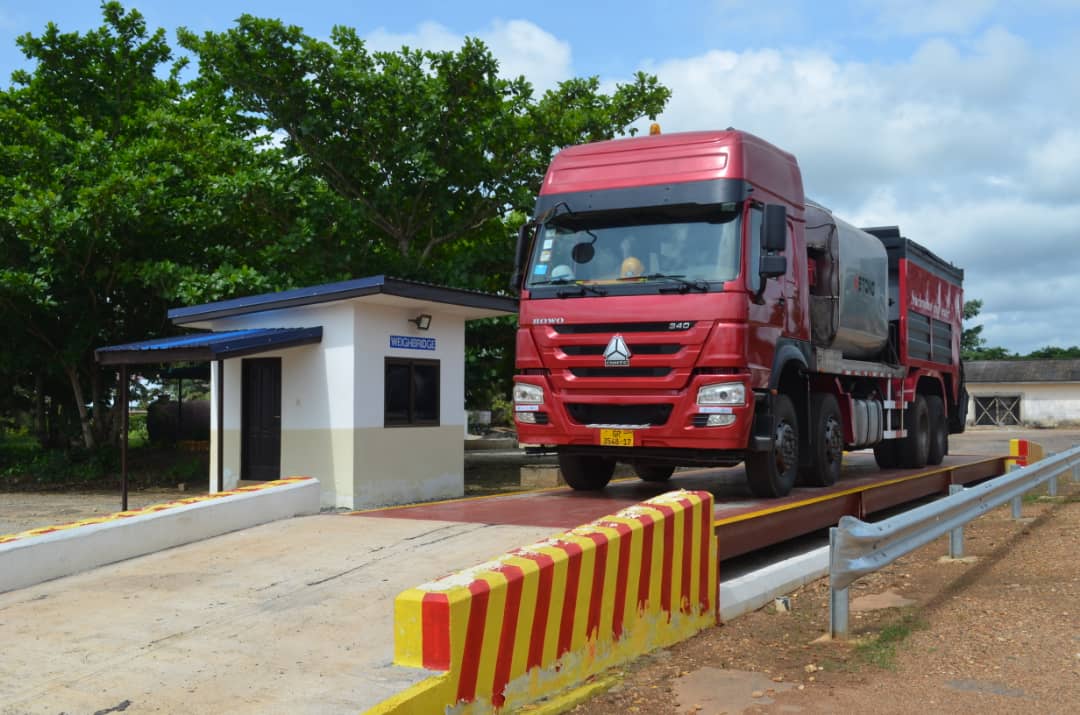

A platform for vehicle weighing.
Review the deck layout, access requirements and equipment selection for your site.

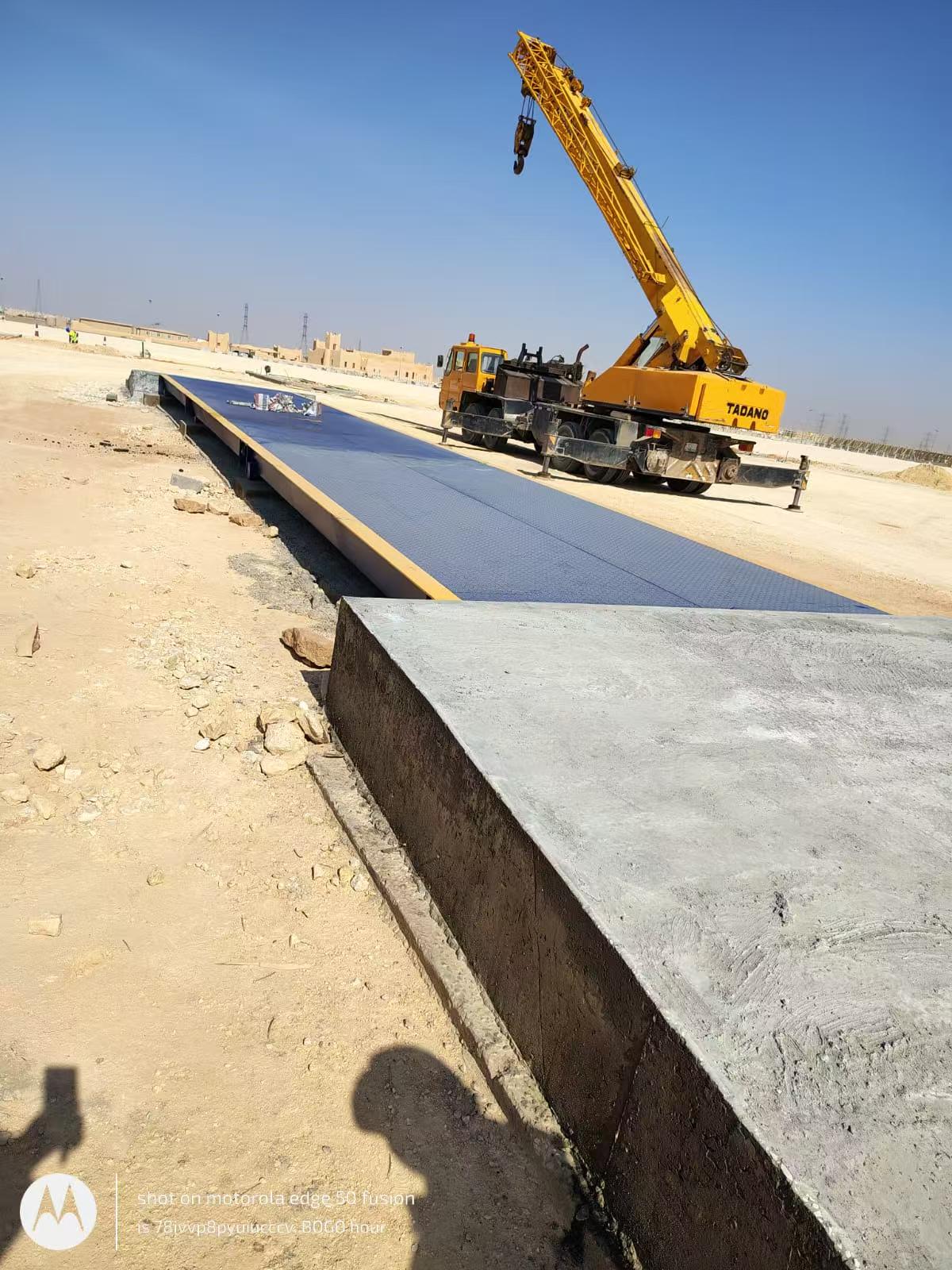

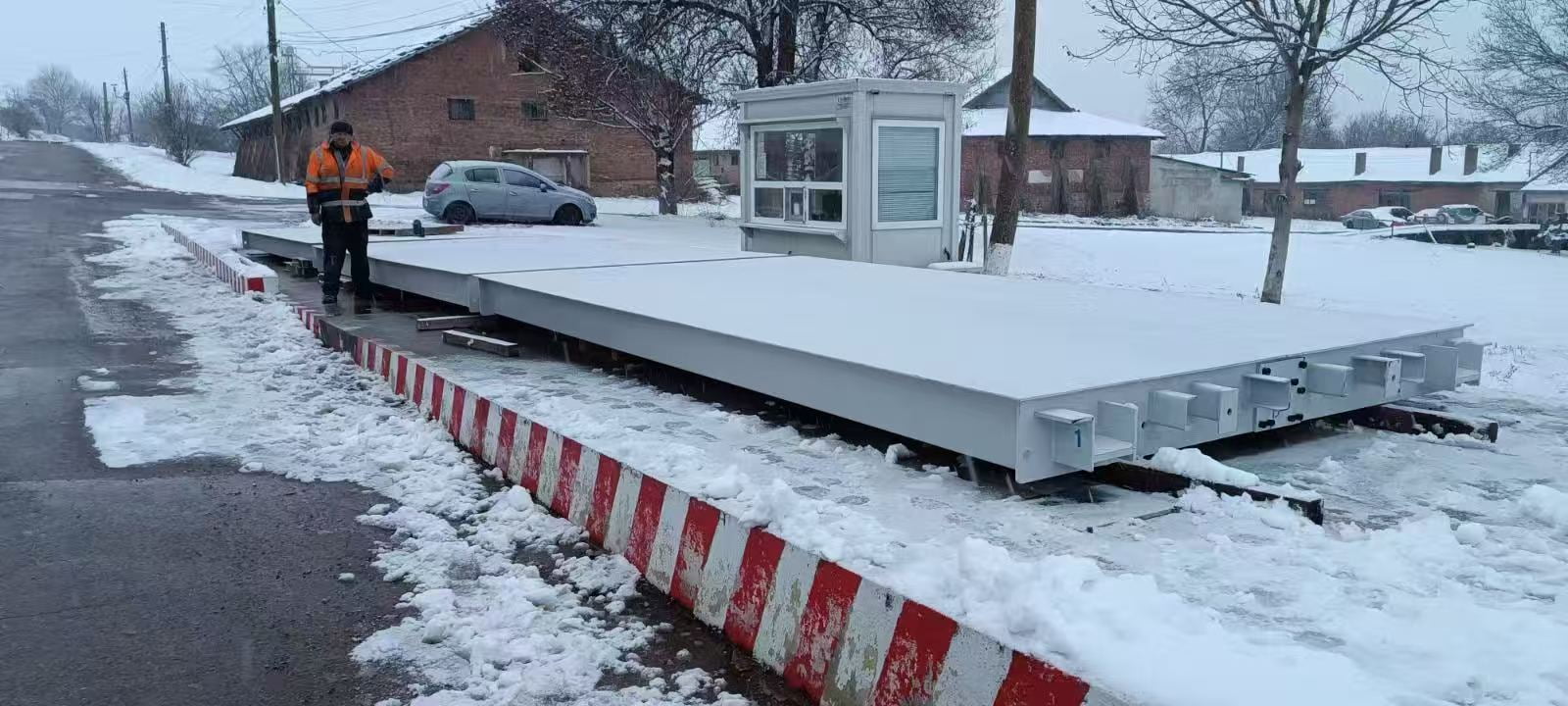

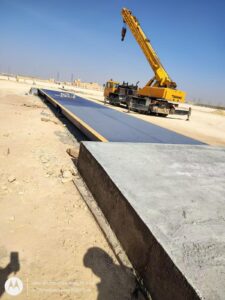

Above-ground installation.
A pitless layout keeps the weighing deck above the surrounding ground.
Accessible for inspection.
Open sides provide access to the area beneath the deck.
For your daily workflowVehicle weighingSite logisticsIndustrial operations
Configure your equipment
Your site. Your weighbridge.
Select the requirements you would like to discuss. Add dimensions, quantity and working conditions to your inquiry.
Final capacity, dimensions and component selection are confirmed together for your application.
Select your requirements above.
Add to My Inquiry HENER product catalogueExplore the complete product range · PDF| Max Capacity | 20t ~ 200t |
|---|---|
| Material | Q235 Steel |
| Division Value | 10/20/50kg |
| Painting | Anti Rust and Anti-Corrosion |
| Width(m) | 2/3/3.4/Customize |
| Length(m) | 4/7/9/10/12/14/16/18/21/24/Customize |
| Load Cell Type | Analog Load Cell / Digital Load Cell |
| Load Cell Brand | KELI/ ZEMIC/ HENER |
| Power | 220V/50Hz |
| Work Temperature | -35℃ ~ +70℃ |
| Relative Humidity | ＜ 95% |
Final dimensions, functions and component selection depend on the application and ordered configuration.
Complete the weighing system.
Explore indicators and load cells for your equipment. Confirm the complete combination for your application.
Weighing indicators
Display, operation and data output.
HF208HF-208 Weight Indicator With PrinterView details ↗
HF310HF-310 Digital Weight IndicatorView details ↗

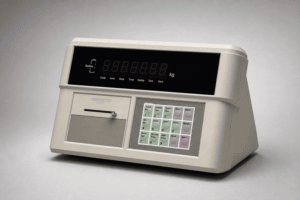

A9/A9PA9/A9P Weighbridge IndicatorView details ↗

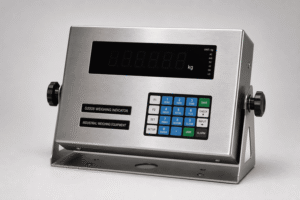

D2008D2008 Digital Weighbridge IndicatorView details ↗

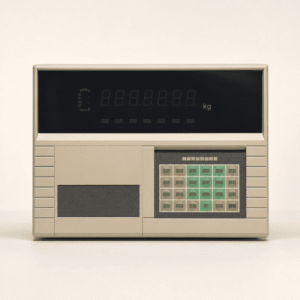

DS3DS3 Digital Weighbridge IndicatorView details ↗

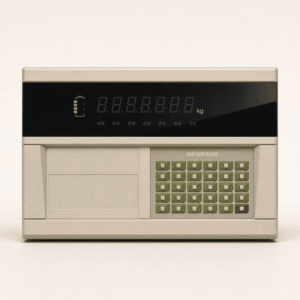

DS8/DS8PDS8/DS8P Anti-Cheating Digital Weighbridge IndicatorView details ↗

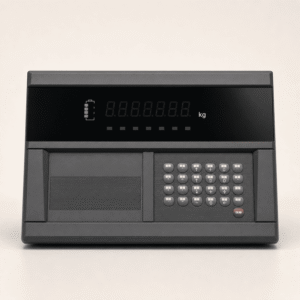

DS10/DS10PDS10/DS10P IoT Digital Weighbridge IndicatorView details ↗
Load cells
The sensing components of your scale.
DHM14CDHM14C YAOHUA Digital Column Load CellView details ↗
QSQS KELI Double-Ended Shear Beam Load CellView details ↗
ZSFZSF KELI Column Load CellView details ↗
Final component selection depends on capacity, mounting, signal type and the ordered configuration.
Related products
Explore more products in Truck Scales.
Let's specify your weighbridge.
Share your capacity, dimensions and working environment. We can discuss equipment selection, OEM/ODM and integration requirements.
Above-Ground WeighbridgeModel SCS-AG · Max: 200T
