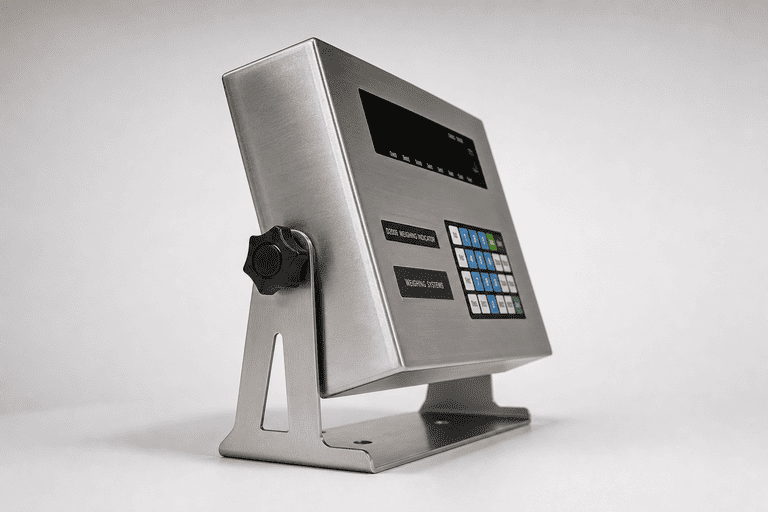

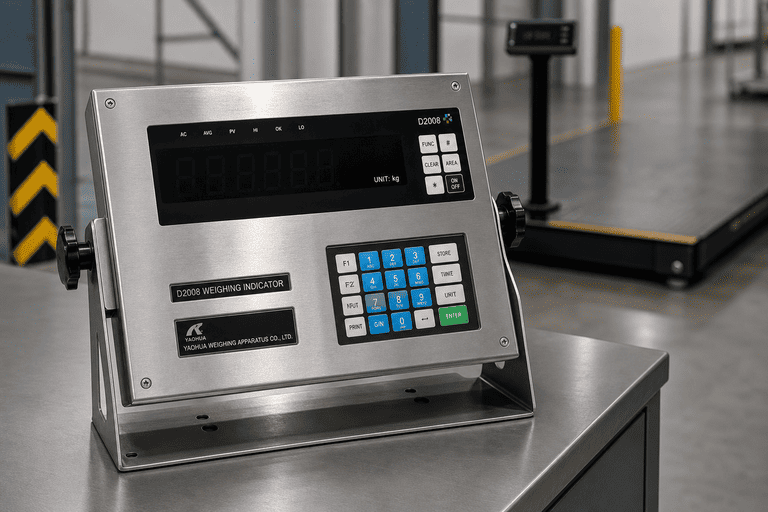

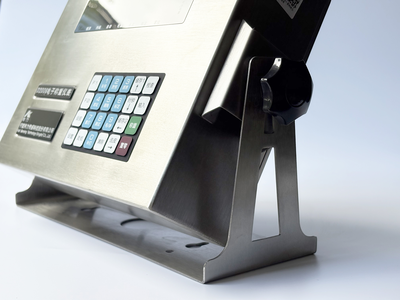

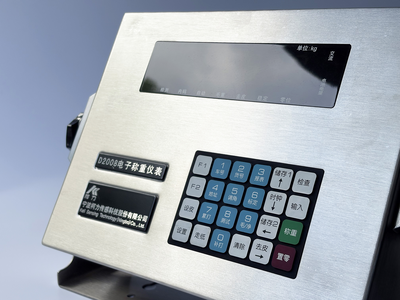

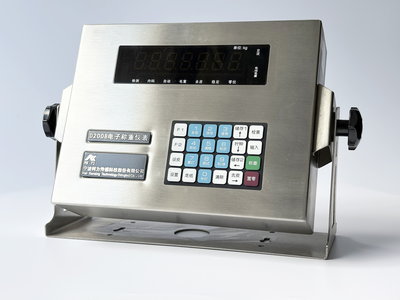

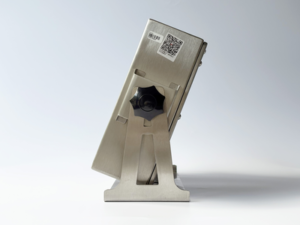

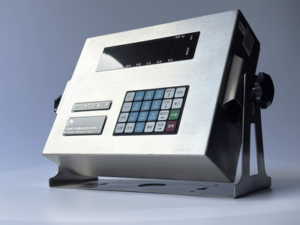

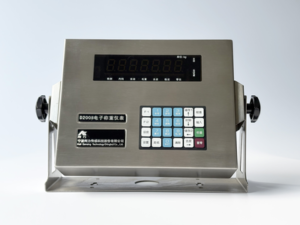

D2008 Weighing Indicator

Explore Keli Indicator specifications and connection requirements for your weighing application.

D2008 · View 1

01 / 07

Select a view. Click the main image to enlarge.

From weight to useful information.

Review the display, operating functions and connections that bring weighing data into your workflow.

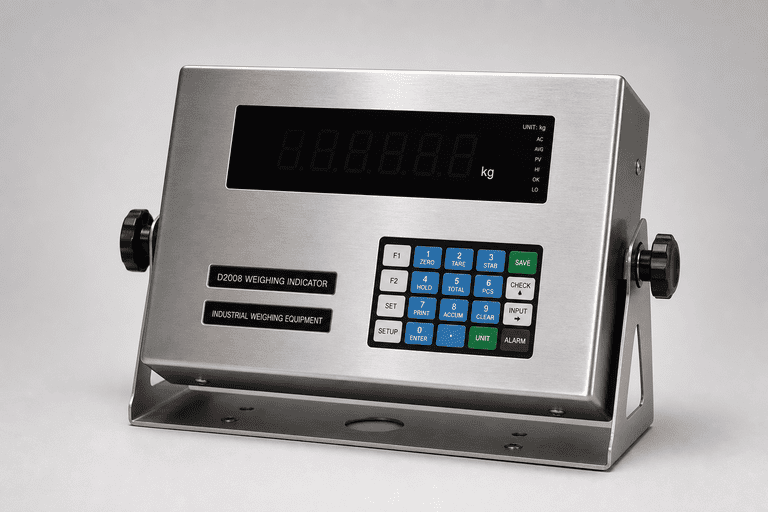

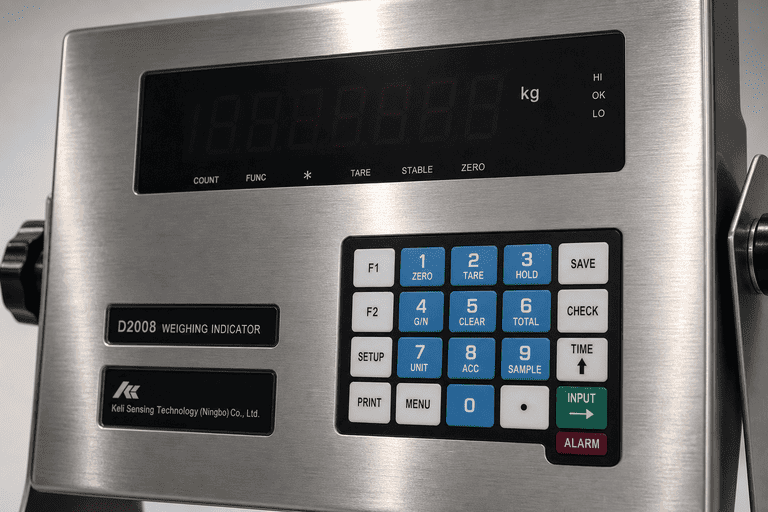

7-digit 0.8 inch LED display with 7 status indicators

RS232; RS485; 20 mA loop; Modbus. Confirm the required interface in your configuration.

Automatic corner adjustment / Shaft/corner coefficient calibration / Encrypted anti-cheating communication / Record storage / Custom printing

For your daily workflowTruck ScaleWeighbridge

Configure your equipment

Select your communication and application requirements. We can discuss the functions and configuration your system needs.

Required communication

Application

Final specifications, connections and configuration are confirmed together for your application.

Select your requirements above.

Technical specifications
Model & display
Model	D2008
Brand	Keli
Display	7-digit 0.8 inch LED display with 7 status indicators

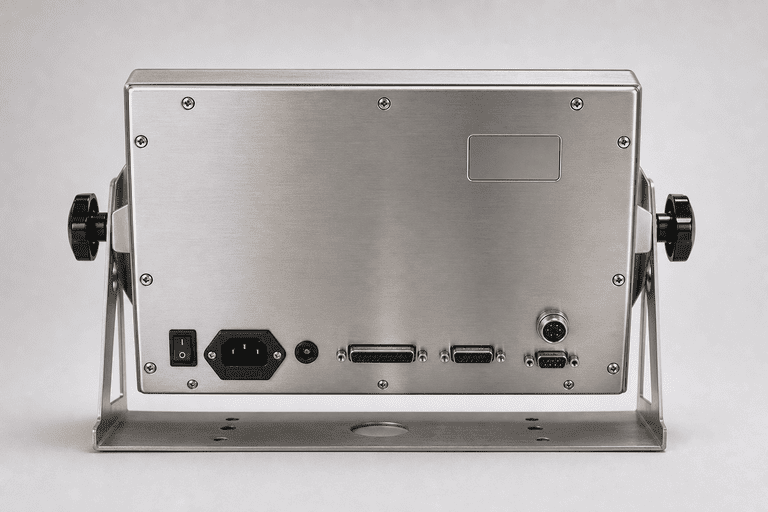

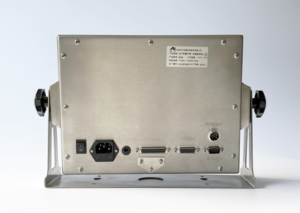

Housing	weighbridge housing, isolated/static-protected interfaces
Input & communication
Signal input	RS485 digital load cell interface
Load cell support	1 to 16 digital load cells
Excitation voltage	DC 12 V / 750 mA digital sensor supply
Measurement rate	Digital transmission 9600/19200 bps
Communication	RS232; RS485; 20 mA loop; Modbus
Power & operation
Power supply	AC 110-220 V, 50 Hz
Battery	Emergency auxiliary DC 12 V / 7 Ah rechargeable battery
Printer / version	External printer support
Key functions	Automatic corner adjustment / Shaft/corner coefficient calibration / Encrypted anti-cheating communication / Record storage / Custom printing
Optional expansion	C/E/K protocol digital sensors / JMQ encryption / Modbus / Remote display / External printer
