KELI · ZSF

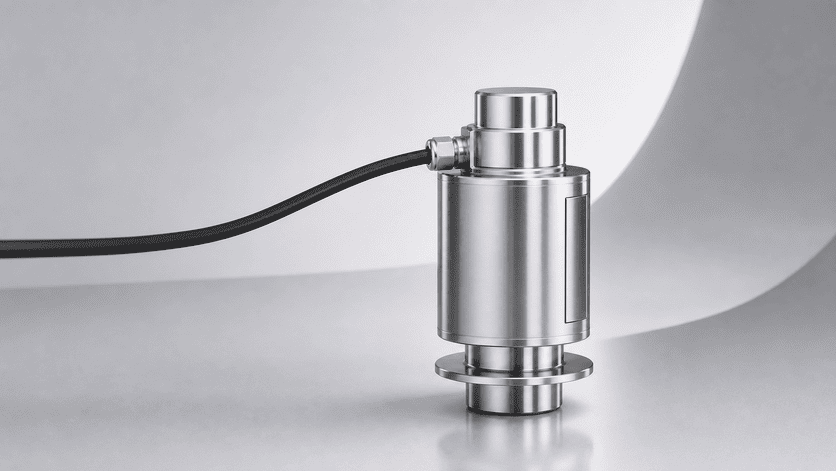

ZSF Load Cell

Explore KELI Load Cell specifications and connection requirements for your weighing application.

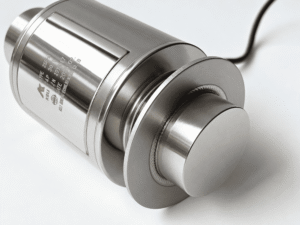

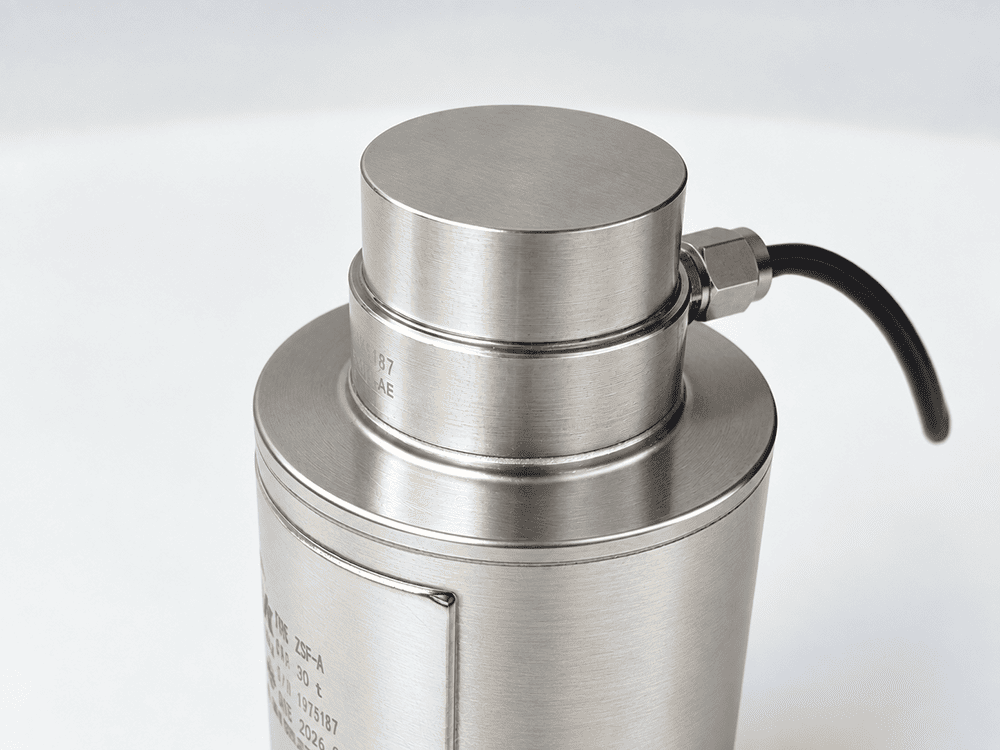

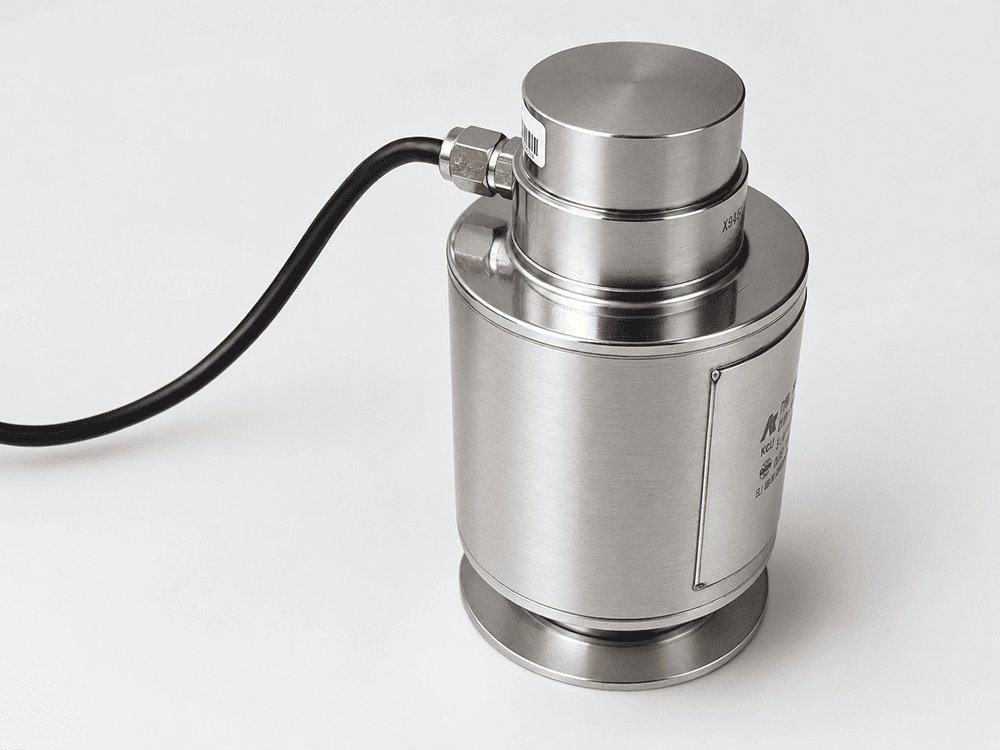

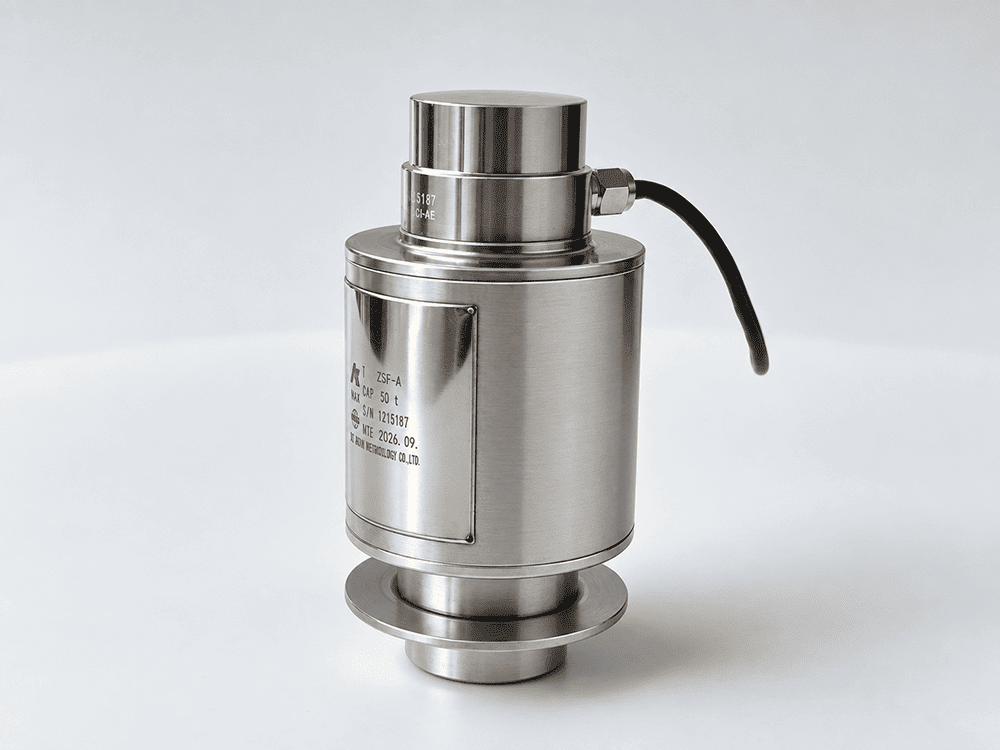

ZSF · View 1

01 / 07

Select a view. Click the main image to enlarge.

Built into your weighing system.

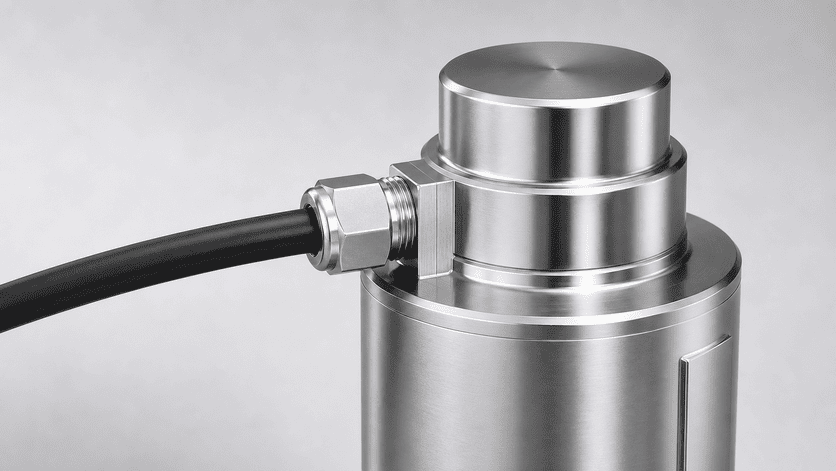

Look closer at the sensing component, its connection and the details needed for equipment integration.

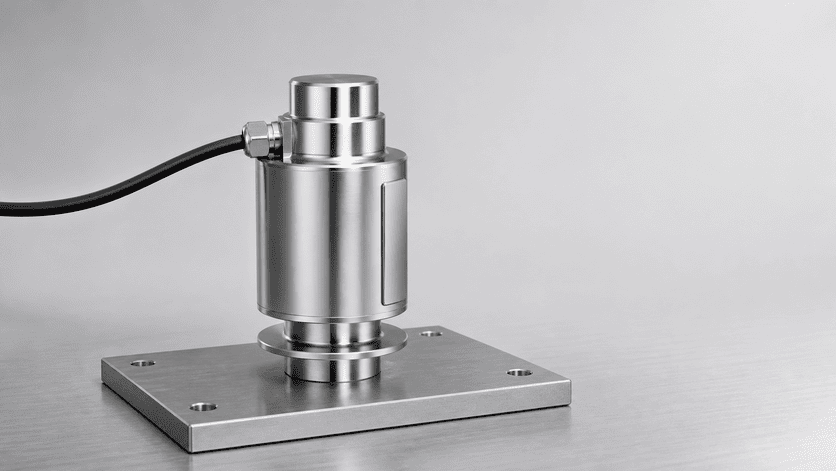

Alloy Steel / Stainless Steel. Match the mounting arrangement to your equipment.

2.0 +/-0.002 mV/V. Confirm the indicator input and excitation together.

8 m (10 t); 10 m (15 t); 12 m (20-25 t); 14 m (30 t); 16 m (40-50 t)

For your daily workflowTruck Scale

Configure your equipment

Select the required capacity and application. Include mounting details and connection requirements in your inquiry.

Required capacity

Application

Final specifications, connections and configuration are confirmed together for your application.

Select your requirements above.

Technical specifications
Model & capacity
Model	ZSF
Brand	KELI
Rated capacity	10 / 15 / 20 / 25 / 30 / 40 / 50 t
Material	Alloy Steel / Stainless Steel
Signal & connection
Rated output	2.0 +/-0.002 mV/V
Excitation voltage	10-12 VDC
Cable	8 m (10 t); 10 m (15 t); 12 m (20-25 t); 14 m (30 t); 16 m (40-50 t)
Wiring / interface	4-wire: Exc+ red, Exc- black, Sig+ green, Sig- white
Installation
Temperature range	Compensated -10 to +40℃; operating -30 to +70℃
Dimensions	84 mm * 84 mm * 240 mm
