A clear weight display.
LED numeric display with status indication
Yaohua · DS8/DS8P

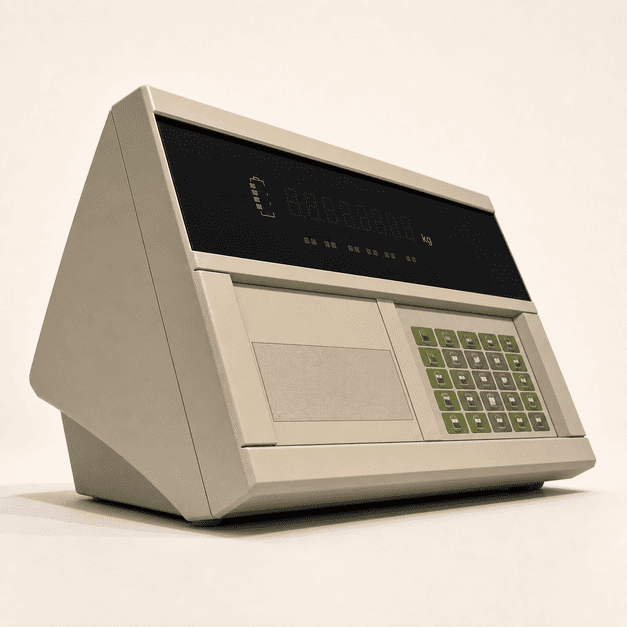

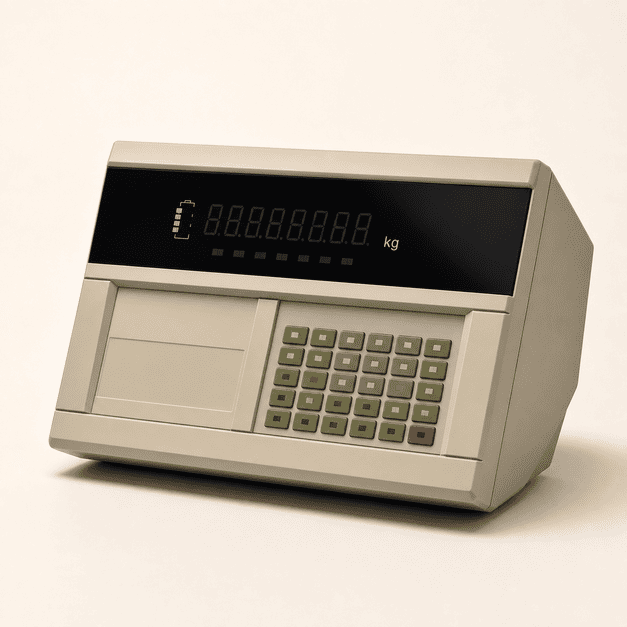

DS8/DS8P Weighing Indicator
Explore Yaohua Indicator specifications and connection requirements for your weighing application.
- Model
- DS8/DS8P
- Brand
- Yaohua
Select a view. Click the main image to enlarge.
From weight to useful information.
Review the display, operating functions and connections that bring weighing data into your workflow.

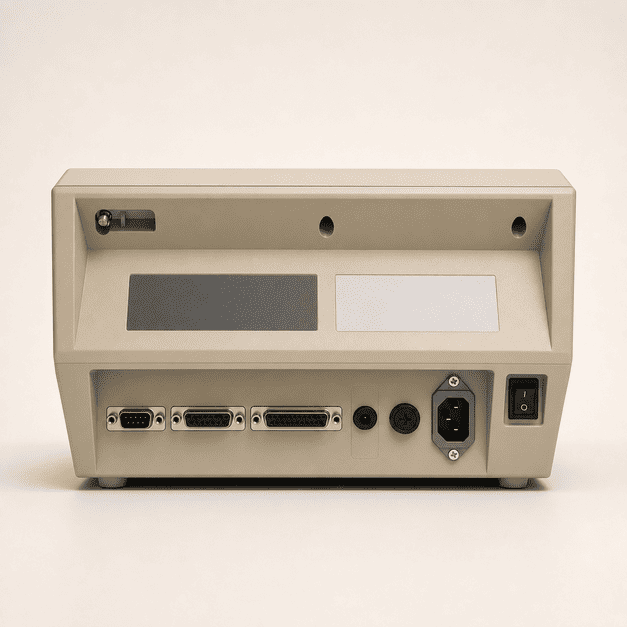

Connections for your workflow.
RS232; RS485; RF; 20 mA loop; Parallel printer. Confirm the required interface in your configuration.
Functions for daily operation.
Anti-cheating protection / Electronic seal / Automatic/Semi-automatic/Manual corner correction / Digital sensor address setting / Single sensor data viewing

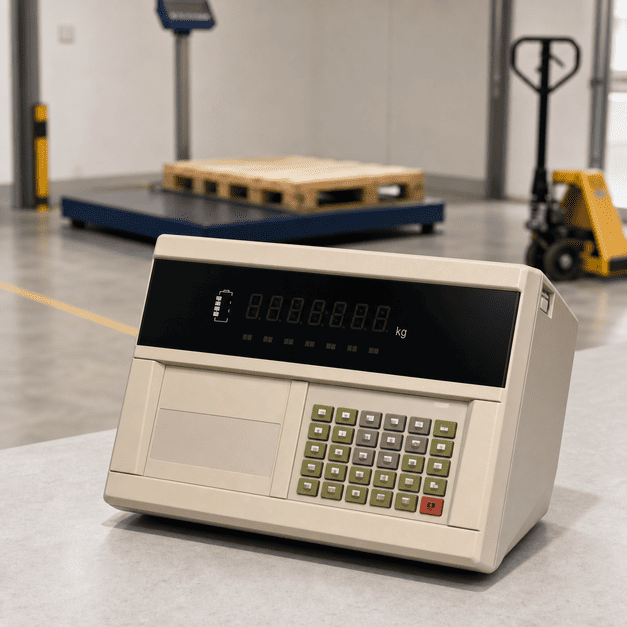

For your daily workflowTruck ScaleWeighbridge
Configure your equipment
Your process. Your interface.
Select your communication and application requirements. We can discuss the functions and configuration your system needs.
Final specifications, connections and configuration are confirmed together for your application.
Select your requirements above.
Add to My Inquiry HENER product catalogueExplore the complete product range · PDF| Model & display | |
|---|---|
| Model | DS8/DS8P |
| Brand | Yaohua |
| Display | LED numeric display with status indication |
| Housing | weighbridge housing, anti-cheating and electronic seal functions |
| Input & communication | |
| Signal input | RS485 digital sensor interface, 4-wire/6-wire compatible |
| Load cell support | 1 to 16 digital load cells |
| Excitation voltage | DC 10 V |
| Measurement rate | 10 measurements/s |
| Communication | RS232; RS485; RF; 20 mA loop; Parallel printer |
| Power & operation | |
| Power supply | AC 220 V |
| Battery | External DC 12 V / 7 Ah rechargeable battery |
| Printer / version | External printer support |
| Key functions | Anti-cheating protection / Electronic seal / Automatic/Semi-automatic/Manual corner correction / Digital sensor address setting / Single sensor data viewing |
| Optional expansion | Ethernet / 4-20 mA / Switch output / Modbus / Wireless remote display |
Confirm the exact model, capacity or variant before finalizing your system configuration.
