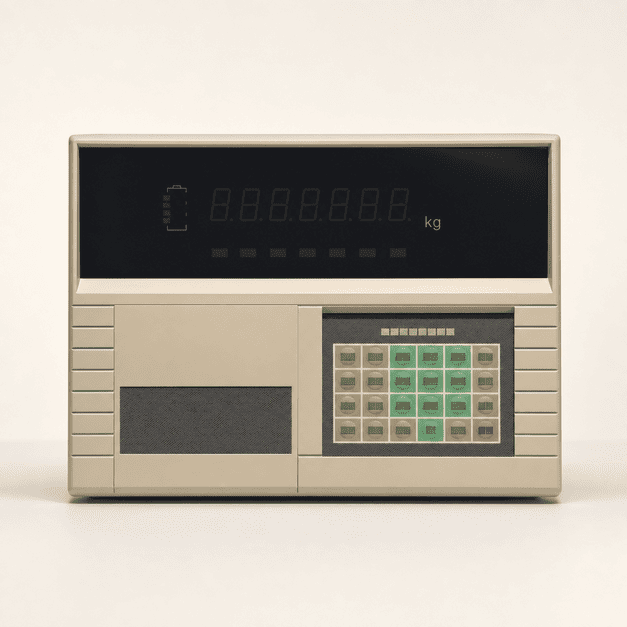

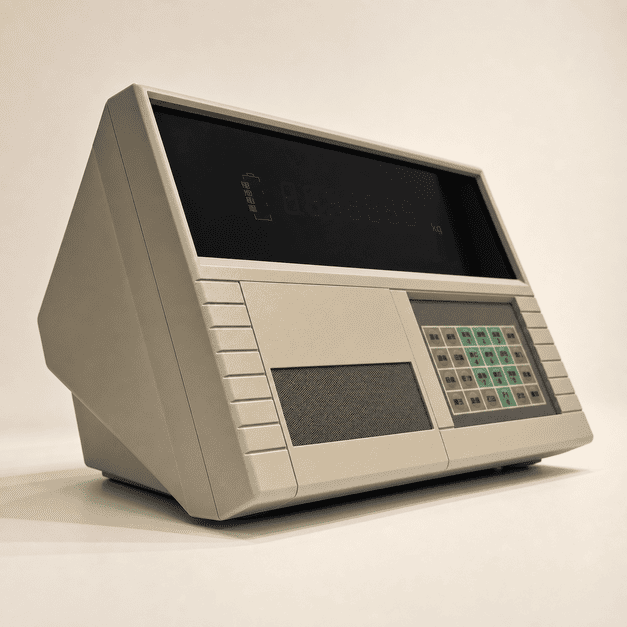

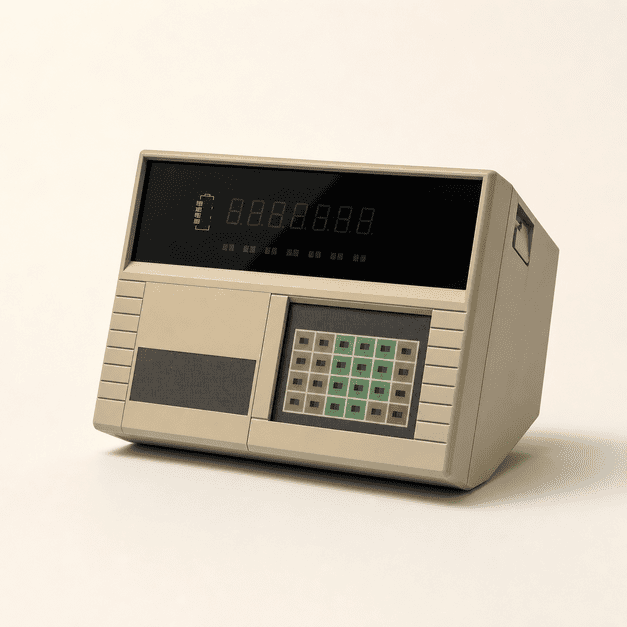

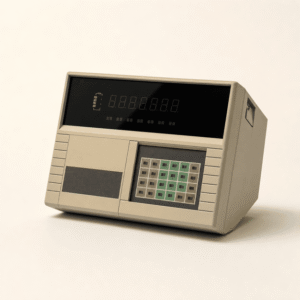

DS3 Digital Weighbridge Indicator
DS3 is a weighbridge indicator designed for Truck Scale, Weighbridge, Rail Scale. It delivers practical functions such as Automatic/manual corner correction; rail scale correction mode; digital sensor address setting, making daily weighing operation clearer and more efficient. It supports 1 to 16 digital load cells.
Display7-digit VFD display with 7 status indicators
AccuracyOIML Class III
CommunicationRS232; RS422; RS485; RF; 20 mA loop; Parallel printer
Load Cell Support1 to 16 digital load cells
Technical details
Indicator Specifications
Core configuration and electrical details for choosing the right indicator for your weighing system.
- Model
- DS3
- Product Type
- Weighbridge Indicator
- Accuracy Class
- OIML Class III

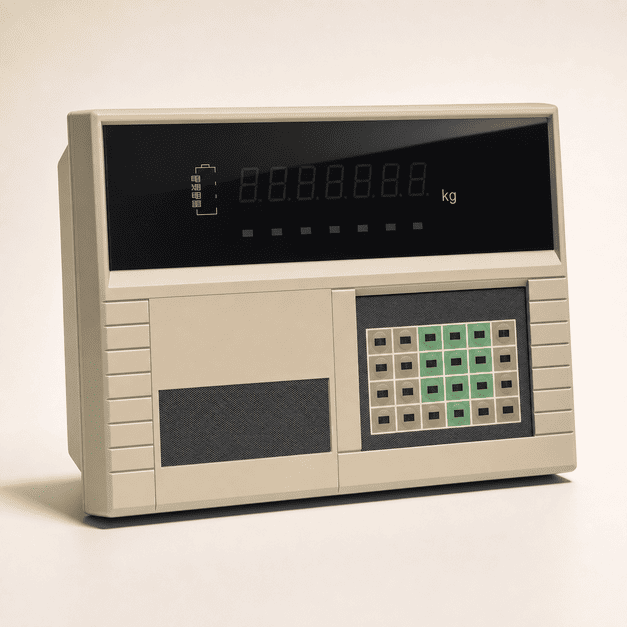

- Display
- 7-digit VFD display with 7 status indicators
- Signal Input
- RS485 digital sensor interface, compatible with 4-wire/6-wire connection
- Load Cell Support
- 1 to 16 digital load cells
- Excitation Voltage
- DC 10 V
- Measurement Rate
- 10 measurements/s

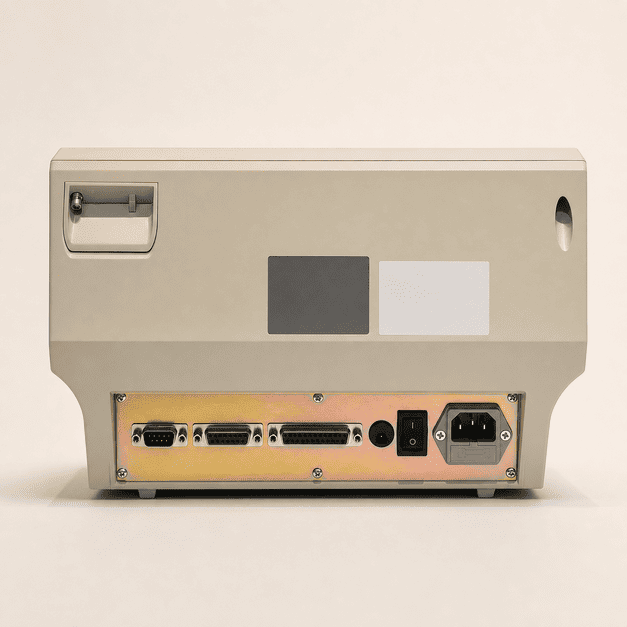

- Communication
- RS232; RS422; RS485; RF; 20 mA loop; Parallel printer
- Power Supply
- AC 220 V
- Battery
- Optional rechargeable battery
- Printer
- Built-in mini printer
- Housing / Protection
- weighbridge housing
- Operating Temperature
- -10 to +40 ℃
- Optional Expansion
- RS422 / RS485 / Panel mini printer / External printer / Remote display
Built for daily operation
Key Functions
- Automatic
- manual corner correction
- Rail scale correction mode
- Digital sensor address setting
- Single sensor data viewing
- Multi-level division
System matching

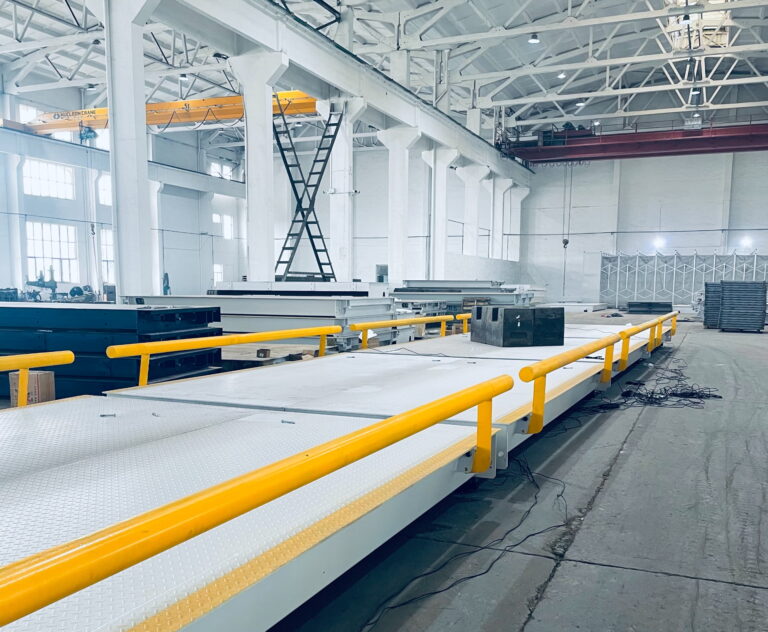

Compatible Scales
Pair this indicator with proven HENER weighing platforms for a complete industrial weighing solution.
Need a matched solution?
Tell us your scale type and working environment.
Our team can recommend a suitable indicator, load cell configuration, and communication setup for your weighing system.
