DS10/DS10P IoT Digital Weighbridge Indicator
DS10/DS10P is a weighbridge indicator designed for Truck Scale, Weighbridge, Unattended Weighing. It delivers practical functions such as IoT weighing management; Bluetooth setup; anti-cheating protection, making daily weighing operation clearer and more efficient. It supports 1 to 16 digital load cells.
DisplayDigital weighbridge display with status indication
AccuracyOIML Class III
CommunicationRS232; RS485; RF; 20 mA loop; GPRS; UART
Load Cell Support1 to 16 digital load cells
Technical details
Indicator Specifications
Core configuration and electrical details for choosing the right indicator for your weighing system.
- Model
- DS10/DS10P
- Product Type
- Weighbridge Indicator
- Accuracy Class
- OIML Class III
- Display
- Digital weighbridge display with status indication
- Signal Input
- RS485 digital sensor interface, 4-wire/6-wire compatible
- Load Cell Support
- 1 to 16 digital load cells
- Excitation Voltage
- DC 10 V
- Measurement Rate
- 10 measurements/s

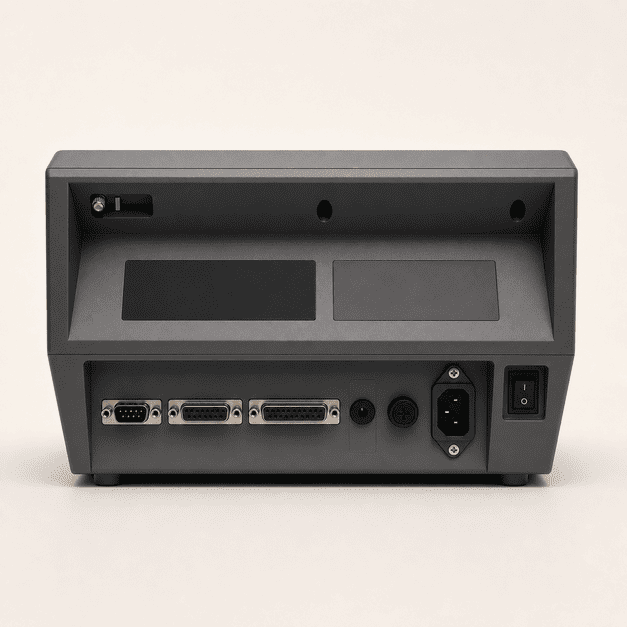

- Communication
- RS232; RS485; RF; 20 mA loop; GPRS; UART
- Power Supply
- AC 220 V
- Battery
- External DC 12 V / 7 Ah rechargeable battery
- Printer
- External printer support
- Housing / Protection
- weighbridge housing, electronic seal and anti-cheating functions
- Operating Temperature
- -10 to +40 ℃
- Optional Expansion
- Ethernet / 4-20 mA / Switch output / Modbus / Wireless Remote Display
Built for daily operation
Key Functions
- IoT weighing management
- Bluetooth setup
- Anti-cheating protection
- Health diagnostics
- Camera
- Barrier
- Card Reader Integration
System matching
Compatible Scales
Pair this indicator with proven HENER weighing platforms for a complete industrial weighing solution.
Need a matched solution?
Tell us your scale type and working environment.
Our team can recommend a suitable indicator, load cell configuration, and communication setup for your weighing system.
