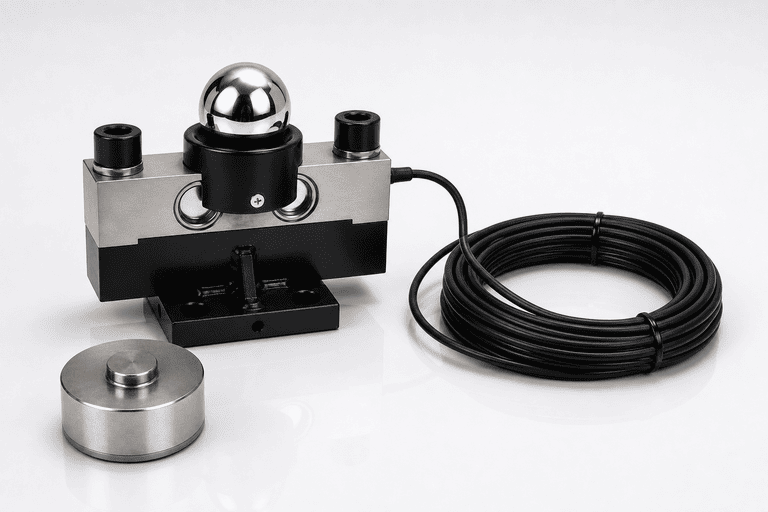

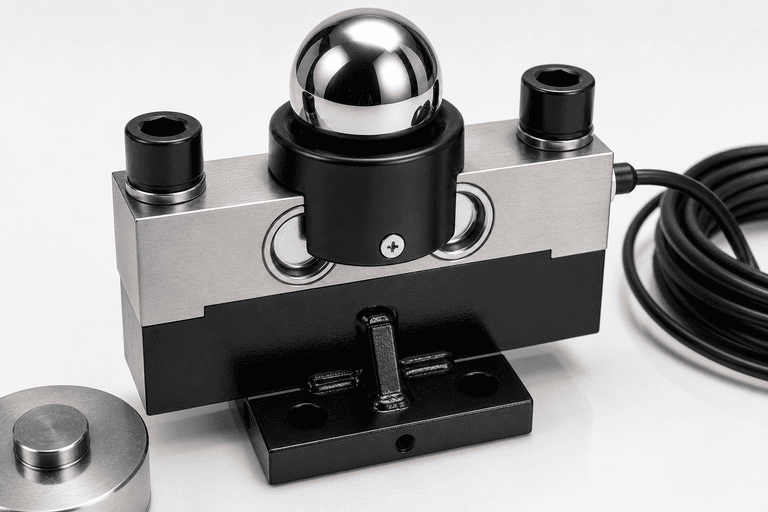

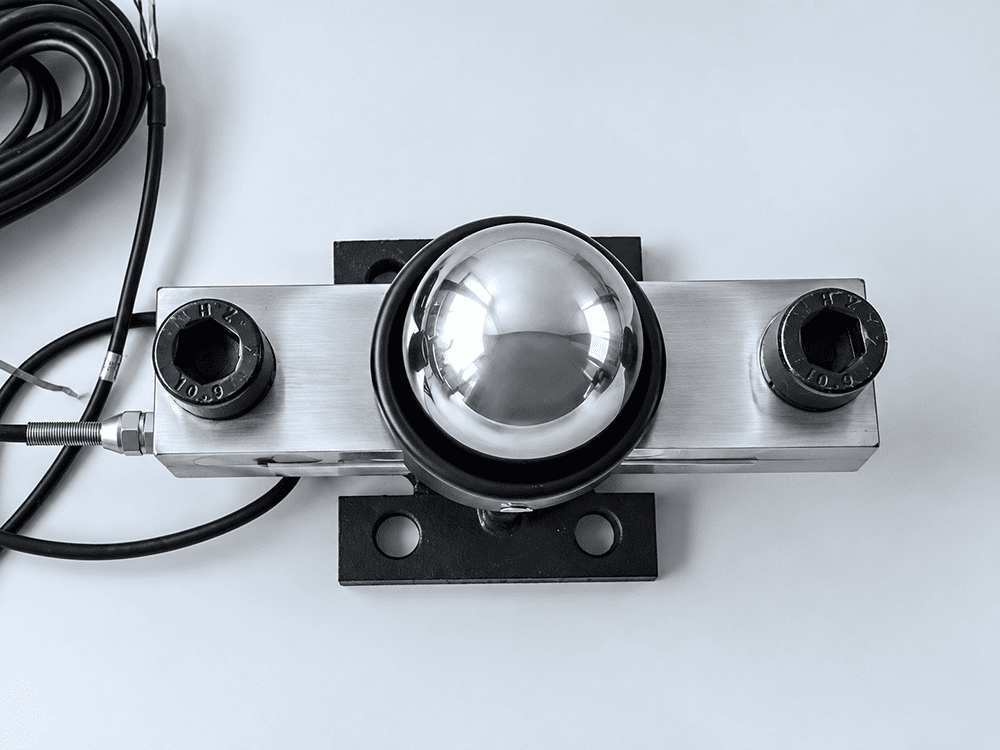

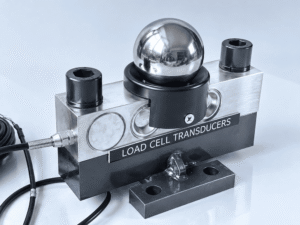

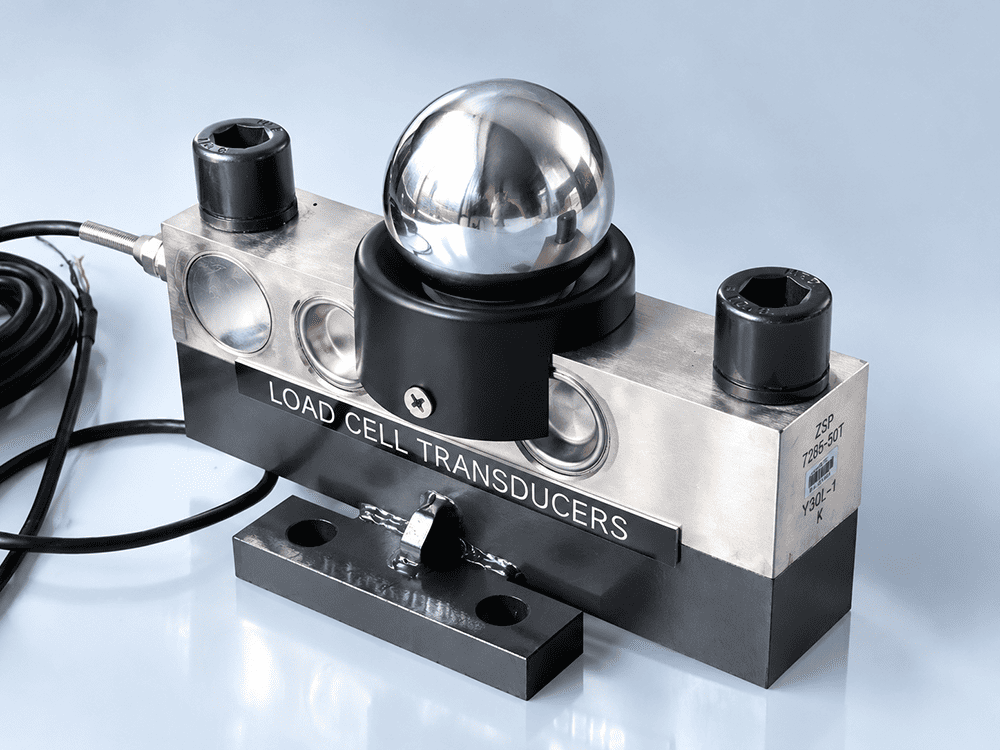

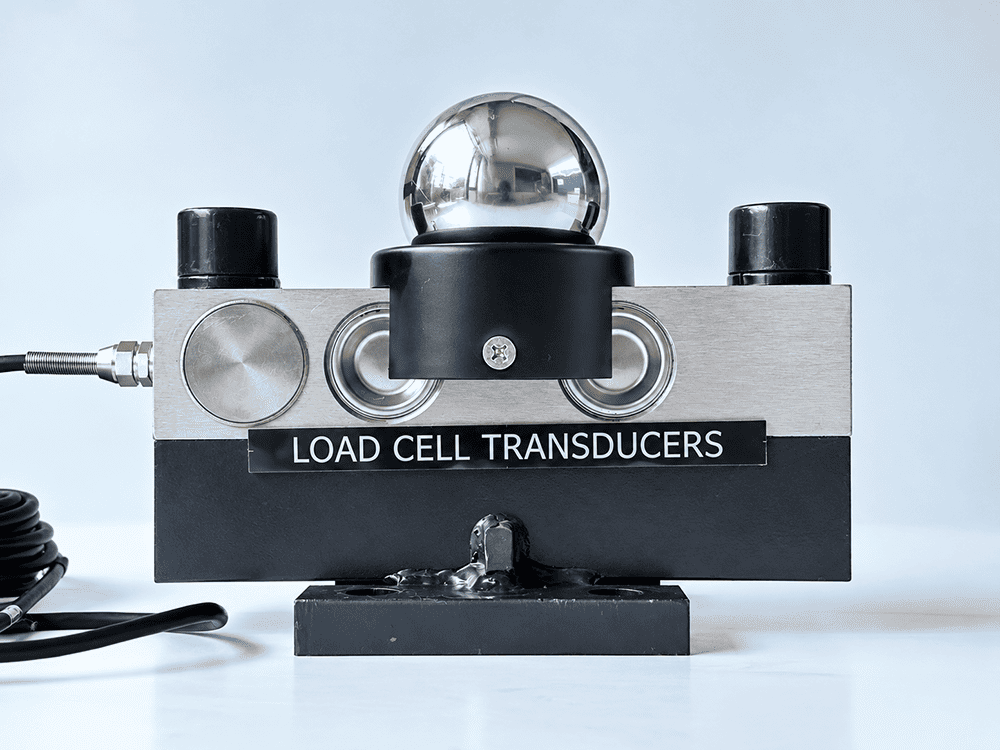

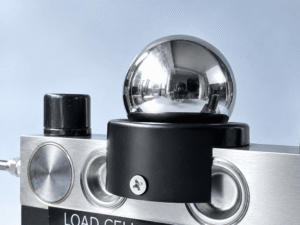

QS KELI Double-Ended Shear Beam Load Cell
Model: QS
Double-Ended Shear Beam Load Cell
5 / 10 / 15 / 20 / 25 / 30 / 40 / 50 t
Rated Capacity
C2 / C3
Accuracy Class
150% F.S
Safe Overload
QS is a KELI load cell series for truck scales, railway scales, blending scales, and special weighing systems. It provides C2-C3 accuracy, IP67 protection, and heavy-duty performance for large scale applications.
Key Features
- Heavy-duty truck scale load cell; C2-C3 accuracy; IP67 protection; alloy or stainless body; broad 5-50 t range.
Applications
Truck Scale
Technical Specifications
Rated Capacity
5 / 10 / 15 / 20 / 25 / 30 / 40 / 50 t
Accuracy Class
C2 / C3
Rated Output
2.0 +/-0.002 mV/V
Creep
+/-0.02% F.S / 30 min
Temperature Effect
Zero/span +/-0.02% F.S /10℃
Temperature Range
Compensated -10 to +40℃; operating -30 to +70℃
Safe Overload
150% F.S
Ultimate Overload
250% F.S
Excitation Voltage
10-12 VDC
Protection Class
IP67
Material
Alloy Steel / Stainless Steel
Cable
5.2 m to 21 m
Wiring / Interface
4-wire: Exc+ red, Exc- black, Sig+ green, Sig- white
Dimensions
224 mm * 135 mm * 168.8 mm<br /> 240 mm * 135 mm * 230.7 mm<br /> 340 mm * 160 mm * 281.2 mm
Compatible Scale Systems
This load cell is designed to integrate seamlessly with the following weighing systems.
