Construction for integration.
Alloy Steel / Stainless Steel. Match the mounting arrangement to your equipment.
YAOHUA · DHM14C

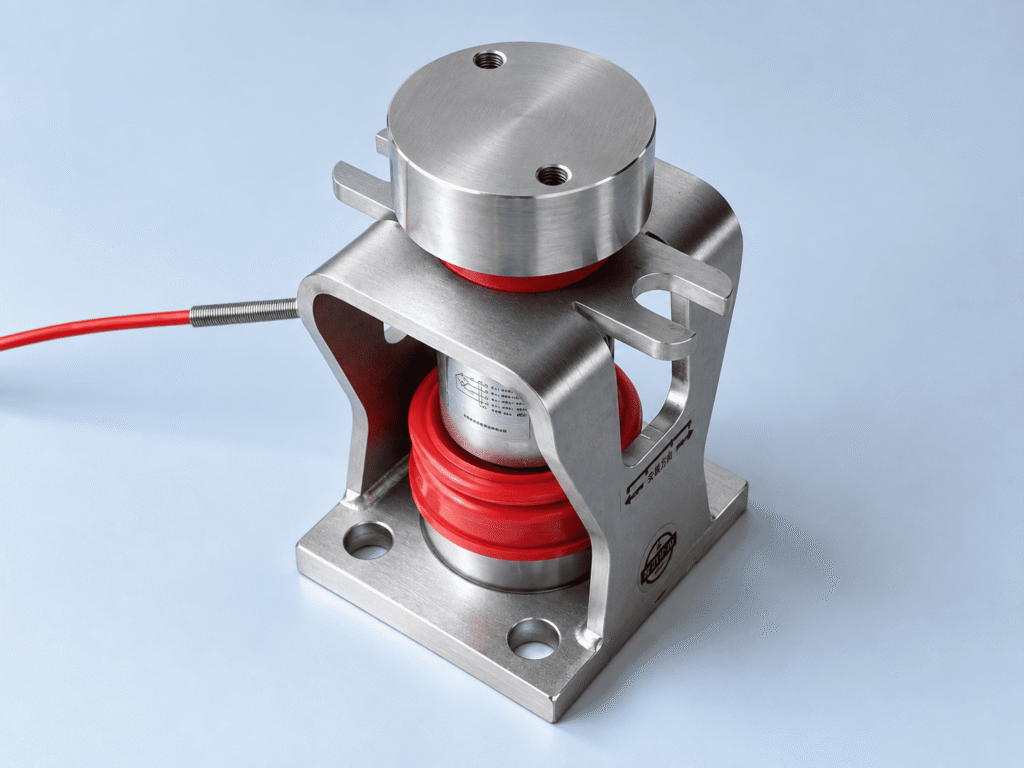

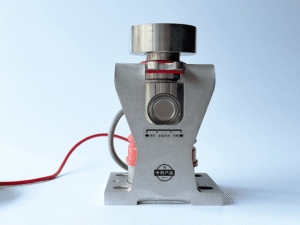

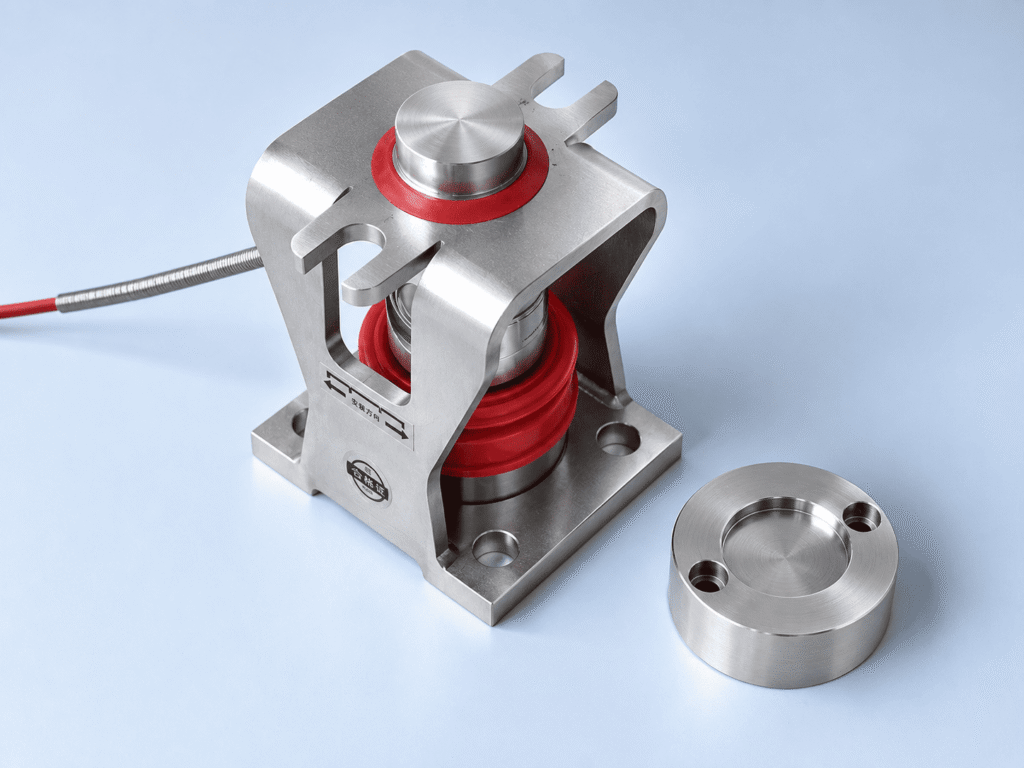

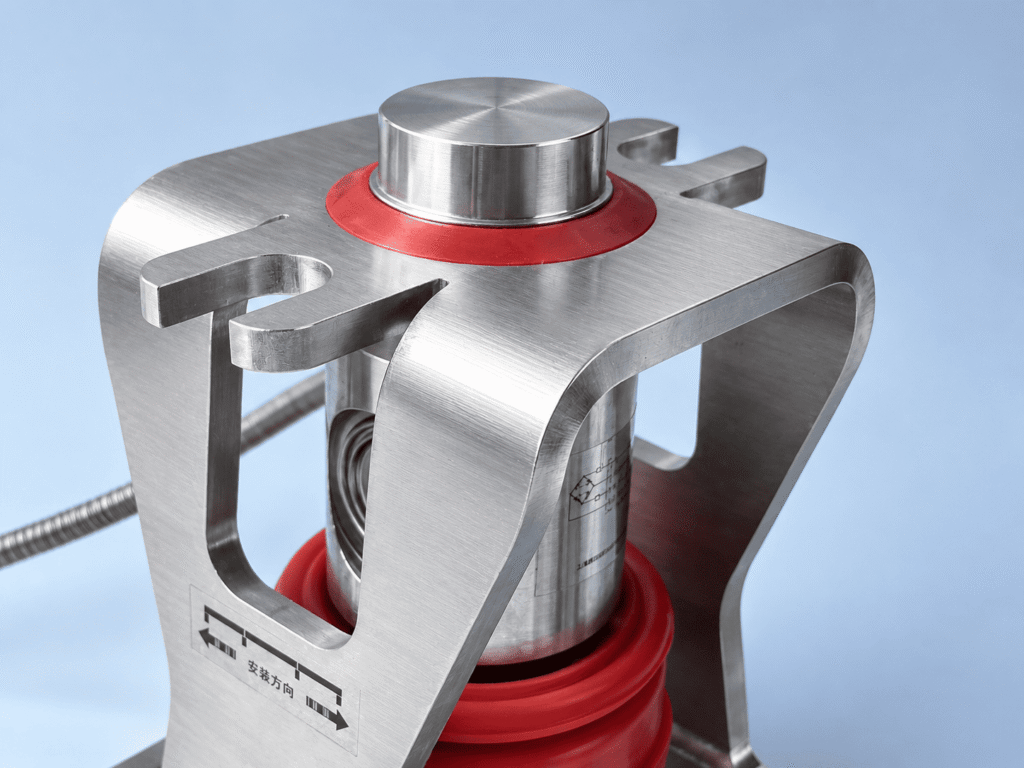

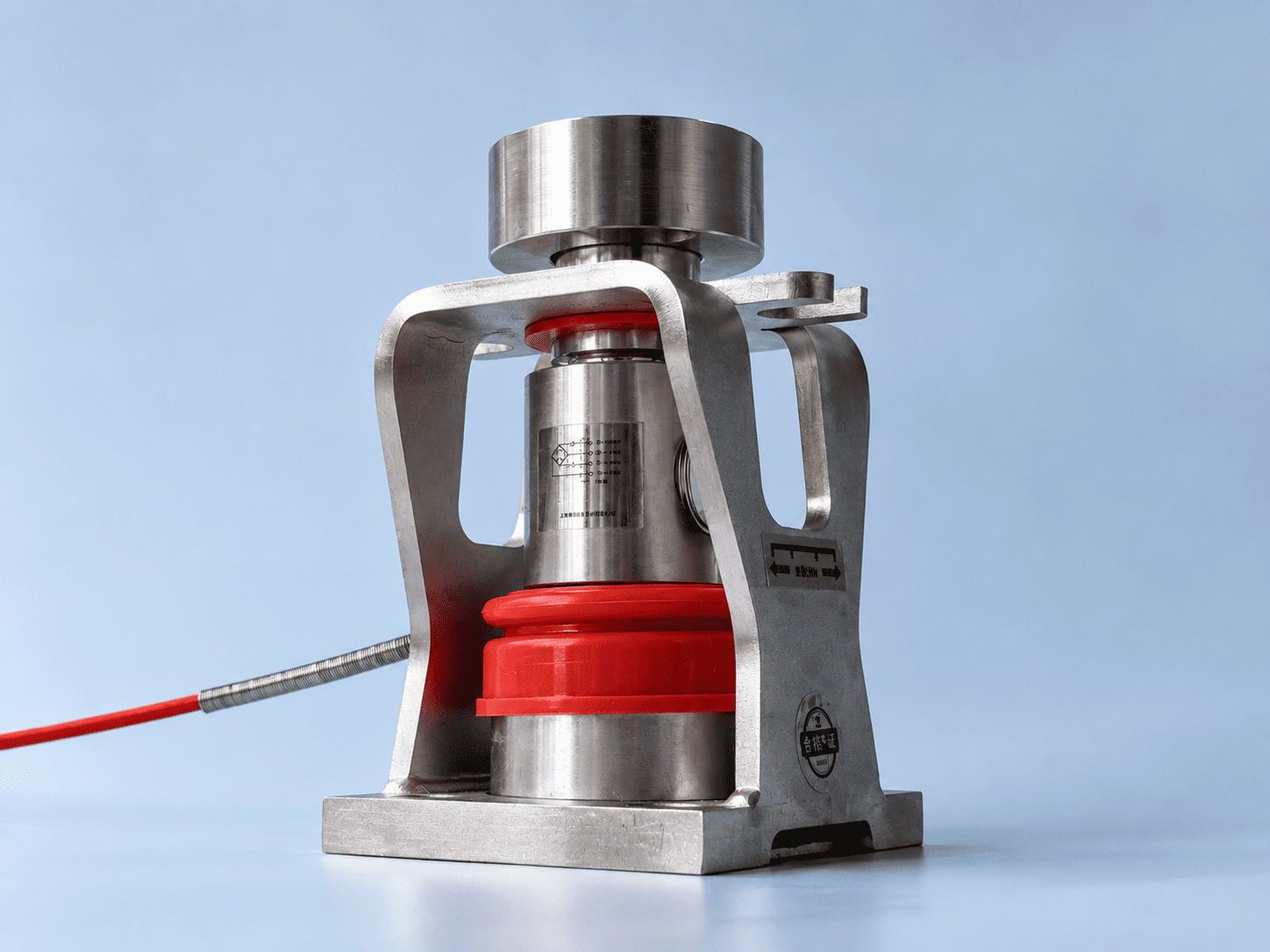

DHM14C Load Cell
A YAOHUA digital load cell for truck scales, with RS485 output for a digital weighing system.
- Popular capacity
- 30 t
- Brand
- YAOHUA
Select a view. Click the main image to enlarge.
Built into your weighing system.
Look closer at the sensing component, its connection and the details needed for equipment integration.
Know the signal.
Digital RS485 output. Confirm the indicator input and excitation together.
Plan the connection.
12 m / 16 m
For your daily workflowTruck Scale
Configure your equipment
Your load. Your connection.
Select the required capacity and application. Include mounting details and connection requirements in your inquiry.
Final specifications, connections and configuration are confirmed together for your application.
Select your requirements above.
Add to My Inquiry HENER product catalogueExplore the complete product range · PDF| Model & capacity | |
|---|---|
| Model | DHM14C |
| Brand | YAOHUA |
| Rated capacity | 10 / 20 / 30 / 40 t |
| Material | Alloy Steel / Stainless Steel |
| Signal & connection | |
| Rated output | Digital RS485 output |
| Excitation voltage | 6-15 VDC |
| Cable | 12 m / 16 m |
| Wiring / interface | RS485, 4-wire |
| Installation | |
| Temperature range | Compensated -10 to +40℃; operating -35 to +70℃ |
| Dimensions | 110 mm * 100 mm * 236 mm |
Confirm the exact model, capacity or variant before finalizing your system configuration.
