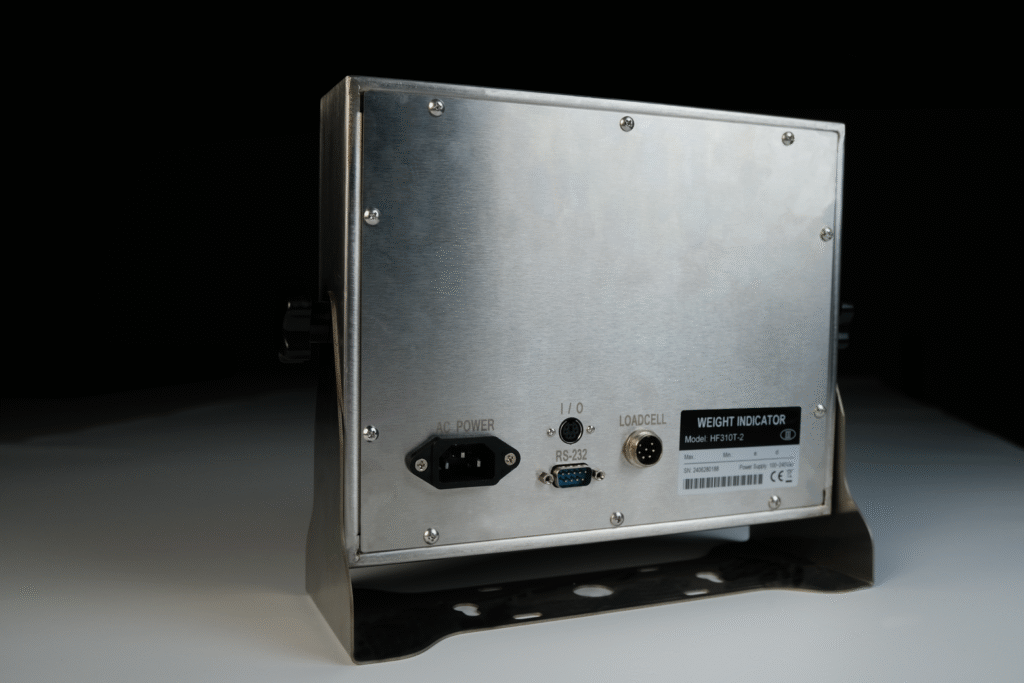

HF310 Weighing Indicator

Explore HEAVYE Indicator specifications and connection requirements for your weighing application.

HF310 · View 1

01 / 05

Select a view. Click the main image to enlarge.

From weight to useful information.

Review the display, operating functions and connections that bring weighing data into your workflow.

0.8 inch/20.32 mm FSTN LCD with white LED backlight; dual 15-segment display

RS232. Confirm the required interface in your configuration.

Portable axle weighing / Multi-channel weighing / Axle-Sum weighing / Editable printing / Barcode/QR/bitmap printing

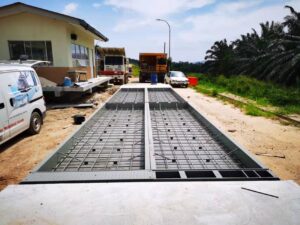

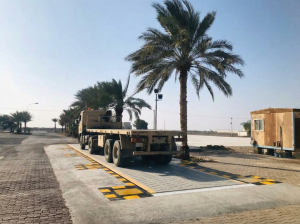

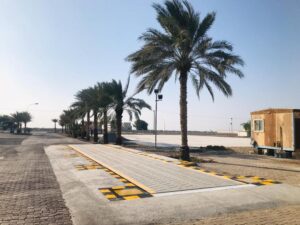

For your daily workflowTruck ScaleWeighbridgeAxle Weighing

Configure your equipment

Select your communication and application requirements. We can discuss the functions and configuration your system needs.

Required communication

Application

Final specifications, connections and configuration are confirmed together for your application.

Select your requirements above.

Technical specifications
Model & display
Model	HF310
Brand	HEAVYE
Display	0.8 inch/20.32 mm FSTN LCD with white LED backlight; dual 15-segment display
Input & communication
Signal input	Analog load cell or multi-scale cable/wireless input
Load cell support	Up to 8 x 350 ohm load cells per load; up to 8 scale inputs by cable or wireless
Excitation voltage	DC 5 V
Measurement rate	10 measurements/s
Communication	RS232
Power & operation
Power supply	Universal 100-240 Vac
Battery	Built-in 3.7 V / 4 Ah rechargeable lithium battery
Printer / version	Built-in 58 mm thermal
Key functions	Portable axle weighing / Multi-channel weighing / Axle-Sum weighing / Editable printing / Barcode/QR/bitmap printing
Optional expansion	Cable or wireless scale input / Configurable units / Percentage and user-defined units
Dimensions	335 x 236 x 126 mm
