- Ultra-Low Deck Height: Sitting just inches off the ground (often between 1.5″ to 2″), this design drastically shortens the required ramp length, saving valuable floor space and reducing the physical effort needed to push loads onto the platform.
- Pit-Free Installation: This scale provides the accessibility of a pit-mounted scale without the expensive construction costs, drainage issues, or permanency associated with digging a pit in your facility floor.
- Live Side Rails: Many low-profile models feature “live” side rails, meaning the entire structure (including the raised edges) is part of the weighing mechanism; this allows oversized pallets to extend over the side without compromising the accuracy of the weight reading.
HR-LP Floor Scale
Model Number
HR-LP
Capacity
500KG ~ 3T
Application Scenarios
Traffic Logistics, Food Processing, Warehouse Weighing, Check Weighing, Parts Counting, Pallet Weighing, Hygienic Washdown, Mining & Aggregates, Waste & Recycling
OEM/ODM Support
OEM/ODM Supported
Need Customization?
We offer full OEM/ODM services with 22 years of manufacturing expertise. Contact us to discuss your specific requirements.
Product Details

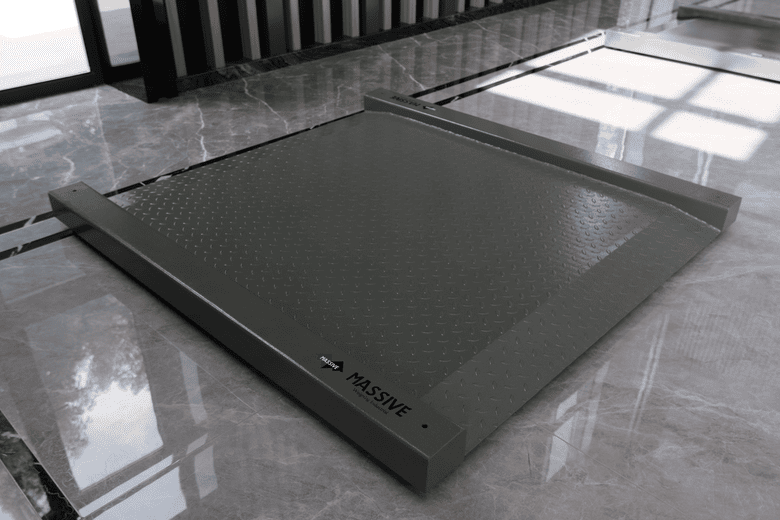

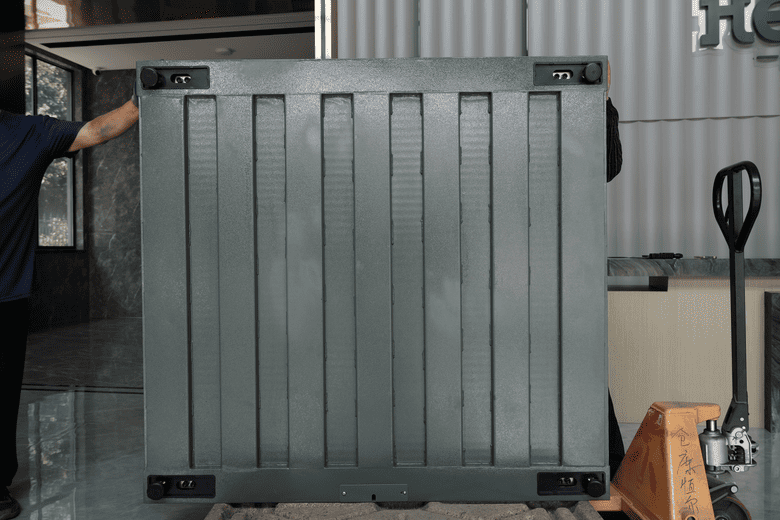

Maximize operational efficiency and minimize floor space requirements with the Low Profile Floor Scale. Engineered with an ultra-low deck height, this scale is designed to integrate seamlessly into busy warehouse and production environments where pit installation is not feasible. Its compact vertical footprint creates a significantly shorter approach angle, making it exceptionally easy to load via ramps using manual push-carts, dollies, and pallet jacks. Despite its slim stature, the scale sacrifices nothing in durability, featuring a robust steel channel frame and a diamond-plate surface that provides safe traction and stable, accurate weighing for heavy industrial loads.
Technical Specifications
| Parameter | Value |
|---|---|
| Platform Size | 1000 × 1000 mm / 1200 × 1200 mm / 1500 × 1500 mm / Customized |
| Capacity | 500KG / 1T / 2T / 3T |
| Accuracy Class | OIML III |
| Platform Material | Carbon Steel (4mm thickness) |
| Surface Finish | Painted |
| Structure | Indicator & Scale Platform Separated |
| Display | LED, LCD |
| Power Supply | AC Power (110-220V), Built-in Rechargeable Battery |
| Operating Temperature | -10°C ~ +40°C |
| Basic Functions | Tare, Zero, Accumulate, Unit Conversion, Counting |
| Optional Features | Printer, RS232/RS485 Interface, Bluetooth/Wi-Fi, Barcode Scanner, Remote Display |
| Calibration | Factory Calibrated |
