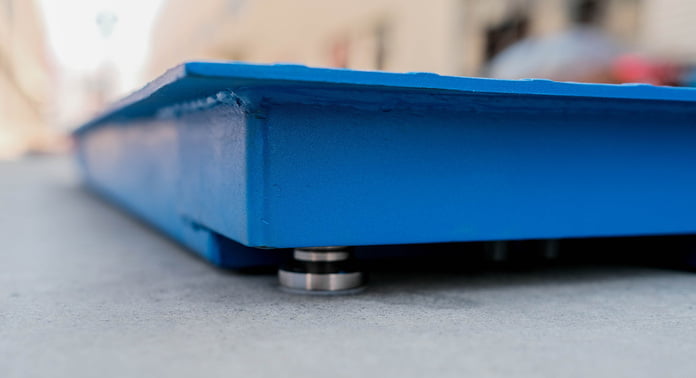

- Shock-Absorbing Floating Deck: The top platform “floats” over the sub-frame using a ball-and-cup or rocker pin suspension system, which absorbs the impact of heavy loads being dropped and redirects side forces away from the load cells.

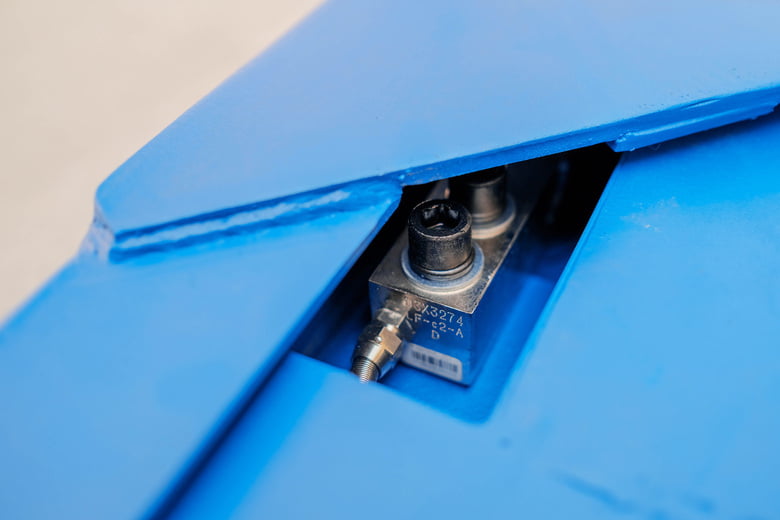

- Superior Load Cell Protection: By isolating the sensors from the initial shock of loading, this design prevents the most common cause of scale failure—sheared or bent load cells—drastically reducing maintenance costs and calibration drift.

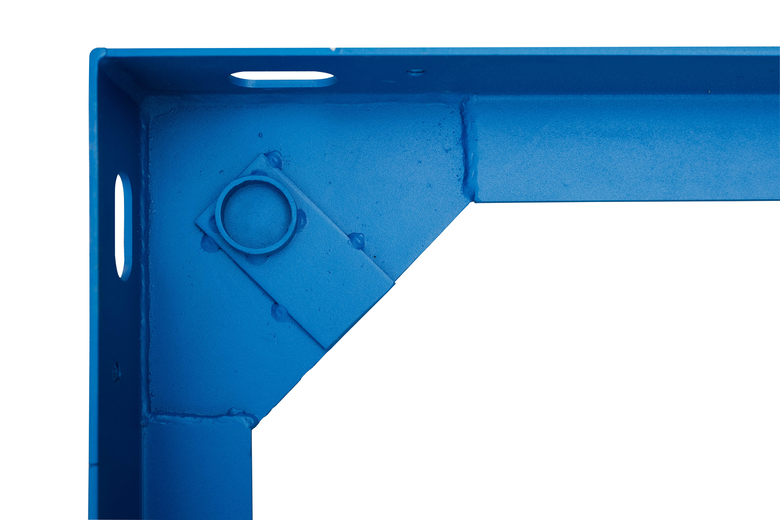

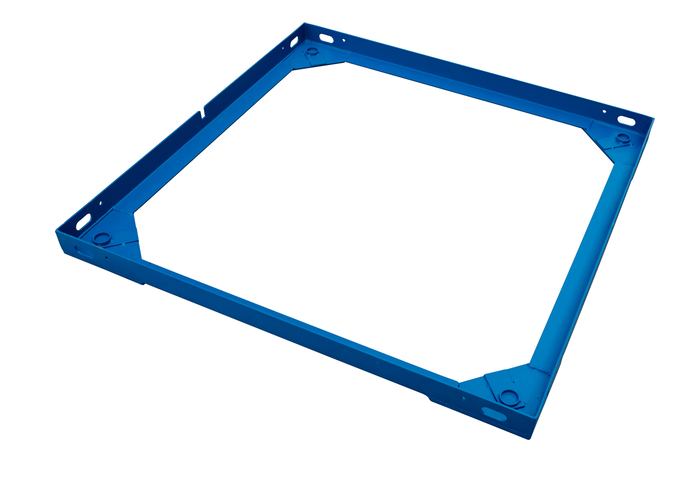

- Heavy-Duty Dual Frame Construction: Built with two distinct structural frames made of thick channel steel, this scale offers double the structural integrity of a standard scale, making it ideal for high-traffic weighing of steel coils, castings, and heavy machinery.
HR-DD Floor Scale
Model Number
HR-DD
Capacity
500KG ~ 5T
Application Scenarios
Traffic Logistics, Food Processing, Warehouse Weighing, Check Weighing, Parts Counting, Pallet Weighing, Hygienic Washdown, Mining & Aggregates, Waste & Recycling
OEM/ODM Support
OEM/ODM Supported
Need Customization?
We offer full OEM/ODM services with 22 years of manufacturing expertise. Contact us to discuss your specific requirements.
Product Details

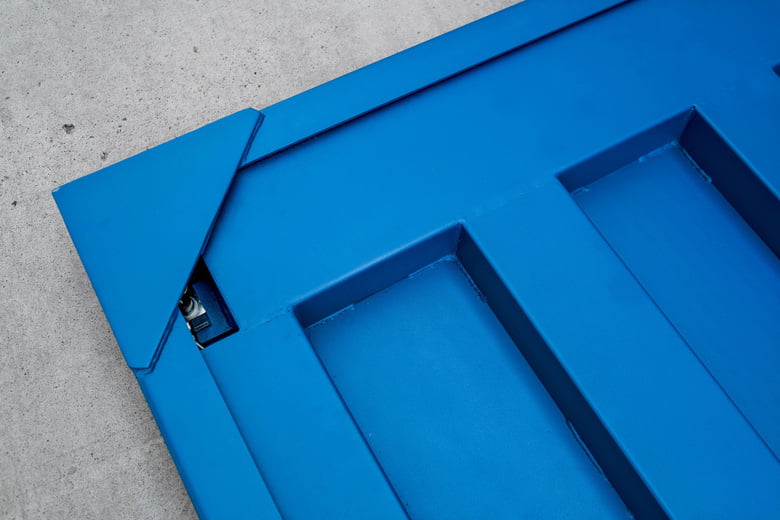

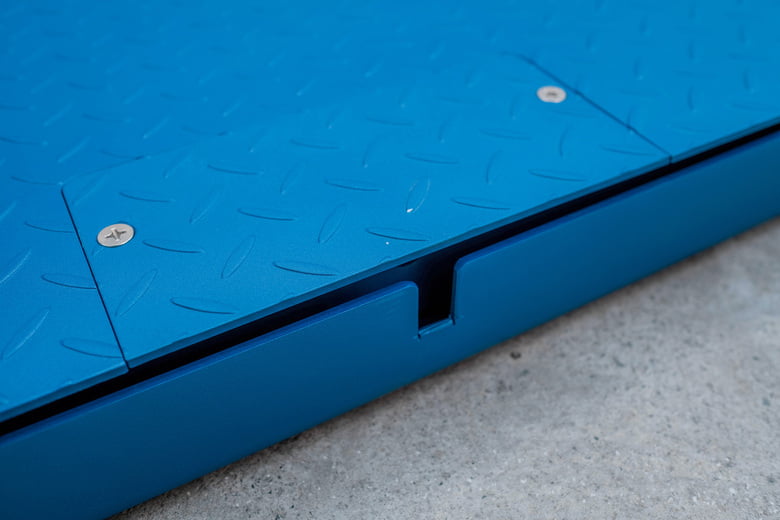

The Double Deck Floor Scale is a heavy-duty weighing solution engineered specifically for high-impact industrial environments where durability and load stability are paramount. Unlike standard floor scales, this unit features a unique “floating” top deck separated from a rigid bottom sub-frame. This dual-frame construction acts as a shock absorber, isolating the load cells from lateral forces, side impacts, and sudden drops common in forklift loading. By decoupling the weighing surface from the base, the Double Deck Scale significantly extends the life of sensitive electronic components and ensures weighing accuracy even under rigorous, non-ideal loading conditions found in scrap yards, steel warehouses, and freight hubs.
Technical Specifications
| Parameter | Value |
|---|---|
| Platform Size | 1000 × 1000 mm / 1200 × 1200 mm / 1500 × 1500 mm / Customized |
| Capacity | 500KG / 1T / 2T / 3T |
| Accuracy Class | OIML III |
| Platform Material | Carbon Steel (4mm thickness) |
| Surface Finish | Painted |
| Structure | Indicator & Scale Platform Separated |
| Display | LED, LCD |
| Power Supply | AC Power (110-220V), Built-in Rechargeable Battery |
| Operating Temperature | -10°C ~ +40°C |
| Basic Functions | Tare, Zero, Accumulate, Unit Conversion, Counting |
| Optional Features | Printer, RS232/RS485 Interface, Bluetooth/Wi-Fi, Barcode Scanner, Remote Display |
| Calibration | Factory Calibrated |
