- Complete Washdown Capability: Constructed with IP67 or IP69K rated stainless steel load cells and a hermetically sealed junction box, this scale allows for thorough cleaning and sanitation without risking water damage to sensitive electronics.
- Corrosion-Resistant Construction: The entire structure—from the deck plate to the sub-frame—is fabricated from bead-blasted 304 stainless steel, offering exceptional resistance to rust, oxidation, and chemical corrosion in harsh industrial environments.
- Easy-Load Low Profile Design: With a deck height as low as 1.5 inches, this scale facilitates smooth, low-effort loading for sanitary carts and production bins via short ramps, reducing operator strain and maximizing floor space efficiency.

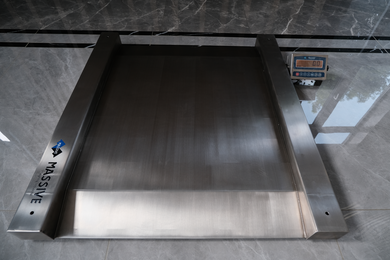

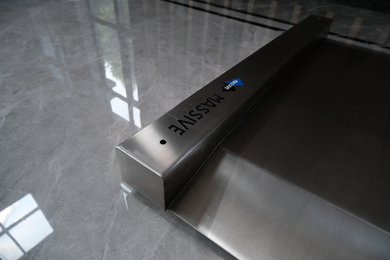

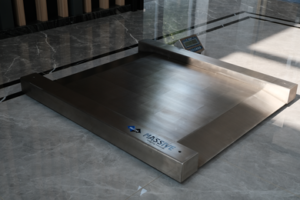

SS-LP Floor Scale
Model Number
SS-LP
Capacity
500KG ~ 3T
Application Scenarios
Traffic Logistics, Food Processing, Chemical Explosion Proof, Warehouse Weighing, Check Weighing, Parts Counting, Hygienic Washdown, Mining & Aggregates, Waste & Recycling
OEM/ODM Support
OEM/ODM Supported
Need Customization?
We offer full OEM/ODM services with 22 years of manufacturing expertise. Contact us to discuss your specific requirements.
Product Details
The Stainless Steel Low Profile Floor Scale combines superior hygienic design with accessible, space-saving engineering. Built entirely from high-grade 304 stainless steel, this scale is specifically designed for rigorous washdown environments found in food processing, pharmaceuticals, and chemical manufacturing. Its ultra-low profile deck eliminates the need for expensive pit construction while ensuring easy access for hand trucks and pallet jacks. Engineered to withstand frequent sanitation procedures using caustic cleaners and high-pressure water, this scale provides a reliable, accurate weighing solution that meets strict sanitary regulations without interrupting your workflow.
Technical Specifications
| Parameter | Value |
|---|---|
| Platform Size | 1000 × 1000 mm / 1200 × 1200 mm / 1500 × 1500 mm / Customized |
| Capacity | 500KG / 1T / 2T / 3T |
| Accuracy Class | OIML III |
| Platform Material | Stainless Steel (4mm thickness) |
| Surface Finish | Polished |
| Structure | Indicator & Scale Platform Separated |

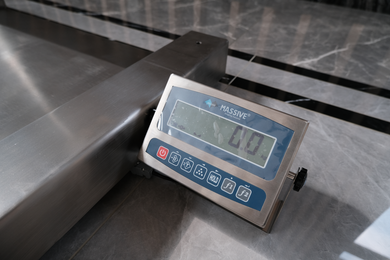

| Display | LED |
| Power Supply | AC Power (110-220V), Built-in Rechargeable Battery |
| Operating Temperature | -10°C ~ +40°C |
| Basic Functions | Tare, Zero, Accumulate, Unit Conversion, Counting |
| Optional Features | Printer, RS232/RS485 Interface, Bluetooth/Wi-Fi, Barcode Scanner, Remote Display |
| Calibration | Factory Calibrated |
