- Pallet Jack Accessibility: The included heavy-duty drive-on ramp features a gentle incline, allowing operators to easily push loaded manual or electric pallet jacks directly onto the scale deck without bottoming out.
- Low-Profile Design: Engineered with a minimal deck height, this scale reduces the steepness of the approach, making loading heavy loads safer and requiring less physical exertion from your staff.

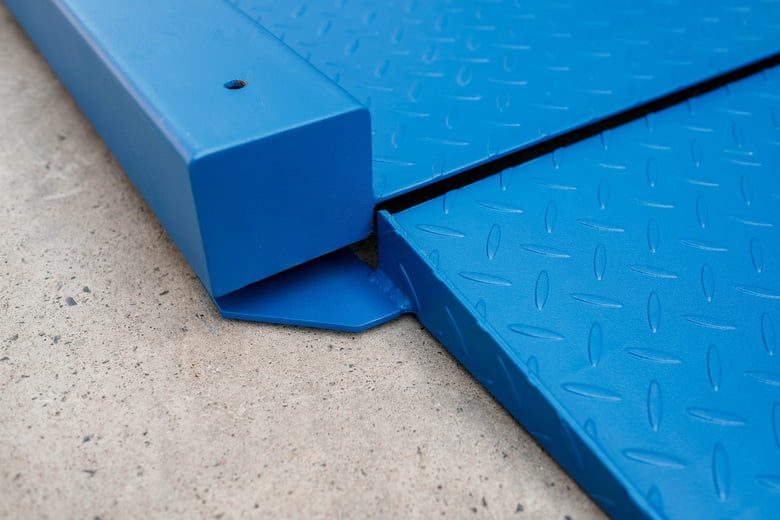

- Secure Ramp Attachment: The ramp locks securely to the scale frame using integrated mounting lugs or bolts, ensuring it stays firmly in place during loading and prevents dangerous gaps or slippage.
HR-LR Floor Scale
Model Number
HR-LR
Capacity
500KG ~ 3T
Application Scenarios
Traffic Logistics, Warehouse Weighing, Check Weighing, Parts Counting, Pallet Weighing, Mining & Aggregates, Waste & Recycling
OEM/ODM Support
OEM/ODM Supported
Need Customization?
We offer full OEM/ODM services with 22 years of manufacturing expertise. Contact us to discuss your specific requirements.
Product Details

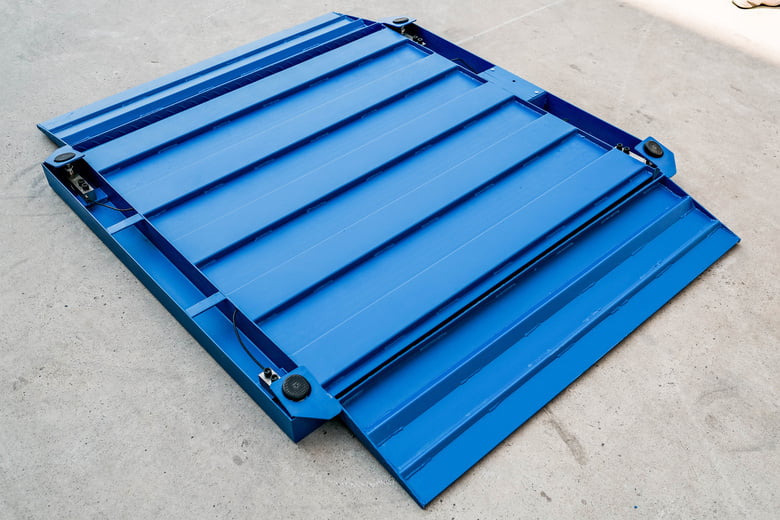

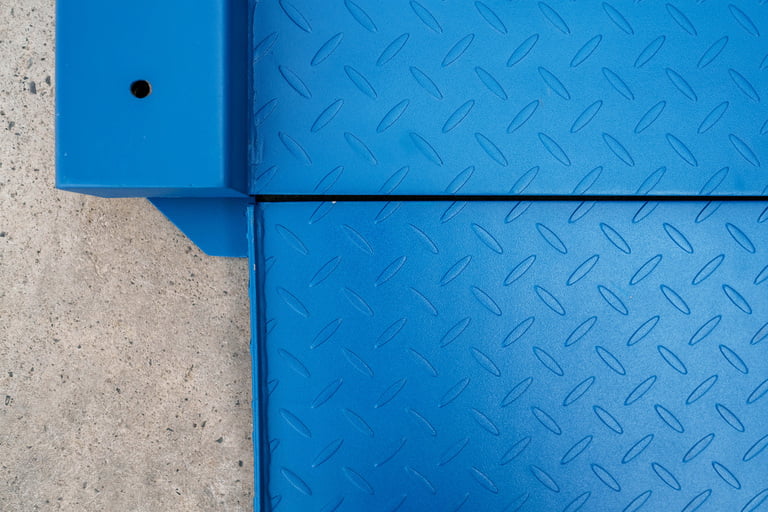

Streamline your shipping and receiving operations with the Floor Scale with Ramp, a comprehensive weighing system designed for effortless pallet jack accessibility. This low-profile industrial scale eliminates the need for forklift loading by including a heavy-duty steel ramp, allowing operators to roll pallet jacks, dollies, and carts directly onto the weighing platform. Built with a rugged, diamond-tread deck for superior traction, this system improves workflow efficiency and safety by reducing manual lifting and equipment maneuvering. Whether you are weighing outgoing freight or incoming raw materials, this ramp-equipped scale offers the seamless transition and stability required for high-volume logistics.
Technical Specifications
| Parameter | Value |
|---|---|
| Platform Size | 1000 × 1000 mm / 1200 × 1200 mm / 1500 × 1500 mm / Customized |
| Capacity | 500KG / 1T / 2T / 3T |
| Accuracy Class | OIML III |
| Platform Material | Carbon Steel (4mm thickness) |
| Surface Finish | Painted |
| Structure | Indicator & Scale Platform Separated |
| Display | LED, LCD |
| Power Supply | AC Power (110-220V), Built-in Rechargeable Battery |
| Operating Temperature | -10°C ~ +40°C |
| Basic Functions | Tare, Zero, Accumulate, Unit Conversion, Counting |
| Optional Features | Ramp, Printer, RS232/RS485 Interface, Bluetooth/Wi-Fi, Barcode Scanner, Remote Display |
| Calibration | Factory Calibrated |
