GUANGCE

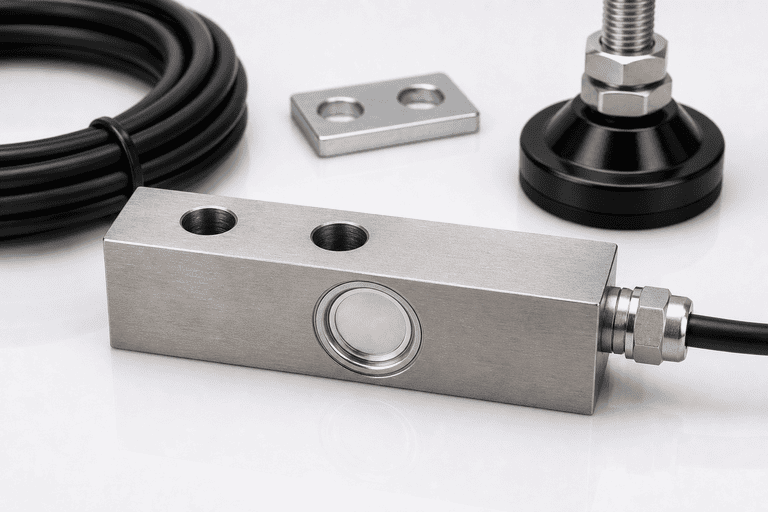

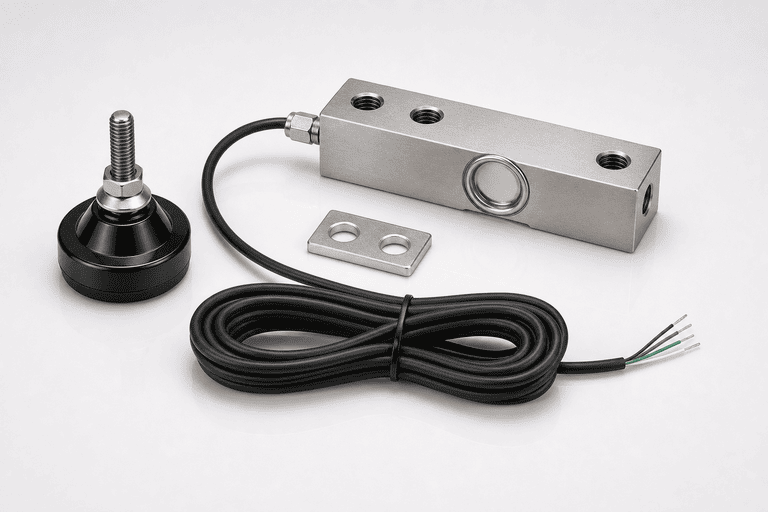

YZC-320C GUANGCE Load Cell
Model: YZC-320C
Beam Load Cell
50 / 100 / 200 / 250 / 500 / 1000 / 2000 / 3000 kg
Rated Capacity
C3
Accuracy Class
150% F.S
Safe Overload
YZC-320C is a floor scale load cell for platform weighing and pallet truck scale applications. It has a compact beam structure, C3 accuracy, and a kg-range capacity selection for light to medium industrial use.
Key Features
- Compact floor-scale beam design; C3 accuracy; kg-range capacity options; clear wiring definition; suitable for pallet truck scales.
Applications
Floor ScalePallet Truck Scale
Technical Specifications
Rated Capacity
50 / 100 / 200 / 250 / 500 / 1000 / 2000 / 3000 kg
Accuracy Class
C3
Rated Output
2.0 +/-0.004 mV/V
Combined Error
+/-0.02% R.O
Creep
0.02% R.O / 30 min
Temperature Effect
Sensitivity 0.0016% R.O/℃; zero 0.002% R.O/℃
Temperature Range
Compensated -10 to +40℃; operating -35 to +80℃
Safe Overload
150% F.S
Ultimate Overload
200% F.S
Excitation Voltage
5-12 VDC
Material
Alloy Steel / Stainless Steel
Cable
5.7 mm dia. x 2 m
Wiring / Interface
Input+ red, Input- black, Output+ green, Output- white
Dimensions
130 mm * 31.8 mm * 31.8 mm
Compatible Scale Systems
This load cell is designed to integrate seamlessly with the following weighing systems.
