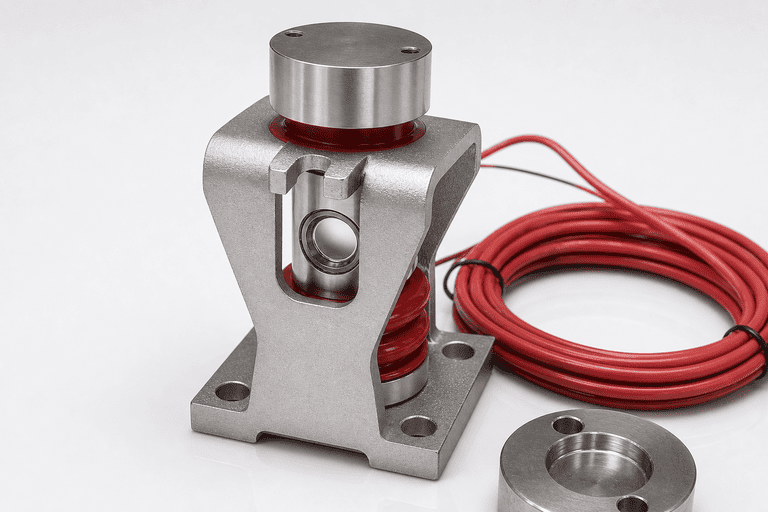

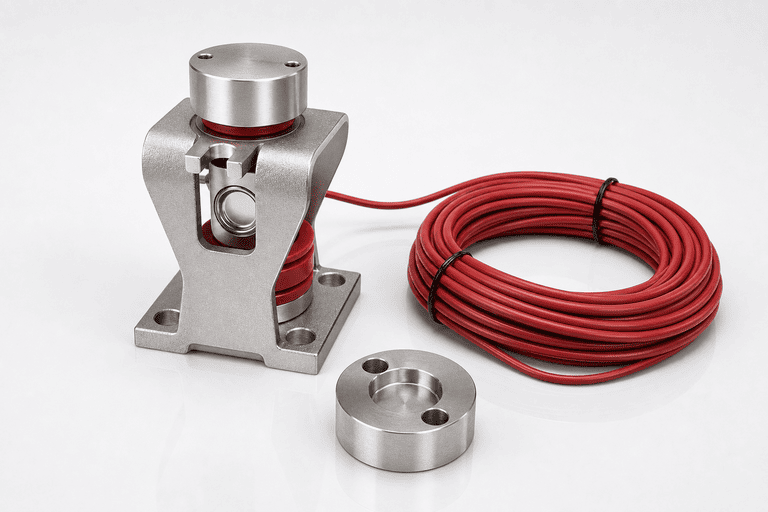

HM14C YAOHUA Digital Column Load Cell
Model: HM14C
Digital Load Cell
10 / 20 / 30 / 40 t
Rated Capacity
C3
Accuracy Class
120% F.S
Safe Overload
HM14C is a YAOHUA digital column load cell for truck scales and other electronic weighing equipment. It features anti-tipping structure, RS485 communication, and C3 accuracy for bridge-type scale systems.
Key Features
- Digital column structure; anti-tipping and anti-rotation design; RS485 communication; C3 accuracy; stainless steel option.
Applications
Truck Scale
Technical Specifications
Rated Capacity
10 / 20 / 30 / 40 t
Accuracy Class
C3
Rated Output
Digital RS485 output
Combined Error
<= +/-0.02% F.S
Temperature Effect
Output <= +/-0.011% F.S /10℃; zero <= +/-0.02% F.S /10℃
Temperature Range
Compensated -10 to +40℃; operating -35 to +70℃
Safe Overload
120% F.S
Ultimate Overload
150% F.S
Excitation Voltage
6-15 VDC
Material
Alloy Steel / Stainless Steel
Cable
12 m / 16 m
Wiring / Interface
RS485, 4-wire
Dimensions
110 mm * 100 mm * 236 mm
