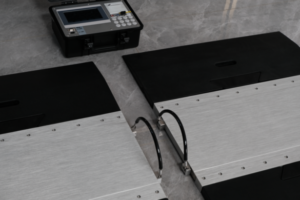

High-Accuracy Load Cells: Equipped with premium sensors to ensure precise weight readings for individual axles and total vehicle weight, even on uneven surfaces.
Portable Axle Scales · PAW-A

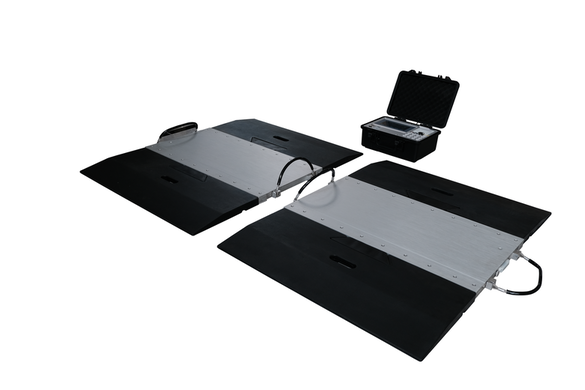

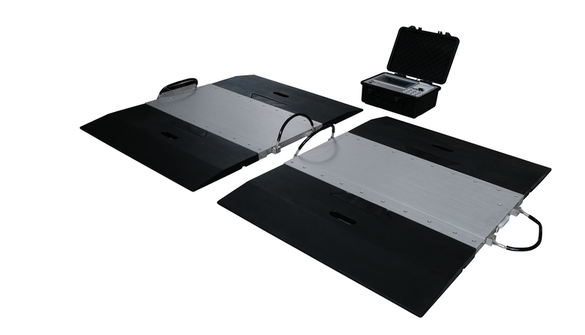

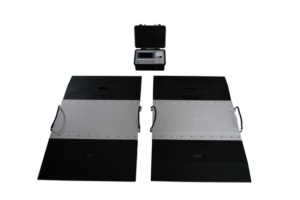

Portable Axle Scale
Streamline your vehicle weighing operations with our heavy-duty Portable Axle Scale. Engineered for accuracy and durability, this scale allows for efficient weight verification of trucks, trailers, and heavy machinery without…
- Available capacities
- Per Axle: 5t ~ 30t
- Manufacturing options
- OEM / ODM
Select a view. Click the main image to enlarge.
A closer look at the product.
Review the construction and operating features for your application.
Product detail

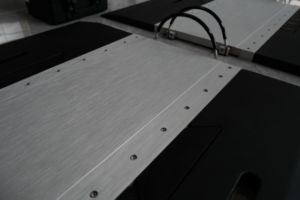

Rugged & Waterproof Design: Built with high-strength aluminum alloy and IP-rated protection to withstand heavy loads, dust, and moisture in tough outdoor conditions.
Product detail

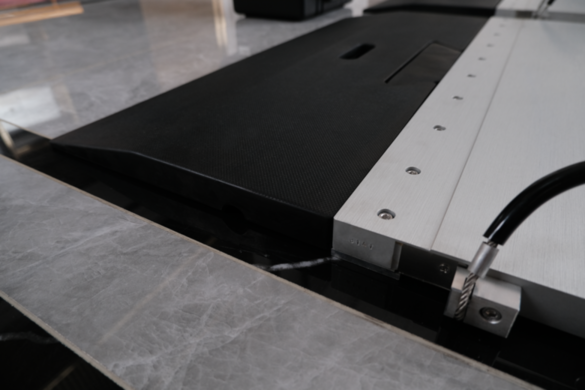

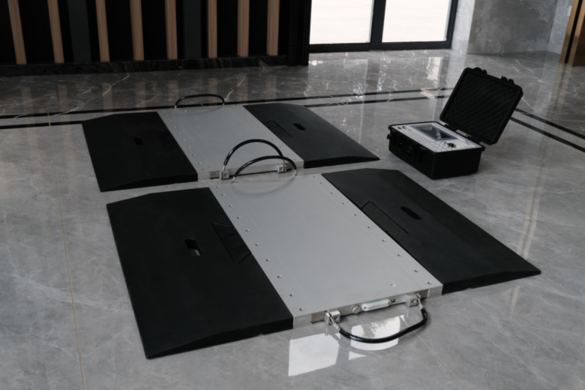

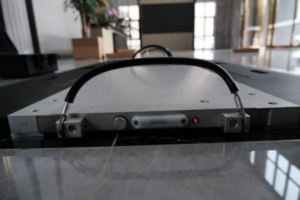

Easy Setup & Mobility: Features a compact, low-profile design with integrated ramps and handles, allowing for quick deployment and easy transport in a standard vehicle.
For your daily workflowTraffic LogisticsWarehouse WeighingCheck Weighing
Configure your equipment
Choose your configuration.
Select the requirements you would like to discuss. Add dimensions, quantity and working conditions to your inquiry.
Final capacity, dimensions and component selection are confirmed together for your application.
Select your requirements above.
Add to My Inquiry HENER product catalogueExplore the complete product range · PDF| Max Capability(Single Axle) | 5t / 10t / 15t / 20t / 30t |
|---|---|
| Pad Dimension | 700*430*30mm / 800*430*30mm |
| Ramp Dimension | 700*350mm / 800*350mm |
| Precision | Static ±0.05% / Dynastic ±2.00% |

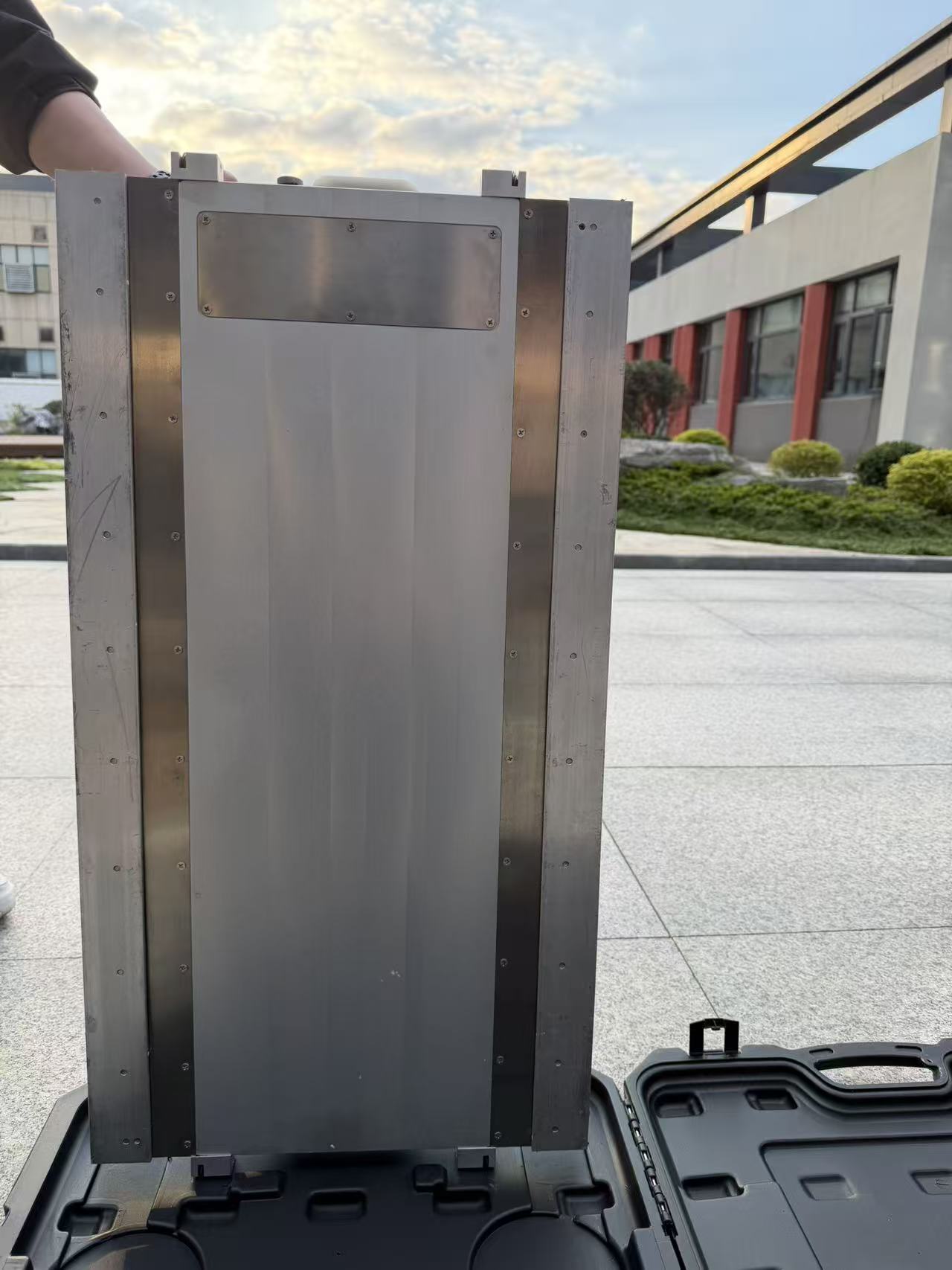

| Load Cell Structure | Pad = Load Cell (Aerospace-Grade Aluminum) |
| Cable Length | 8m / 10m / Customize |
| Division | 0.5/1.0/2.0/5.0/10/20/50 kg |
| Inspecting Speed | ≤10km/h on average |
| Work Temperature | -45℃ ~ +70℃ |
Final dimensions, functions and component selection depend on the application and ordered configuration.
Complete the weighing system.
Explore indicators and load cells for your equipment. Confirm the complete combination for your application.

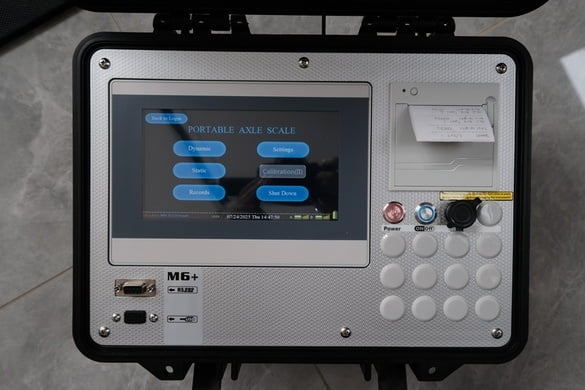

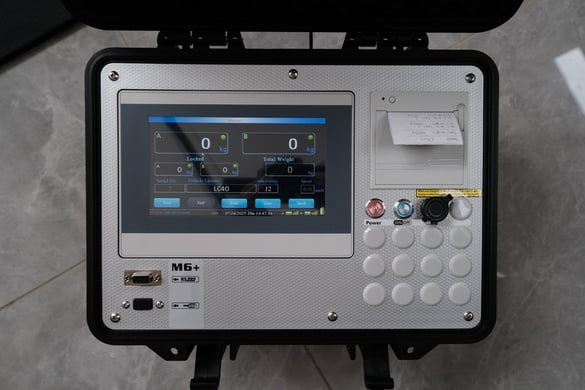

Weighing indicators
Display, operation and data output.
An indicator matched to your workflow.
Tell us your display, weighing function and connection requirements so we can discuss a suitable indicator.
Discuss Indicator SelectionLoad cells
The sensing components of your scale.
A load cell matched to your application.
Share the capacity, mounting arrangement and operating environment. We can help identify an appropriate load cell.
Discuss Load Cell SelectionFinal component selection depends on capacity, mounting, signal type and the ordered configuration.
