HM9B ZEMIC Double-Ended Shear Beam Load Cell
Model: HM9B
Double-Ended Shear Beam Load Cell
10 / 20 / 25 / 30 / 40 / 40tLE / 50 t
Rated Capacity
OIML R60 C3
Accuracy Class
150% F.S
Safe Overload

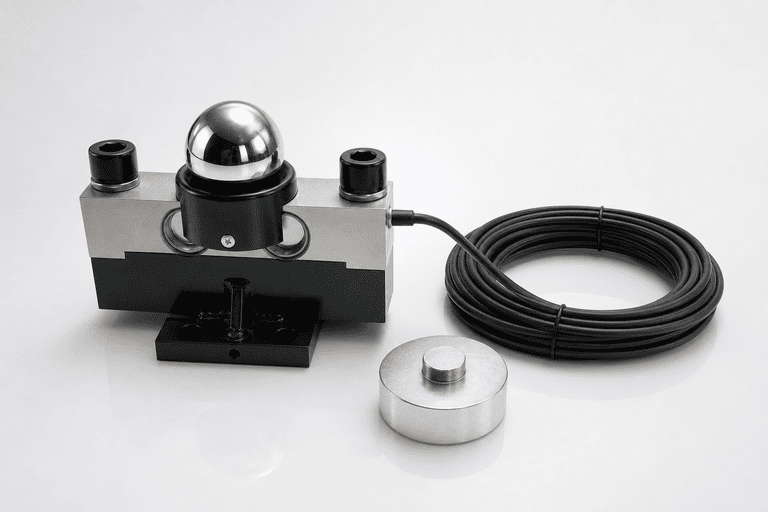

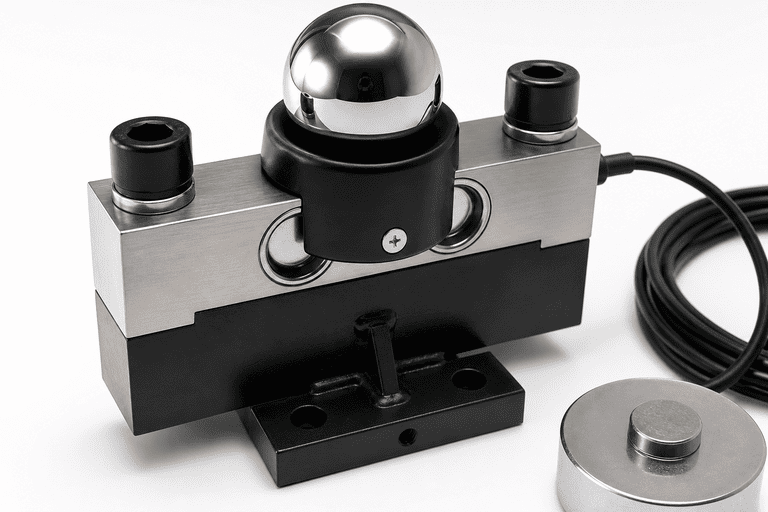

HM9B is a ZEMIC double-ended shear beam load cell for truck scales and heavy-duty electronic weighing systems. It uses an alloy steel, nickel-plated structure with IP68 protection and OIML C3 approval.
Key Features
- Double-ended shear beam; compression loading; IP68 protection; OIML C3 approval; truck scale application.
Applications
Truck Scale
Technical Specifications
Rated Capacity
10 / 20 / 25 / 30 / 40 / 40tLE / 50 t
Accuracy Class
OIML R60 C3
Rated Output
1.8-2.4 mV/V depending on capacity
Combined Error
<= +/-0.020% F.S
Creep
<= +/-0.02% F.S / 30 min
Temperature Effect
Output/zero <= +/-0.02% F.S / 10℃
Temperature Range
Compensated -10 to +40℃; operating -35 to +70℃
Safe Overload
150% F.S
Ultimate Overload
300% F.S
Excitation Voltage
5-12 VDC recommended; 18 VDC max
Protection Class
IP68
Material
Alloy Steel, Nickel-plated
Cable
4-wire shielded cable, 6.2 mm dia.; 12 m standard
Wiring / Interface
4-wire: Exc+ red, Exc- black, Sig+ green, Sig- white, shield transparent
Dimensions
240 mm * 135 mm * 195 mm<br /> 240 mm * 135 mm * 225 mm<br /> 340 mm * 160 mm * 267 mm
Compatible Scale Systems
This load cell is designed to integrate seamlessly with the following weighing systems.
