- Animal-Friendly Low Profile: The scale features an extremely low platform height (approx. 3 inches), making it easy for cattle, hogs, sheep, and goats to step onto the surface without hesitation or the need for steep, intimidating ramps.
- Dynamic Weighing Stability: The structural frame is designed to rigid industrial standards to minimize flexing and vibration, ensuring that the movement of restless animals does not compromise the accuracy or repeatability of the weight reading.
- Portability & Versatility: Designed with mobility in mind, the HR-LS often includes integrated lifting handles or easy-access points, allowing the scale to be moved easily between barns, pens, or exhibition sites for flexible usage.

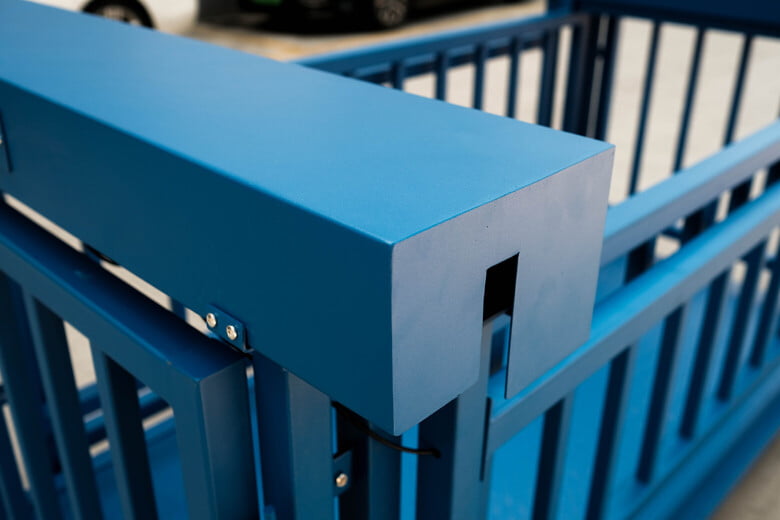

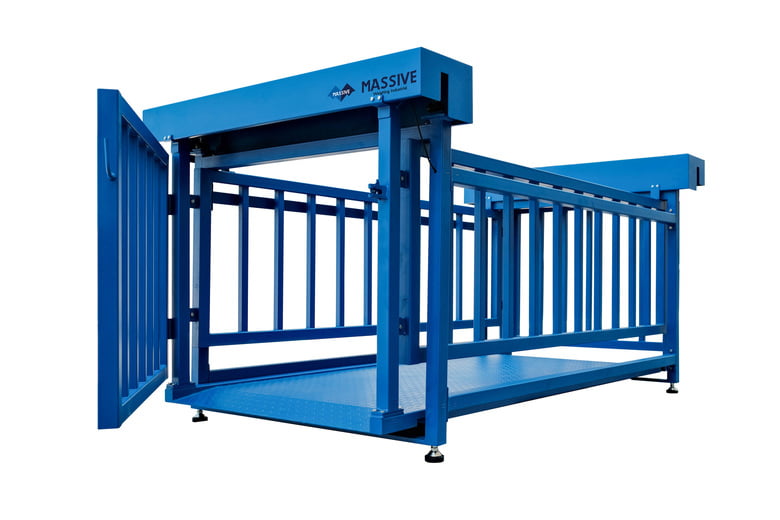

HR-LS Livestock Scale
Model Number
HR-LS
Capacity
500KG ~ 3000KG
Application Scenarios
Food Processing, Warehouse Weighing, Check Weighing
OEM/ODM Support
OEM/ODM Supported
Need Customization?
We offer full OEM/ODM services with 22 years of manufacturing expertise. Contact us to discuss your specific requirements.
Product Details
The HR-LS Livestock Scale is a heavy-duty weighing solution engineered specifically to handle the unpredictable nature of weighing live animals. Designed for versatility and safety, this scale is ideal for 4-H clubs, veterinary clinics, smaller production farms, and exhibition fairgrounds. The HR-LS distinguishes itself with a low-to-the-ground profile that encourages livestock to step on calmly, reducing animal stress and the risk of injury. Built with a rugged structural steel channel frame, it can withstand the dynamic loads caused by shifting animals. When paired with a compatible indicator featuring “Animal Weigh” or “Hold” functionality, the HR-LS delivers stable, accurate readings even when the animal is in motion, ensuring you get the right weight quickly and efficiently.
Technical Specifications
| Parameter | Value |
|---|---|
| Capacity Range | 500KG / 1000KG / 2000KG / 3000KG |
| Platform Size(mm) | 1000x2000 / 1200x2400 / 1500x3000 / Custom_size |
| Structure Material | Carbon Steel with Anti-rust Coating |

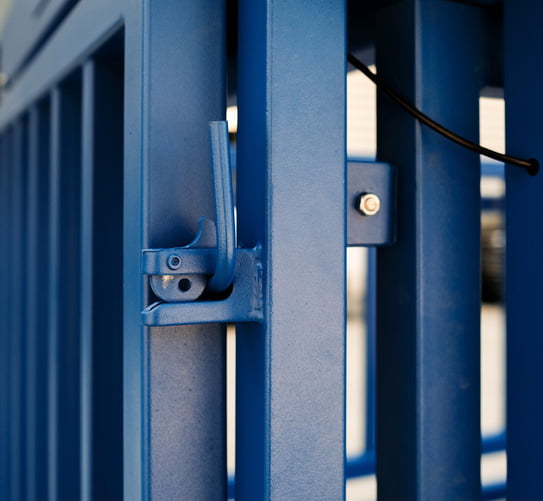

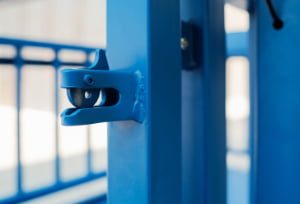

| Front Gate Options | Swing Gate / Sliding Gate |
| Rear Gate Options | Swing Gate / Sliding Gate |
| Ramp Options | No Ramps / Single Ramp / Ramps on Both Sides |
| Division Accuracy | 200g / 500g / 1kg (based on capacity) |
| Accuracy Class | Class III (OIML R76 compliant) |
| Power Supply | AC 220V + Built-in Rechargeable Battery (6V/4Ah or 12V/7Ah) |
| Anti-shock Function | Smart Filtering for Animal Movement |
| Operating Temperature | -10°C to 40°C |
| Humidity | ≤ 85% RH Suitable for outdoor and indoor use |
