- Corrosion-Resistant Durability: The concrete deck is immune to rust and chemical corrosion, offering a significantly longer lifespan in wet, salty, or corrosive industrial environments compared to steel decks.
- High Stability & Accuracy: The immense mass of the concrete platform prevents bouncing and absorbs vibrations from moving trucks, resulting in faster stabilization and highly precise weight readings.
- Slip-Resistant Surface: The textured concrete finish provides excellent traction for vehicles in rain, mud, or snow, enhancing driver safety and preventing skidding during entry and exit.

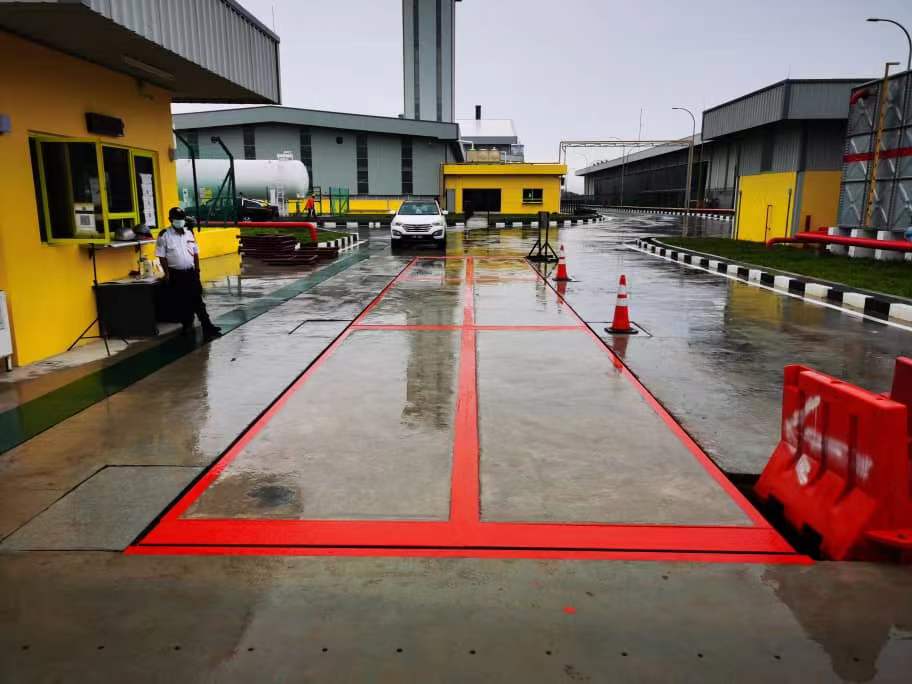

Concrete Weighbridge
Model Number
SCS-C
Capacity
Max: 200T
Application Scenarios
Traffic Logistics, Warehouse Weighing, Check Weighing, Vehicle Weighing, Railway Weighing, Onboard Weighing, Mining & Aggregates, Waste & Recycling
Need Customization?
We offer full OEM/ODM services with 22 years of manufacturing expertise. Contact us to discuss your specific requirements.
Product Details

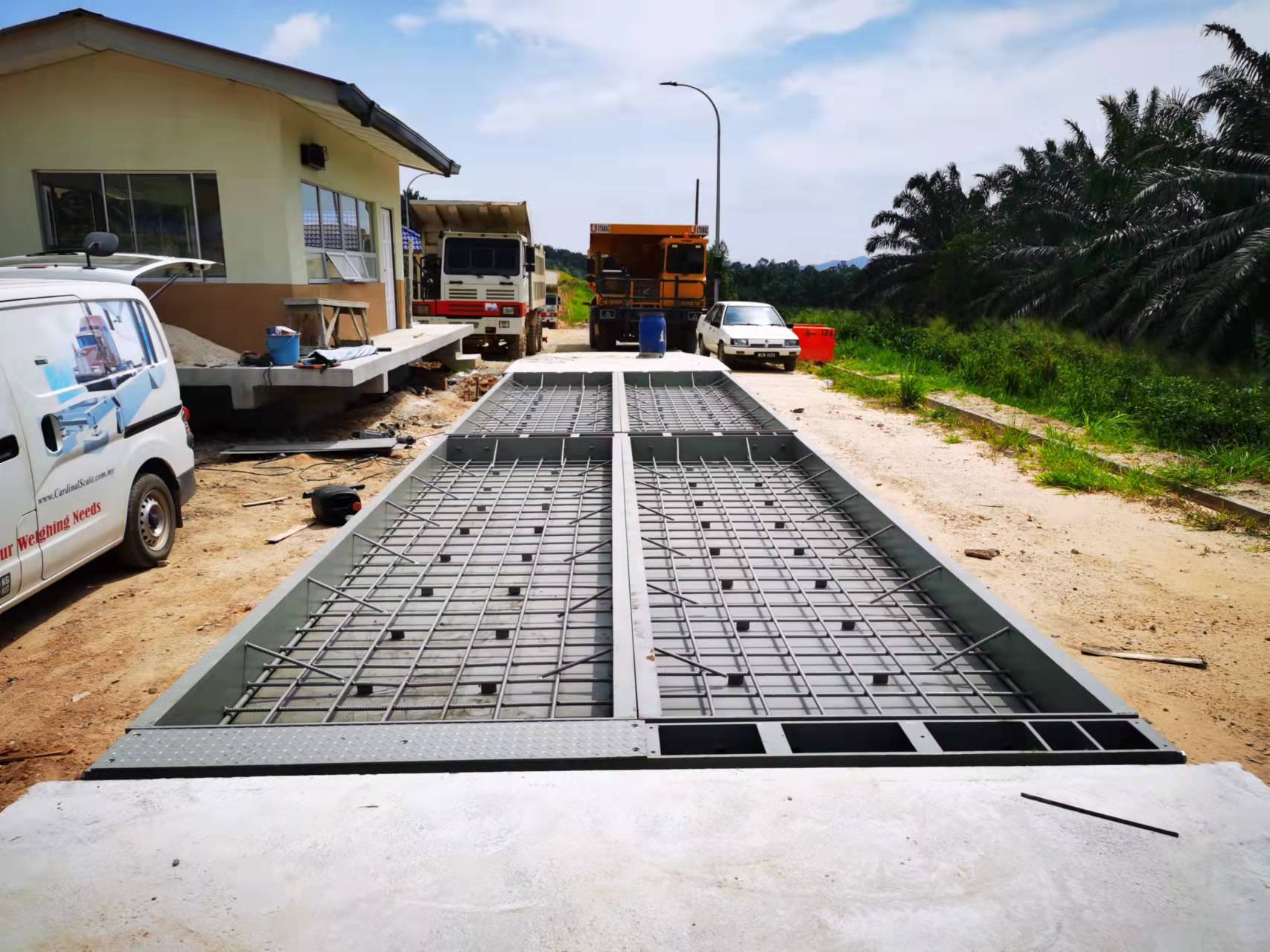

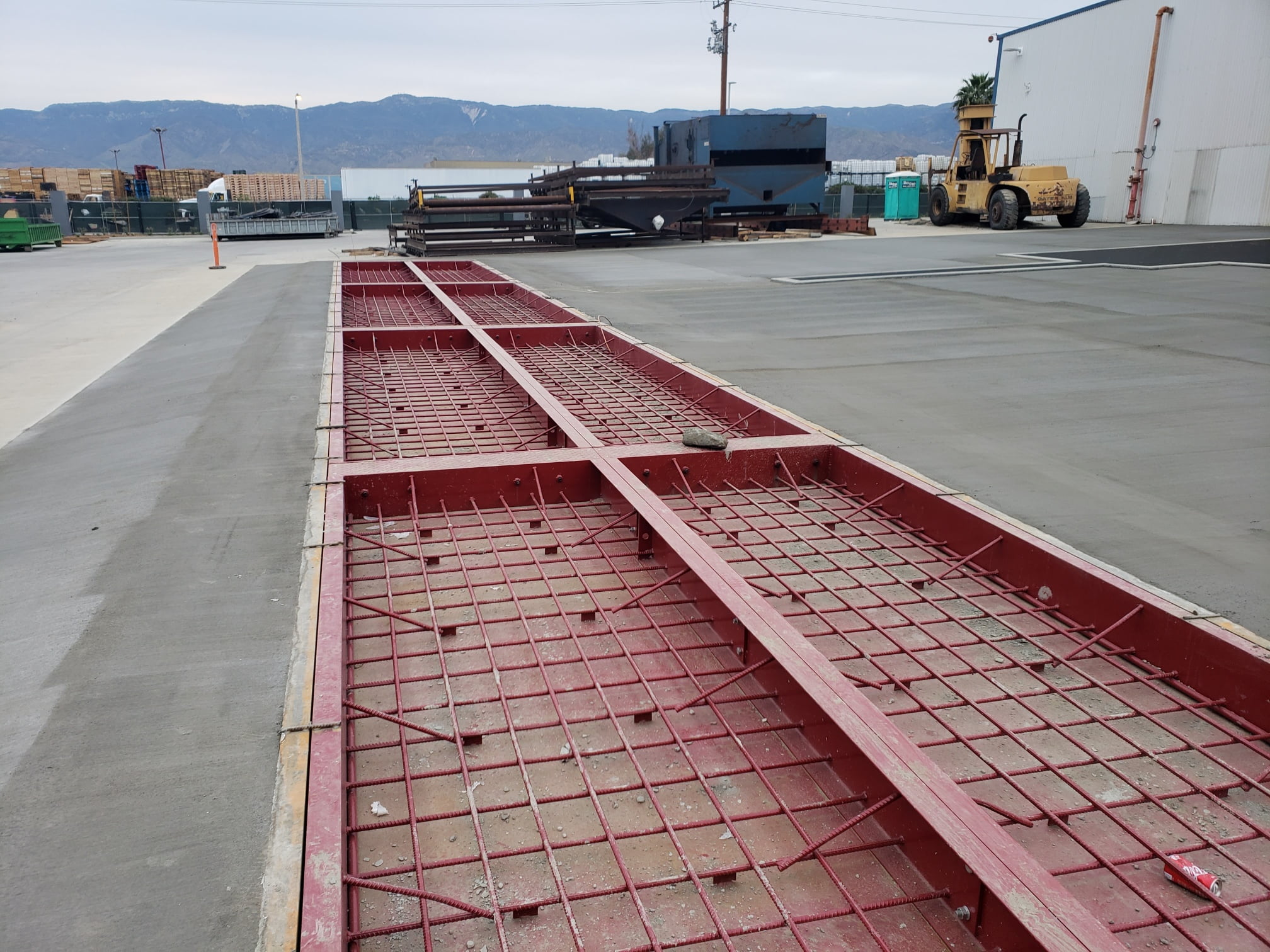

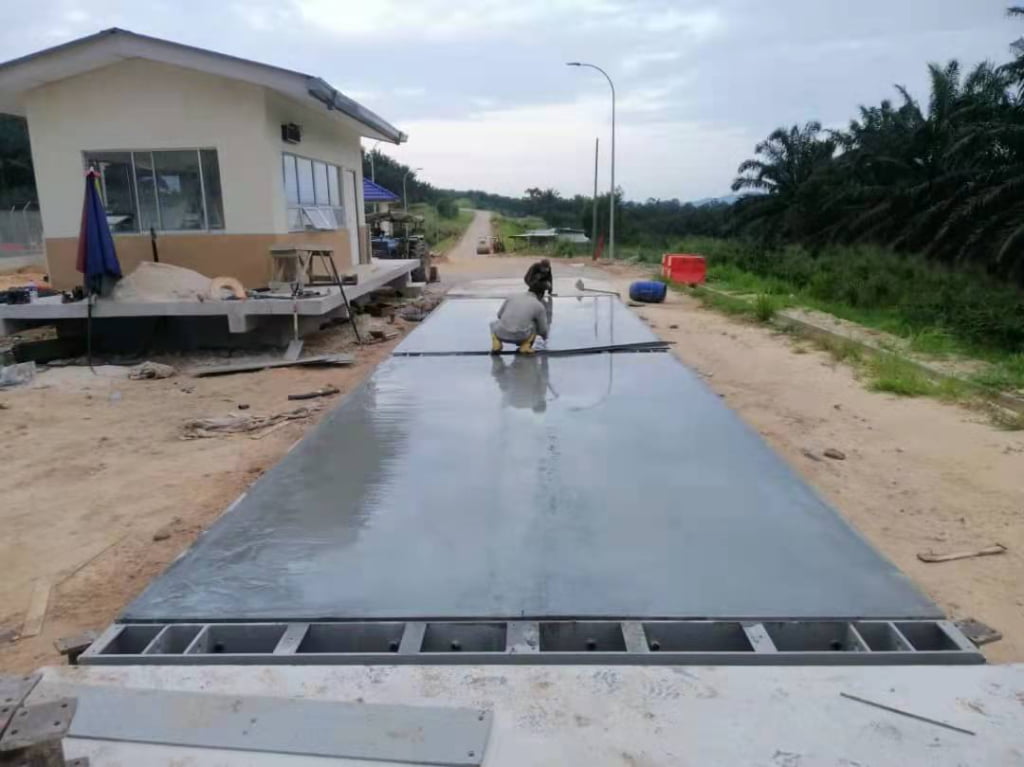

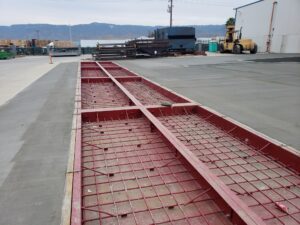

Built for longevity and extreme stability, our Concrete Weighbridge is the definitive solution for high-volume, heavy-duty weighing applications. Unlike all-steel decks, the concrete platform acts as a massive, rigid structure that eliminates deck deflection and minimizes wear and tear over time. This heavy mass naturally dampens vibrations and resists rust and corrosion, making it the superior choice for coastal areas, chemical plants, or sites exposed to harsh weather. Once poured and cured, this weighbridge provides a practically indestructible weighing surface that requires minimal maintenance, ensuring consistent accuracy for decades of operation.
Technical Specifications
| Parameter | Value |
|---|---|
| Max Capacity | 20t~200t |
| Material | Q235 Steel Frame |
| Painting | Anti Rust and Anti-Corrosion |
| Width(m) | 2/3/3.4/Customize |
| Length(m) | 4/7/9/10/12/14/16/18/21/24/Customize |
| Division Value | 10/20/50kg |
| Sensor Capacity | 10/20//30/40t |
| Load Cell Type | Analog Load Cell / Digital Load Cell |
| Load Cell Brand | KELI/ ZEMIC/ HENER |
| Accuracy | OIML III |
| Power | 220V/50Hz |
| Work Temperature | -35℃ ~ +70℃ |
| Relative Humidity | <95% |
| Safe Overloading | 120% |
