Mobile industrial weighing for warehouse workflows

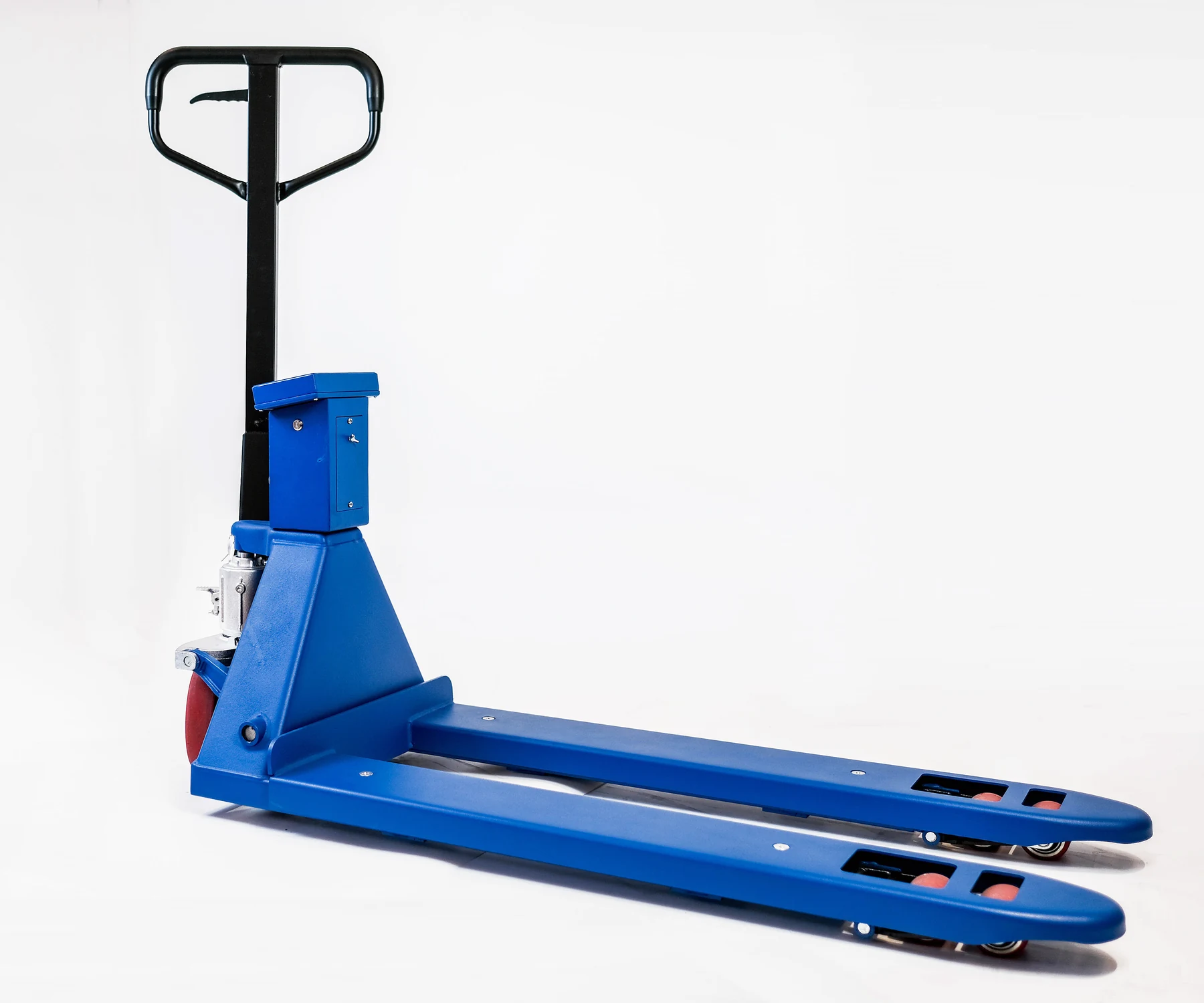

Pallet Truck Scale. Weight without the detour.
Move and weigh the pallet in one handling step. HENER configures pallet truck scales around your load, pallet entry, floor, indicator, data and export requirements.
B2B orders start from 4 units. Standard export packing is 4 or 6 units per wooden crate; 2-unit crating is available by arrangement and does not reduce the MOQ.
The scale should fit the job before it fits the quotation.
Capacity is only one decision. Pallet geometry, load distribution, floor condition, weighing frequency, display and data handling determine whether the proposed configuration belongs in your operation.
Start with the pallet and the complete loaded weight.
Send the pallet entry direction, fork-pocket dimensions and the maximum weight of pallet plus goods.
Pallet entry
Confirm fork-pocket width, direction of entry, lowered-height clearance and turning space.
Loaded weight
Use the maximum complete load to compare the 2000, 2500 and 3000 kg options.
Floor and wheels
Describe joints, ramps, debris and travel distance before selecting PU, plastic or nylon wheels.
Display and data
Tell us whether the operator needs a simple reading, printing or a confirmed data-output workflow.
Configure the truck around the job.
Scan the five decisions below, then send the real pallet, load and workflow conditions that determine the final quoted configuration.
Fit the pallet entry first.
Confirm entry direction, fork-pocket clearance, fork length and lowered height against the real pallet.
- Narrow fork560 mm
- Wide fork690 mm
Use the complete pallet weight.
2000, 2500 or 3000 kg rated load; 0.5 kg division.
Match the material to the environment.
Carbon steel or stainless steel; 4 mm, 6 mm or customised plate thickness.
Define the reading and data workflow.
HR-T10, HR-T8, HR2208, HR2308, A12E, A23P, C23 or customer-supplied.
Plan power, temperature and wheels.
Rechargeable battery; −10°C to +40°C; PU, plastic or nylon wheels.
Specifications at a glance.
- Model
- HC-PSB / HC-PSR / HC-PSY / HR-SS / HR-EE
- Rated load
- 2000 / 2500 / 3000 kg
- Fork width
- 560 mm narrow fork or 690 mm wide fork
- Division
- 0.5 kg
- Material
- Carbon steel / stainless steel
- Plate thickness
- 4 mm / 6 mm / customised
- Power
- Rechargeable battery; AC 187–242 V; DC 6 V / 4 Ah
- Temperature
- −10°C to +40°C
- Indicator
- HR-T10 / HR-T8 / HR2208 / HR2308 / A12E / A23P / C23 / customer-supplied
- Wheel options
- PU / plastic / nylon
One route. Four decisions that keep the weight useful.
The value is not simply putting a display on a pallet truck. The pallet must enter, the load must remain suitable, the operator must obtain a usable reading and the final unit must arrive protected.
Send Your Workflow
Application illustration
Enter the pallet correctly.
Fork spacing, pocket clearance and entry direction are checked before the specification is finalised. This visual is an application illustration, not customer or factory evidence.

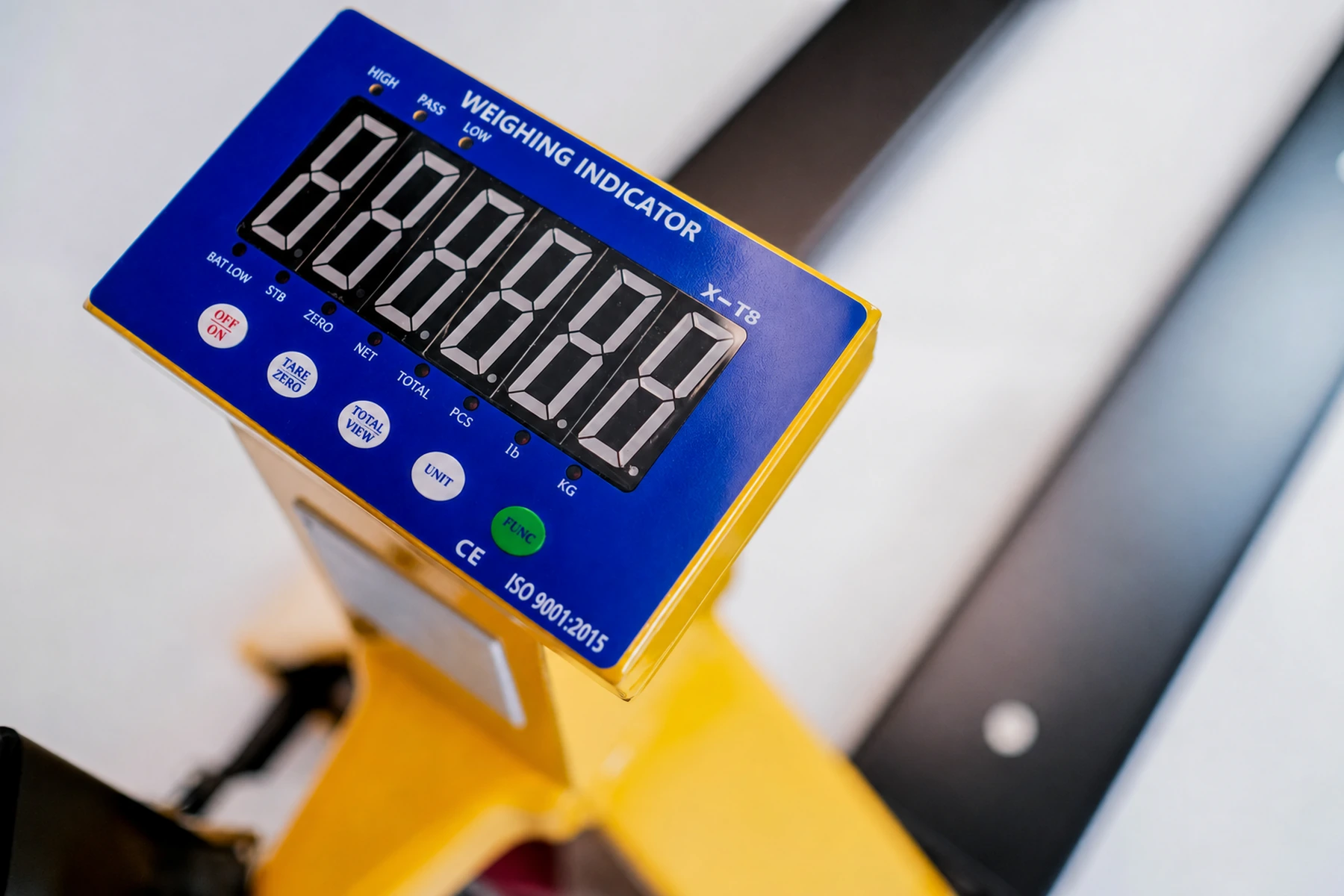

Authentic component crop
Make the reading usable.
Confirm the display, operator workflow and any printing or data requirement rather than assuming every indicator supports the same functions.

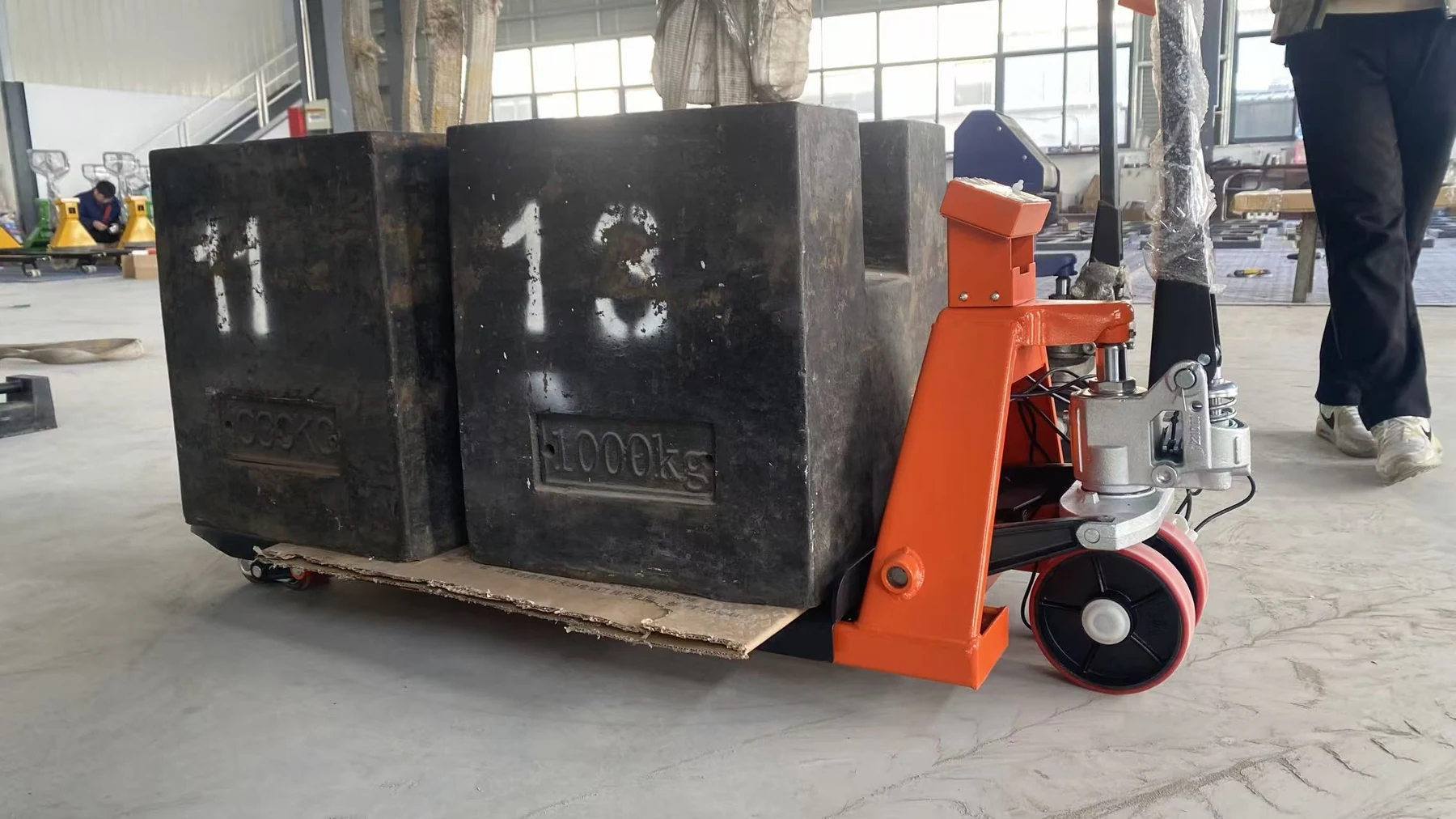

Authentic factory evidence
Ask how the unit is checked.
This authentic image records one calibration load-check moment with visible reference weights. It does not by itself prove repeatability or off-centre performance for every model.
Authentic packing evidence
Confirm packing before dispatch.
Standard export packing is 4 or 6 units per wooden crate. Two-unit crating is occasional and by arrangement; it does not reduce the 4-unit order MOQ.
Factory evidence should answer a buyer’s next question.
HENER is an industrial weighing equipment manufacturer and weighing data solution provider based in Changzhou, China. For pallet truck scale projects, the useful proof is visible production, a documented check and a credible packing plan.
Built for B2B orders, packed for the agreed configuration.
Share the intended quantity early. HENER does not accept one- or two-unit retail or sample orders for this product. Crate quantity is a packing decision, not a reduced order minimum.
Send the job. Get a configuration worth comparing.
For distributors, industrial end users and project integrators: send the operating facts that determine product fit, not only a target price.
- Planned order quantity and destination market
- Pallet type, entry direction and fork-pocket dimensions
- Maximum complete load, floor condition and weighing frequency
- Material, indicator, printing or data-output requirement
